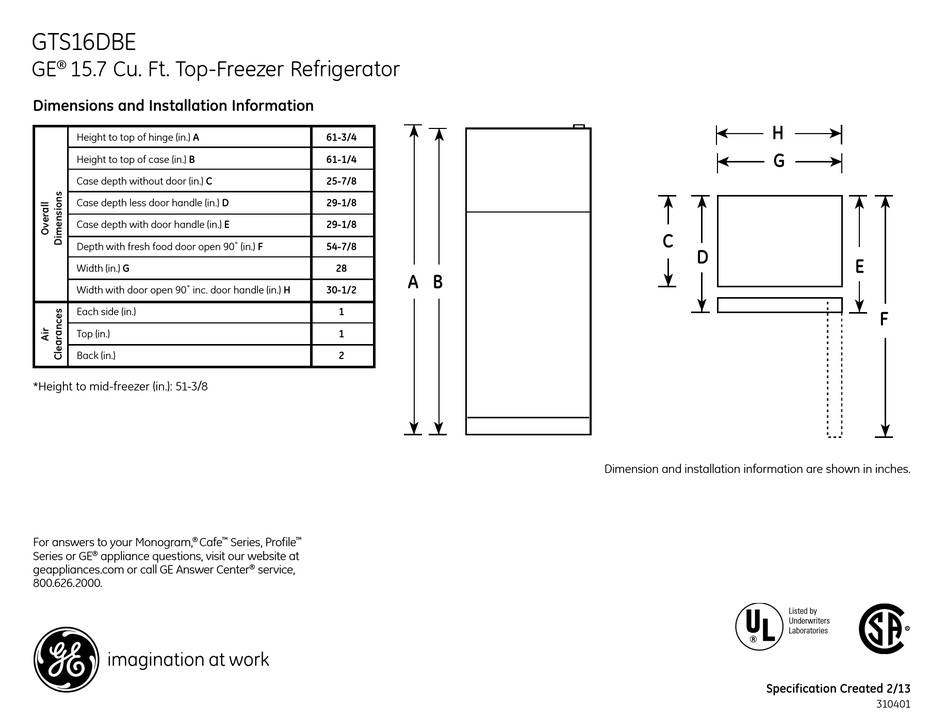

GTS16DBE
GE
15.7 Cu. Ft. Top-Freezer Refrigerator
®
Dimensions and Installation Information
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ inc. door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
* Height to mid-freezer (in.): 51-3/8
For answers to your Monogram,
®
Cafe
Series or GE
®
appliance questions, visit our website at
geappliances.com or call GE Answer Center
800.626.2000.
61-3/4
61-1/4
25-7/8
29-1/8
29-1/8
54-7/8
28
30-1/2
1
1
2
Series, Profile
service,
®
Front View
A
B
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ inc. door handle (in.) H
Each side (in.)

Top View

H
G
C
D
Dimension and installation information are shown in inches.
Specification Created 2/13
E
F
61-3/4
61-1/4
25-7/8
29-1/8
Listed by
Underwriters
29-1/8
Laboratories
54-7/8
28
30-1/2
310401
1
