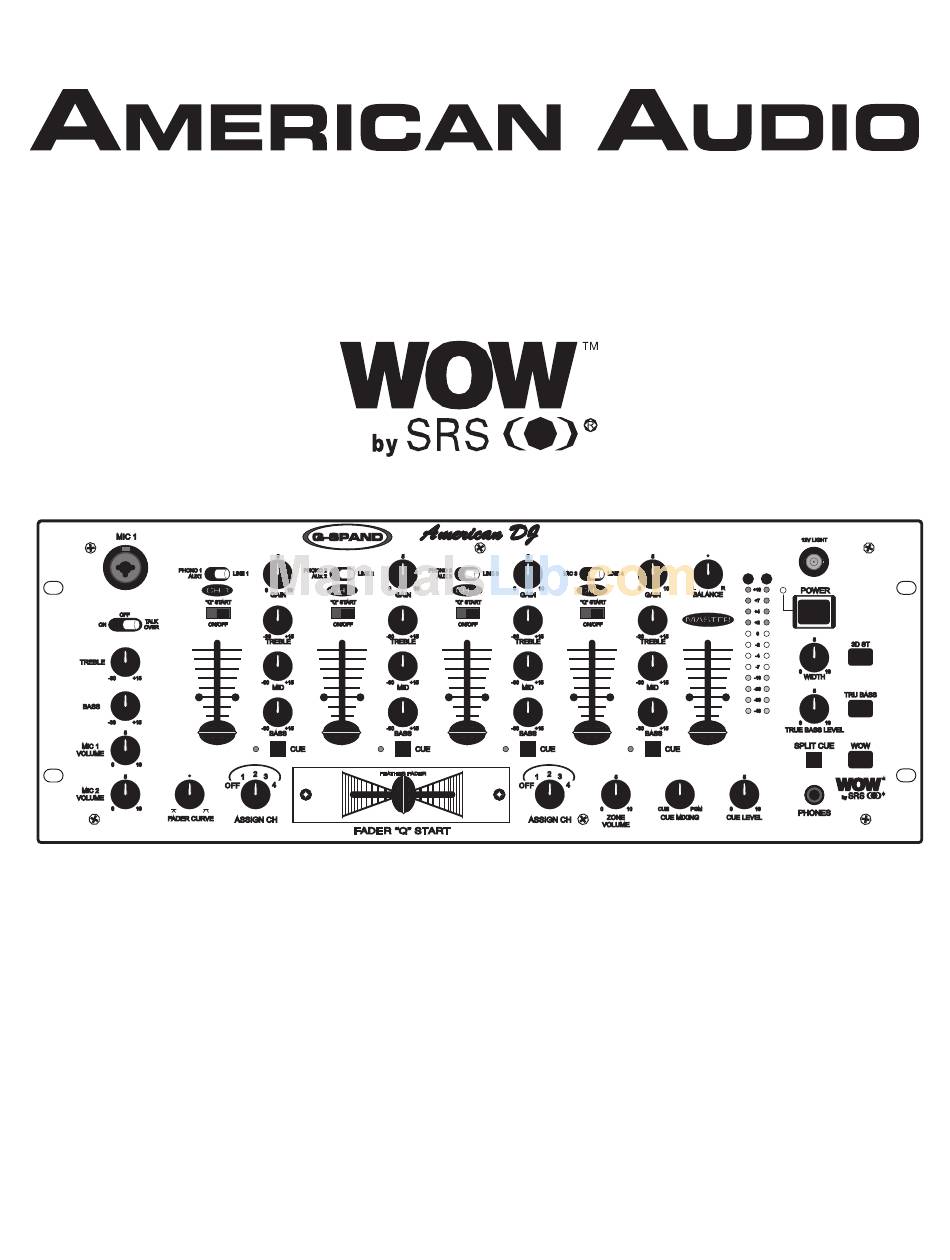

- Page 1 Q-SPAND ™ Featuring: User Guide and Reference Manual AMERICAN AUDIO 4295 Charter Street Los Angeles Ca. 90058 www.americandj.com Rev 11/01...
-
Page 2: Setup Precautions
Caution! There are no user serviceable parts inside this mixer. Do not attempt any repairs yourself, without being instructed to do so by an authorized American Audio service technician. Doing so will void your manufactures warranty. In the unlikely event your mixer may require service, please contact American Audio customer support. -
Page 3: Safety Precautions
• Master Output Balance Control • Split Cue Monitoring • Cue Mixing • Independent ZONE Output Level • 12v Gooseneck Light Option • Protective Main Power Button - www.americandj.com - Q-SPAND™ Instruction Manual Page 3 ® SAFETY PRECAUTIONS MAIN FEATURES... -
Page 4: Quick Start Instructions
WOW. The processing of the spatial cues surrounds the listener with a holographic representation of the performance. In addition bass becomes deep, rich and controlled through means that don’t require a speaker with a large woofer or cabinet size. American Audio - www.americandj.com - Q-SPAND™ Instruction Manual Page 4 © ®... - Page 5 When the crossfader is pushed to the far right position, playback on CD player 2 will begin, and CD player 1 will return to the cue position. Refer to your American Audio CD player user manual for setting CUE POINTS. Turn the ON/OFF SWITCH to the OFF position to disen- gaged “Q ”Start function and resume to a normal fader.
- Page 6 Also be sure your amplifi er(s) is tuned off. Remember to avoid damaging pops, mixer on fi rst and turned off last. 14. BNC JACK FOR GOOSENECK LAMP - This jack is used to connect an American Audio 12V DC gooseneck lamp.
- Page 7 24. ZONE LEVEL VOLUME OUTPUT CONTROL - This rotary knob is used to control the zone level volume. The zone level is not PFL, it is essentially a second master output volume with separate output volume control. American Audio - www.americandj.com - Q-SPAND™ Instruction Manual Page 7 © ®...
- Page 8 Be sure that the TRU BASS™ process will not color the midrange or create bass not present on recordings. This process will only defi ne any bass present on a recording. American Audio - www.americandj.com - Q-SPAND™ Instruction Manual Page 8 © ®...
- Page 9 37. PLAYER CONTROL - These jacks are used to control the “Q-Start” function between the mixer and a compatible American Audio CD Player. Input mini plugs from CD player controller into these jacks, input CD 1 into jack 1 and CD 2 into jack 2 and so on.
- Page 10 Input volume will be controlled by channel two Channel Fader (9). The channel Source Selector Switch (5) must be in the "Phono 2/Aux 2" position, to monitor any source connected to these jacks. American Audio - www.americandj.com - Q-SPAND™ Instruction Manual Page 10 © ®...
- Page 11 53. GND (GROUND TERMINAL) - Be sure to connect turntable ground leads to any of the three ground terminal. This will reduce the humming and popping noises associated with magnetic phono cartridges. American Audio - www.americandj.com - Q-SPAND™ Instruction Manual Page 11 © ®...
- Page 12 C A S S E T T E D E C K T U R N TA B L E T U R N TA B L E American Audio - www.americandj.com - Q-SPAND™ Instruction Manual Page 12 © ®...
- Page 13 10 feet. Using the balanced jacks will ensure a clean signal through out the entire audio system. American Audio - www.americandj.com - Q-SPAND™ Instruction Manual Page 13 © ®...
-
Page 14: Replacing The Crossfader
Q-SPAND™ The crossfader is “Hot Swappable” which means it may be replaced at any time, even when power is applied. Only replace with American Audio Part Feather Fader Plus. Replacing with any other model fader may seriously damage your mixer. -
Page 15: Year Limited Warranty
Q-SPAND™ Warranty The Q-SPAND™ carries a two year limited warranty. We recommend you fill out the enclosed warranty card to validate your purchase. All returned service items whether under warranty or not, must be freight pre-paid and accompany a R.A. (return authorization) number. If the mixer is under warranty, you must provide a proof of purchase invoice. - Page 16 < 40dB @ 1Khz, Between left and right channels +12 ±1dB,-27 ±2 dB at 70KHz +12 ±1dB,-22 ±2 dB at 1KHz +13 ±1dB,-14 ±2 dB at 13KHz +12 /-17 ±2dB, at 70KHz +12 /-22 ±2dB, at 13KHz - www.americandj.com - Q-SPAND™ Instruction Manual Page 16 ® Specifications...
- Page 17 ©American Audio Supply American Audio World Headquarters: 4295 Charter Street Los Angeles, CA 90058 USA Tel: 323-582-2650 Fax: 323-582-2610 Web: www.americandj.com E-mail: info@americandj.com SRS, WOW and the symbol are trademarks of SRS Labs, Inc. SRS technology is incorporated under license from SRS Labs, Inc.
