Amana A8RXNGFB Dimension Manual

PRODUCT MODEL NUMBERS
A8RXNGFB
A8RXNGFX
A8RXEGFX
Electrical: A 115-volt, 60-Hz, AC-only, 15- or
20-amp fused, grounded electrical supply is
required. It is recommended that a separate circuit
serving only your refrigerator be provided. Use an
outlet that cannot be turned off by a switch. Do not
use an extension cord.
Water: A cold water supply with water pressure
between 30 and 120 psi (207 and 827 kPa) is
required to operate ice maker and water dispenser.
If you have questions about your water pressure,
call a licensed, qualified plumber.
IMPORTANT: The pressure of the water coming
out of a reverse osmosis system going to the
water inlet valve of the refrigerator needs to be
between 30 and 120 psi (207 and 827 kPa).
Reverse Osmosis Water Supply: If a reverse
osmosis water filtration system is connected to
your cold water supply, the water pressure to the
reverse osmosis system needs to be a minimum
of 40 to 60 psi (276 to 414 kPa).
LOCATION REQUIREMENTS
" (7.5 cm)
3
1 / " (1.25 cm)
2
2" (5.08 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Top Mount Refrigerator

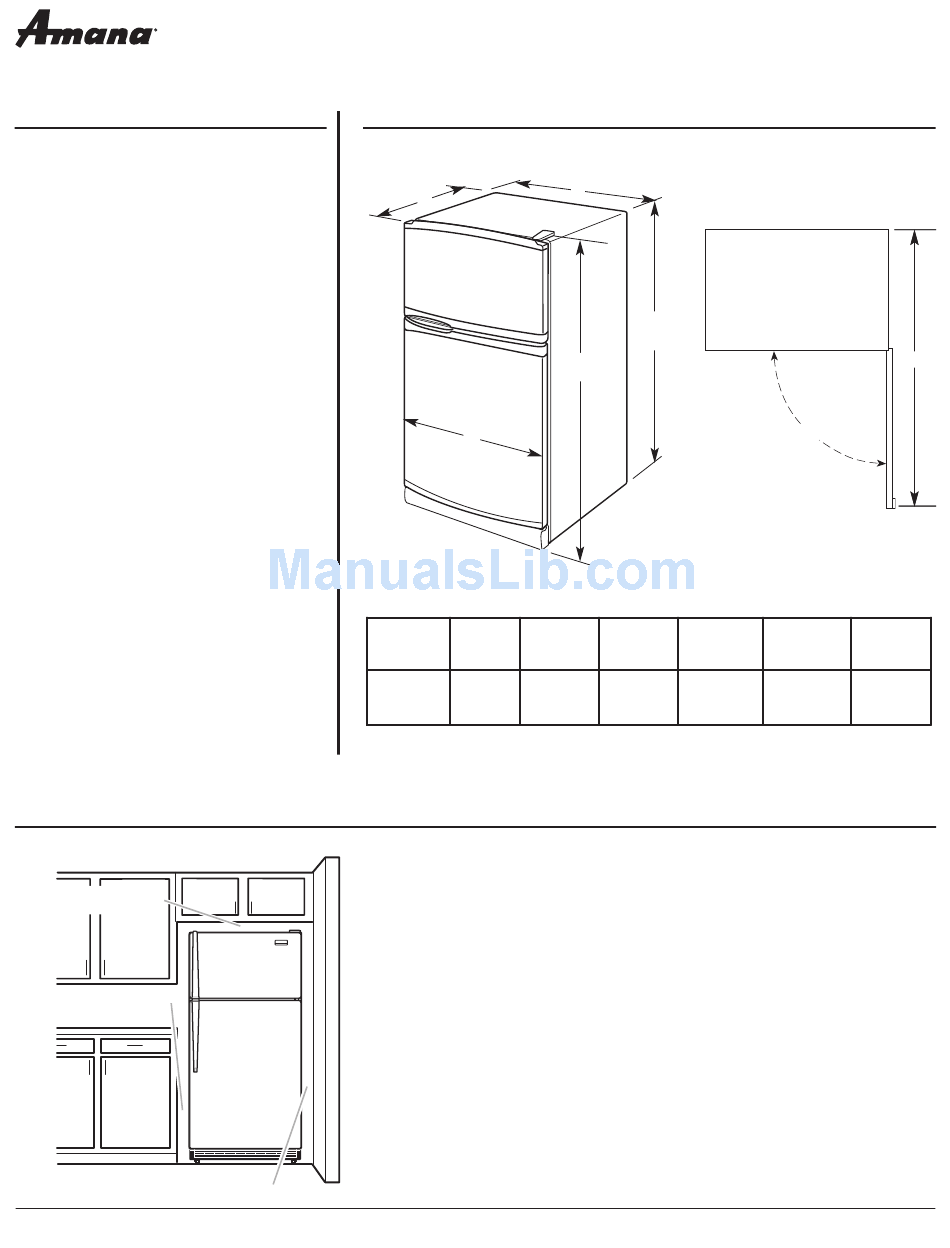

PRODUCT DIMENSIONS
Model Size
A
overall
C
Depth Cab. Width
"A" "B"
28"
30 1 ⁄ "
8
18 cu. ft.
(71.1 cm)
(76.5 cm)
To ensure proper ventilation for your refrigerator, allow for a
each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator
top. Allow at least 1" (25.40 mm) between back of cabinet and the wall. If your
refrigerator has an ice maker, make sure you leave some extra space at the back for
the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 2" (5.08 cm)
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
NOTE: It is recommended that you do not install the refrigerator near an oven,
radiator, or other heat source, nor in a location where the temperature will fall below
55°F (13°C).
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
B
D
top of
cabinet
E
Door Width Cab. Height
"C" "D"
28" 67 3 ⁄ "
8
(71.1 cm) (171.0 cm)
F F
90˚
Overall Depth Door
Height Open 90°
"E" "F"
68" 54 3 ⁄ "
8
(173.0 cm) (138.1 cm)
1 ⁄ " (1.25 cm) space on
2
Ref. W10214129A
1/31/13
