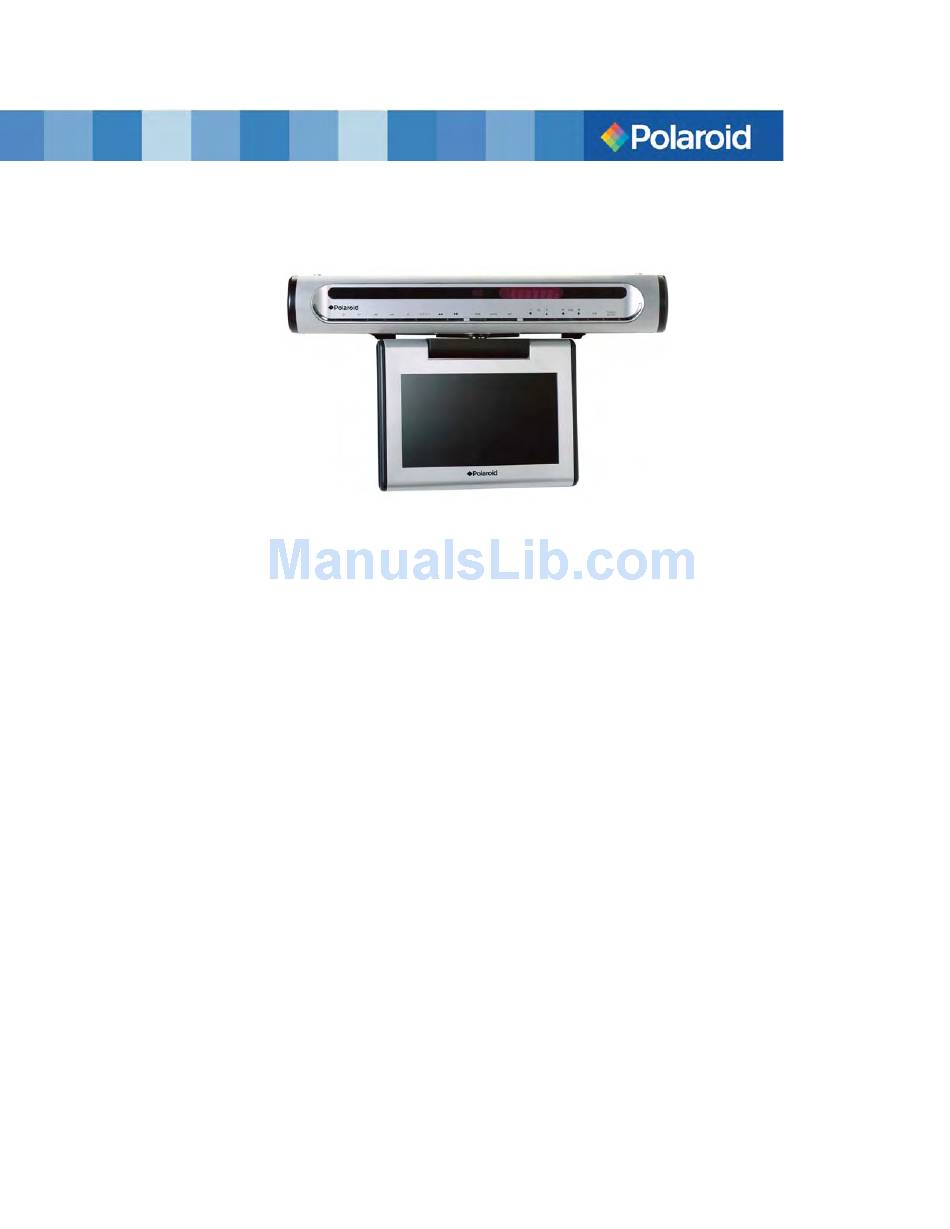

- Page 1 7” Under-the-Cabinet LCD TV FCM-0710 20060209...
-
Page 2: Important Safety Instructions
Important Safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USE-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage”... - Page 3 Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Maintain well ventilated conditions around the product, do not put product on bed, sofa or anything that blocks ventilation.
-
Page 4: Fcc Notice
FCC Notice NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Table Of Contents
Table of Contents Important Safety Instructions--------------------------------------------------------------------- FCC Notice--------------------------------------------------------------------------------------------- Table of Contents ------------------------------------------------------------------------------------ Characteristic Features ---------------------------------------------------------------------------- Front Panel --------------------------------------------------------------------------------------------- Rear Panel and Display Panel---------------------------------------------------------------------- Remote Control --------------------------------------------------------------------------------------- Preparation ------------------------------------------------------------------------------------------- Using the Remote Control------------------------------------------------------------------------- System Connections -------------------------------------------------------------------------------- Connecting To External AV Signal Source ---------------------------------------------------- Connecting To TV Signal Input Source---------------------------------------------------------- Connecting To the Antenna ---------------------------------------------------------------------------------- Connecting To the Power Adapter ------------------------------------------------------------------------... -
Page 6: Characteristic Features
Characteristic Features This product incorporates Amplifier Function display, receiver radio Built-in 2x5w stereo amplifier with left function in one system. It is designed and right speakers. for convenient use in the kitchen. Switching Power Adapter Please refer to page 21 for the Automatically adapts to the voltage installation instructions. -
Page 7: Front Panel
Front Panel Front Panel Drawing POWER Button button Press to enter or exit the STANDBY Under radio mode, press once to fine mode. tune frequency backward. Press for about 1.5 seconds to search radio TV Button stations backward automatically. Press to enter TV receiving mode. Button FM Button Press to shift to FM signal input mode. - Page 8 Front Panel 15. ▲/CH+ 10. TIME Button Press to set the time when the time is Press to select items in the setup menu. displayed on the display panel. Use the Press to select channels or radio stations buttons select editing forward under TV or radio mode.
-
Page 9: Rear Panel And Display Panel
Rear Panel and display panel Rear Panel Drawing 1. ANT INPUT jack 4. Left/Right AUDIO input jack Connected to external antenna to Connection for audio input. receive the TV program in TV mode. 5. VIDEO input jack 2. FM 75Ωcoaxial antenna jack Connection for video input. -
Page 10: Remote Control
Remote Control Preparation Using Of Remote Control Refer to the drawing and remove the Point the remote control towards the empty battery receptacle. main unit when operating. The remote control works best at a distance less than 7m and at an angle of up to 60°to the front of the unit. - Page 11 Remote Control Remote Control Drawing 1. POWER Button 3. FM button Press access exit Press to shift to FM signal input mode. STANDBY mode. 4. AM button 2. TV Button Press to shift to AM signal input mode. Press to enter TV mode. - 11 -...
- Page 12 Remote Control 5. AV Button 12. MUTE button Press to shift to external AV input mode. Press to turn on/off the speaker output. The corresponding information will be 6. MENU /SET Button Press once to enter the PICTURE displayed on the display panel. setup menu.
-
Page 13: System Connections
System Connections • Do not connect the power cord until all other connections have been made. • Each time you restart the unit, it remembers the last function used. • Please make all the connections before installing the unit in the kitchen. Connecting To External AV Signal Source Connections should be made as follows: Connect the L/R audio cables according to the marks on the rear panel of the unit:... -
Page 14: Connecting To The Antenna
System Connections Connecting To Antenna Connect the supplied AM/FM antennas to listen to the radio. • In order to improve the signal, move AM loop antenna away from system and other equipment. • Extend FM antenna fully. • Keep the FM antenna as horizontal as possible after connection. •... -
Page 15: Connecting To The Power Adapter
System Connections Connecting To the Power Adapter This unit is powered via the switching power adapter (supplied). See the below figure for details: 1. Connect the AC adapter to jack marked with “DC 12V IN” on the rear panel of the unit. -
Page 16: Radio Function
Radio Function Radio Function Operation Press the FM or AM button to enter FM or AM radio mode. Then press the SEEK+/- button on the remote control or the button on the front panel for about 1.5 seconds to start searching forward/backward from the current frequency. Press the SEEK+/- button or button again to stop searching. -
Page 17: Tv Function
TV Function Basic Operation Connect the antenna to the antenna jack on the rear panel. After connecting the antenna, connect the power supply cord. If the unit is in standby mode, press the POWER button on the front panel to turn on the power. Press the TV button on the remote control or the front panel to shift to TV mode. -
Page 18: Tv Setup
TV Function TV SETUP SIGNAL CATV CHANNEL SKIP BLUE SCREEN FINE TUNING AUTO MEMORY ◄ PICTURE EXIT ► Use the ▼, ▲ buttons to select the item you want to set. Use the ►, ◄ buttons to select the item and enter it. First use the ▼, , then press the ►... -
Page 19: Timer Setup
TV Function SEARCHING CH：001 ◄ EXIT： The auto memory will take a few minutes. The unit will search channels from the lowest channel to the highest channel in the standard channel list. When tuning operations are complete the unit will exit and store the channels by sequence in the memory. - Page 20 TV Function Power off To set the playback end time of the signal source, use number buttons to input the desired time in sequence of hour, minute. Press the ►, ◄ direction buttons to shift between am and pm. When the playback of the signal source is over, the unit will enter standby mode.
-
Page 21: Av Function
AV Function AV Function The unit has an additional AV input so it can function as a monitor for a DVD unit, video cassette unit, satellite receiver, video game, etc. When an AV source is connected, press the AV button to enter external input AV mode. Picture Parameter Setup Press the MENU/SET button on the remote control or the TV/LCD SETUP button on the front panel once to enter PICTURE setup menu, and screen will display as shown:... -
Page 22: Installing The Unit In Kitchen
Installing the unit in Kitchen Note: Before installing the unit in the kitchen, please make all the connections. Installing the unit under a cabinet The unit may be installed in the kitchen with or without the spacers. The suggested mounting position of the unit is under a wall cabinet. See drawings below: NOTE: The dimensions of the unit: 3.1”H X 13.6”W X 11.2”D There should be at least 1.4”... - Page 23 Installing the unit in Kitchen Mark the position of the 4 holes by using the supplied paper template. Drill four holes with diameter of 1/3”. You can use the connecting steel panel to check the holes. If the cabinet door overhangs the shelf and obstructs the unit, adjust the unit or the shelf height for clearance.
-
Page 24: Troubleshooting
Troubleshooting PROBLEM CHECK ITEM • Make sure system connection is correct. • Make sure the unit is not under mute mode. • Press the MUTE button to turn on the speaker. There is no sound. • Make sure the volume is not adjusted to the lowest. •... -
Page 25: Specifications
Confidential unpublished works. 1992 -1997 Dolby Laboratories, Inc. All rights reserved. For service, support and warranty information, visit www.polaroid.com or in the US call 1-866-289-5168 and in Canada call 1-866-301-7922. “Polaroid” and “Polaroid Pixel” are registered trademarks of Polaroid Corporation, Waltham, MA USA.
