Polaroid FLM-1507 Manual

15 ” lcd television
Hide thumbs

Advertisement

Quick Links

15 " LCD Television FLM-1507
20050829
1

Advertisement

loading

  Also See for Polaroid FLM-1507

  Related Manuals for Polaroid FLM-1507

  Summary of Contents for Polaroid FLM-1507

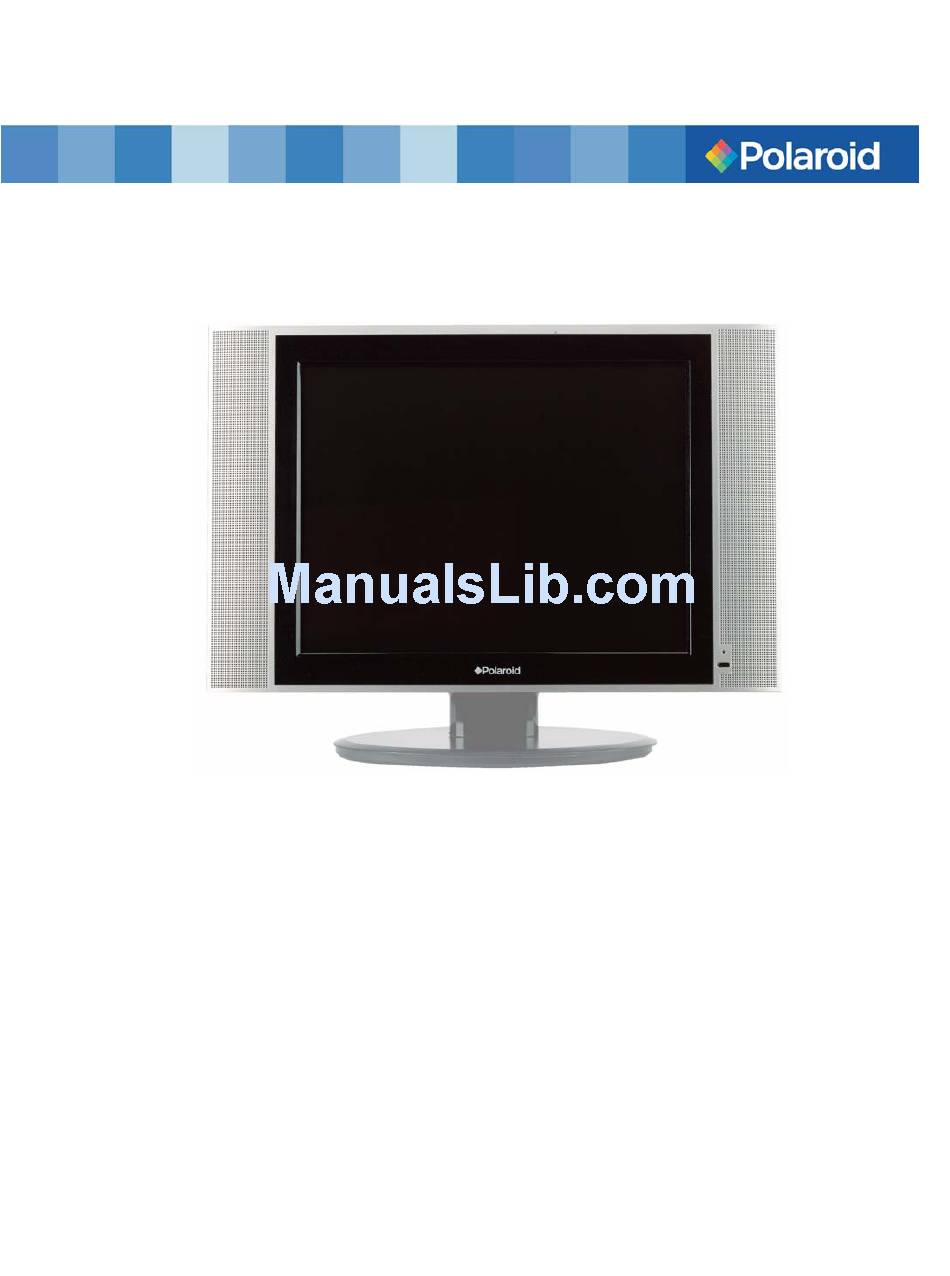

  • Page 1 15 ” LCD Television FLM-1507 20050829...
  • Page 2: Instruction Manual

    Congratulations on your purchase of a Polaroid LCD color television! This manual will help you use the many exciting and useful features to make your LCD TV viewing more enjoyable than ever before. Before operating, please read all these safety and operating instructions completely and then retain this manual for future reference.
  • Page 3: Important Safety Instructions

    Product Information Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. These numbers are located on the back of your LCD color television.
  • Page 4: Fcc Warning

    Instruction Manual FCC Warning Class B Computing Device Information to User This equipment has been tested and found to comply with the limits for a Class B Digital Device pursuant to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5: Packing List

    PACKING LIST LCD TV Operation Manual Power Adapter AC Power Cable Infrared Remote Control Remote Control Battery Warranty Card Quick Start Guide Note: Please keep the original box and packaging for transporting the set in the future. GENERAL INFORMATION Radio Frequency input; supports CATV Capable of receiving cable programs in 470MHz, it can store 181 TV channels AV input Convenient for watching a DVD player, VCR, video camera or other playback devices.
  • Page 6 In AV S-VIDEO and YPbPr modes, screen displays soft blue background if there is no signal input Multi Language On-Screen Display menu Text and graphical user interface makes the menu operation user-friendly Power Energy Saving Mode (Power management mode) When used as PC display terminal without PC signal output, the LCD TV will automatically power off within 30 seconds and enter Power Energy Saving Mode.
  • Page 7 INTRODUCTION Front Panel The button names and functions are as follows: Panel buttons Button To switch between TV, AV, S-Video, YPbPr and PC signal sources. The same function as SOURCE on R/C (remote control) in menu SOURCE operation. To enter or quit from the OSD (On-Screen Display) menu. MENU The same function as MENU on R/C To decrease the sound volume.
  • Page 8 Rear Panel Detail Illustration of Signal Input Ports...
  • Page 9: Remote Control

    Remote Control Note: 1. When in operation, point the remote control directly at the infrared sensor. 2. Do not subject the remote control to impacts, water or disassembly. 3. When pressing the buttons on the remote control, allow an interval of no less than one second between selections.
  • Page 10: Installation

    INSTALLATION 1. Remove the LCD TV from the box and place it on a flat surface in a well-ventilated location. 2. Connect the output terminal of RF cable to the corresponding TV RF signal input terminal. The LCD TV is a high technology digital product, use quality RF cables to obtain optimal results.
  • Page 11: Function Introduction

    FUNCTION INTRODUCTION MENU OPERATION 1. Use the On Screen Display menu to set and adjust functions 2. Use CH+/CH- to select the desired menu after pressing MENU, then press Vol+/OK to enter the next submenu; Use Vol+/Vol- to select the menu options and return to the previous menu by pressing MENU again.
  • Page 12 Setup ● Language To select the displayed language ● Parental Lock In the Parent submenu, first the Access Code menu appears. When you switch to a locked channel, you will see this menu: In the Parent menu two options of TV Rating and MPAA Rating appear on display: TV Rating: Used to block some programs (eroticism, violence).
  • Page 13 Program Lock Input the default password of 1235, the submenu of Parent will display if the password is correct. (a) When changing the password, the changed password will be updated after four digits are input. The word “ok” appears after you input the same number twice, if the two passwords are different the word “Failure”...
  • Page 14 To display the RF antenna mode, when this mode is Air, Auto Search begins searching from channel 2 to channel 69. When this mode is Cable, Auto Search begins from channel 1 to channel 125. After searching, all available channels are stored in the TV’s memory, ●...
  • Page 15 3. This function is only available when the main power supply is connected. 4. For the ClockTime and Off Time, “Minute” ranges from 00 to 59 and “Hour” ranges from 1 to12 AM and 1 to 12 PM. When “Hour” turns to “--” “Minute”also turns to “--” and the Clock function stops.
  • Page 16: Other Functions

    OTHER FUNCTIONS . ● Volume Control 1. Press Vol+/Vol- to increase or decrease the volume when no menu is displayed on the screen. The Volume menu will turn off automatically if there is no operation in about 5 seconds. 2. Press MUTE on the remote control to turn MUTE mode off and on. In Mute mode, “MUTE” in red letters will appear on the upper-right corner of the screen.
  • Page 17 ● Press CC to see the menu on the right. Select the desired option among CC1-CC4, T1-T4 and OFF with CH+/CH-. Confirm your choice by pressing OK. ● Favorites Press FAVOR to see the menu on the right: 1. Mode including Auto and Manual. They are respectively stored in Air or Cable mode 2.
  • Page 18 Press SLEEP on the remote control once to activate the function and additional times to select a sleep time of 0, 15, 30, 45, 60, 90, 120, 150, 180, 240 and 0 minutes. This will be reflected at the top right corner of the screen.
  • Page 19: Troubleshooting

    TROUBLESHOOTING ● Before calling our customer care number, please check the following table to see if the below mentioned symptoms can be diagnosed and fixed. Symptoms Possible Reasons No picture, no sound, 1.The power adapter is not and no indicator light plugged in 2.The power is off No picture, no sound,...
  • Page 20: Specifications

    SPECIFICATIONS Items Size (diagonal) Brightness:250cd/m Contrast: 450:1 Angle of View:120 Speed Response:16ms panel Lamp Life: 50,000 Hours items Recommended Pixel Pitch Number of Dots Viewable Area Color Display Color System Sound System PC Qualified Input Format YPbPr Input Format Audio Output Consumption AV-Audio Input AV-Video Input Headphone Output...
  • Page 21 For service, support and warranty information, visit www.polaroid.com or in the US call 1-866-289-5168, in Canada call 1-866-301-7922 and in Mexico call 01-800-400-2443. "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA.
