Summary of Contents for Polaroid FLM-2017

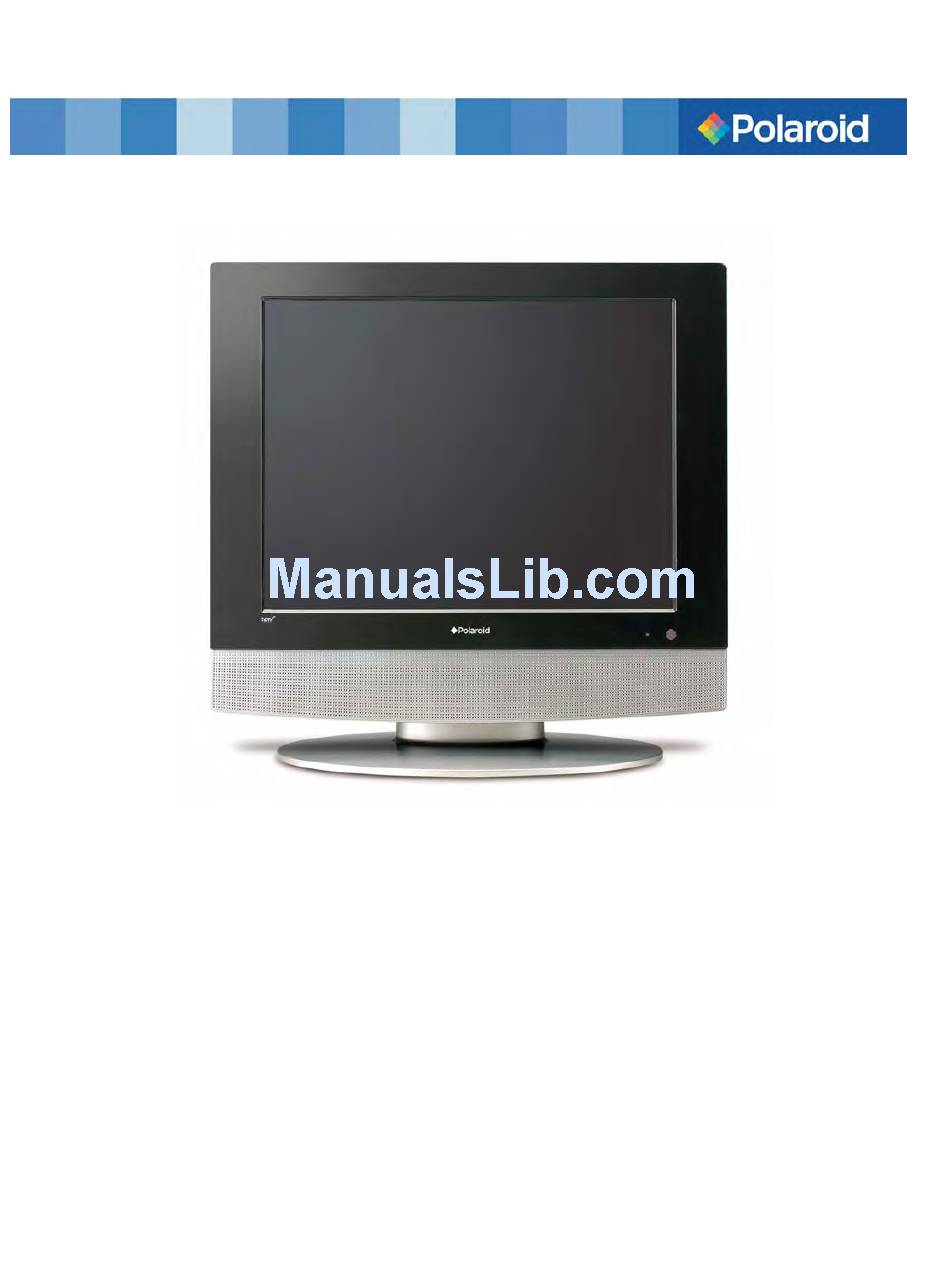

- Page 1 20” LCD Television FLM-2017 20061107...
-
Page 2: Table Of Contents
Important Safety Instructions------------------------------------------------ Product Features ---------------------------------------------------------------- Front Panel------------------------------------------------------------------------- Rear Panel-------------------------------------------------------------------------- Remote Control------------------------------------------------------------------- System Connections------------------------------------------------------------ Connecting to External AV Signal Source------------------------------------ Connecting to External AV Signal Source (YPbPr) ------------------------ Connecting to External AV Device(AV Out)---------------------------------- Connecting to PC ------------------------------------------------------------------ Connecting to Headphones----------------------------------------------------- Connecting to Power Adapter--------------------------------------------------- Connecting to TV Antenna------------------------------------------------------- TV Setup and Operation--------------------------------------------------------... -
Page 3: Important Safety Instructions
To find out how to properly dispose of this product, please go to www.polaroid.com and click on “Company“ or call the customer service number for your country listed in the instruction manual. - Page 4 Important Safety Instructions Note: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Maintain well ventilated conditions around the product. Do not put product on bed, sofa or anything that blocks ventilation.
-
Page 5: Product Features
Product Features This product incorporates LCD display and TV receiver in one system. Multiple Mode Component mode VGA mode TV mode Composite mode S-VIDEO mode High Quality Property High Resolution Adopt an MPEG2 decoding format to achieve horizontal resolution more than 500 lines. LCD (Liquid Crystal Display) Designed with 20"... -
Page 6: Front Panel
Front Panel 1. 20" color TFT screen 20" color TFT screen clearly show the data. 2. SOURCE button Press to select the modes: Component, VGA, TV, Composite or S-VIDEO. 3. MENU button Press to enter or exit setup menu. 4. CH /CH- button In the TV mode, press to select channels. - Page 7 Front Panel 6. POWER button Press to enter or exit the standby mode. 7. Earphone Jack When connected to earphone, the internal speakers will automatically turn off. 8. Remote Sensor Remote sensor window for the remote control. 9. Power Indicator In normal playback status, it is blue;...
-
Page 8: Rear Panel
Rear Panel 1. Y/Pb/Pr Input Jack Connected to the Y/Pb/Pr input in Component mode 2. L/R Audio Input Jack Connected to the L/R audio input in Component mode. The L/R audio input jacks can also be used in S-Video mode. 3. -
Page 9: Remote Control
Remote Control Remote Control Drawing 1. SOURCE button Press to select the mode Component, VGA, TV, Composite or S-VIDEO. 2. 0~9 Number buttons Press to select numbers 3. LAST button In the TV mode, press to return to the channel last viewed. 4. -
Page 10: Preparation Of Remote Control
Remote Control Preparation of Remote Control Push the back cover to open the battery compartment. Insert two batteries (1.5V, size AAA), please make sure the polarity matches the marks inside the compartment. Press the back cover to close it. Under normal use the battery will last for six months. -
Page 11: System Connections
System Connections • Do not connect the power cord until all other connections have been made. • Ensure that you observe the color-corded cables when connecting audio and video cables. Connecting to External AV Signal Source Use the audio and video cable to connect the AV input jacks on the rear panel of the unit to the external AV signal source. -
Page 12: Connecting To External Av Signal Source (Ypbpr)
System Connections Connecting to External AV Signal Source (YPbPr) Use the audio and video cables to connect the YPbPr (Component) input jacks on the rear panel of the unit to the external AV signal source. After making all AV connections, turn on the power of the unit and external AV signal source and press the SOURCE button to shift to Component mode. -
Page 13: Connecting To External Av Device(Av Out)
System Connections Connecting to External AV Device(AV Out) The unit supports audio and video signal input function, it can be connected to the external audio and video device. Use the audio and video cables to connect the AV output Jacks on the rear panel of the unit to the external AV input device. -
Page 14: Connecting To Pc
System Connections Connecting to PC The unit can be connected to PC (personal computer) via the VGA cable. Follow the steps and the figure below to connect: 1. Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit. 2. -
Page 15: Connecting To Headphones
System Connections Connecting to Headphones This unit can be connected to an earphone for listening music in private. See below figure for details: After connecting to the earphone, the internal speakers’ output will turn off automatically. Connecting to Power Adapter Power is supplied through the provided appropriative power adapter, one end is connected to the DC 9.5/12V IN jack on the rear panel of the unit, the other end to the AC100~240V wall outlet. -
Page 16: Connecting To Tv Antenna
System Connections Connecting to TV Antenna This unit can be connected to the TV signal input source via the TV jack on the rear panel. After making all connections, turn on the power of the unit and press the SOURCE button to shift to TV mode. -
Page 17: Tv Setup And Operation
directly . * X is the channel number. TV Setup and Operation Preparations 1. After making all connections, press the POWER button to turn on the power. (If it is turned on, the power indicator is blue.) 2. Press the SOURCE button to shift to TV mode. You can go on with the following operations: Image Setting Note: This item is only available when there is signal input. -
Page 18: Audio Setting
TV Setup and Operation Contrast Setup Press the ▲▼ button to select Contrast and press the ◄► button to adjust the value. Press the MENU button to return to the previous menu. Hue Setup Press the ▲▼ button to select Hue and press the ◄► button to adjust the value. Press the MENU button to return to the previous menu. -
Page 19: Sleep Setting
Bass Setup Press the ▲▼button to select Bass and press the ◄► button to adjust the level. Press the MENU button to return to the previous menu. TV Setup and Operation Treble Setup Press the ▲▼button to select Treble and press the ◄► button to adjust the level. Press the MENU button to return to the previous menu. -
Page 20: Parental Setting
TV Setup and Operation Parental Setting Note: The Parental Function is the same as that of V-CHIP. Press the MENU button to enter the setup menu. Press the ▲▼ button to select Parental and press the ENTER button to enter the menu shown on the right. In the Parental setup menu, press the ENTER button and use the number buttons to enter the pin. - Page 21 TV Setup and Operation Clear All Press the ▲▼ button to select Clear All and press the ENTER button to enter. Press the ▲▼ button to select the desired item and press the ENTER button to confirm your selection. Press the MENU button to return to the previous menu.
- Page 22 TV Setup and Operation CA Eng Rating Press the ▲▼ button to select CA Eng Rating and press the ENTER button to enter. Press the ▲▼ button to select the desired item and press the ENTER button to confirm your selection. Press the MENU button to return to the previous menu.
-
Page 23: Setup Setting
button to select the desired item and press the ENTER button to confirm your selection. Press the MENU button to return to the previous menu. TV Setup and Operation Setup Setting Press the MENU button once to enter the setup menu. - Page 24 memorize the programs by sequence automatically. During tuning, press the MENU button to exit the auto scan mode. TV Setup and Operation Channel System Press the ▲▼ button to select Channel System and press the ENTER button to enter. Press the ▲▼ button to select the desired item and press the ENTER button to confirm your selection.
- Page 25 function which when using the CH ▲▼button to select channels under normal playback status, it will play the channels in sequence. Press the MENU button to return to the previous menu. TV Setup and Operation Fine Tune If two black bars appear on the sides of your LCD screen and your picture is compressed, you may need to adjust the settings of your cable/satellite set-top box.
-
Page 26: Other Function
Other Function External AV Input Function The unit has external AV input function. It supports Composite, S-VIDEO and Component modes. Use the audio, video and S-Video cable to connect the unit to the external AV signal source such as recorder, satellite receiver or game player etc. Turn on the unit and the external AV signal source. Press the SOURCE button to shift to the corresponding mode: Composite, S-VIDEO or Component. -
Page 27: External Av Input Function
Troubleshooting SYMPTOM There is no sound. Nothing display on the LCD. LCD screen is blank. There is no picture or picture moves up and down. The remote control does not work. Other Notes: Static or other external interference may cause the LCD TV to behave abnormally. If this occurs, unplug the power supply cord from the outlet and plug it in again to reset the player. -
Page 28: Specifications
Weight About 9.52 Kg Ambient Temperature 10~45 DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE "Polaroid" and “Polaroid and Pixel” are trademarks of Polaroid Corporation, Waltham, MA, USA. For service, support and warranty information, visit www.polaroid.com. - 27 -... - Page 29 - 28 -...
