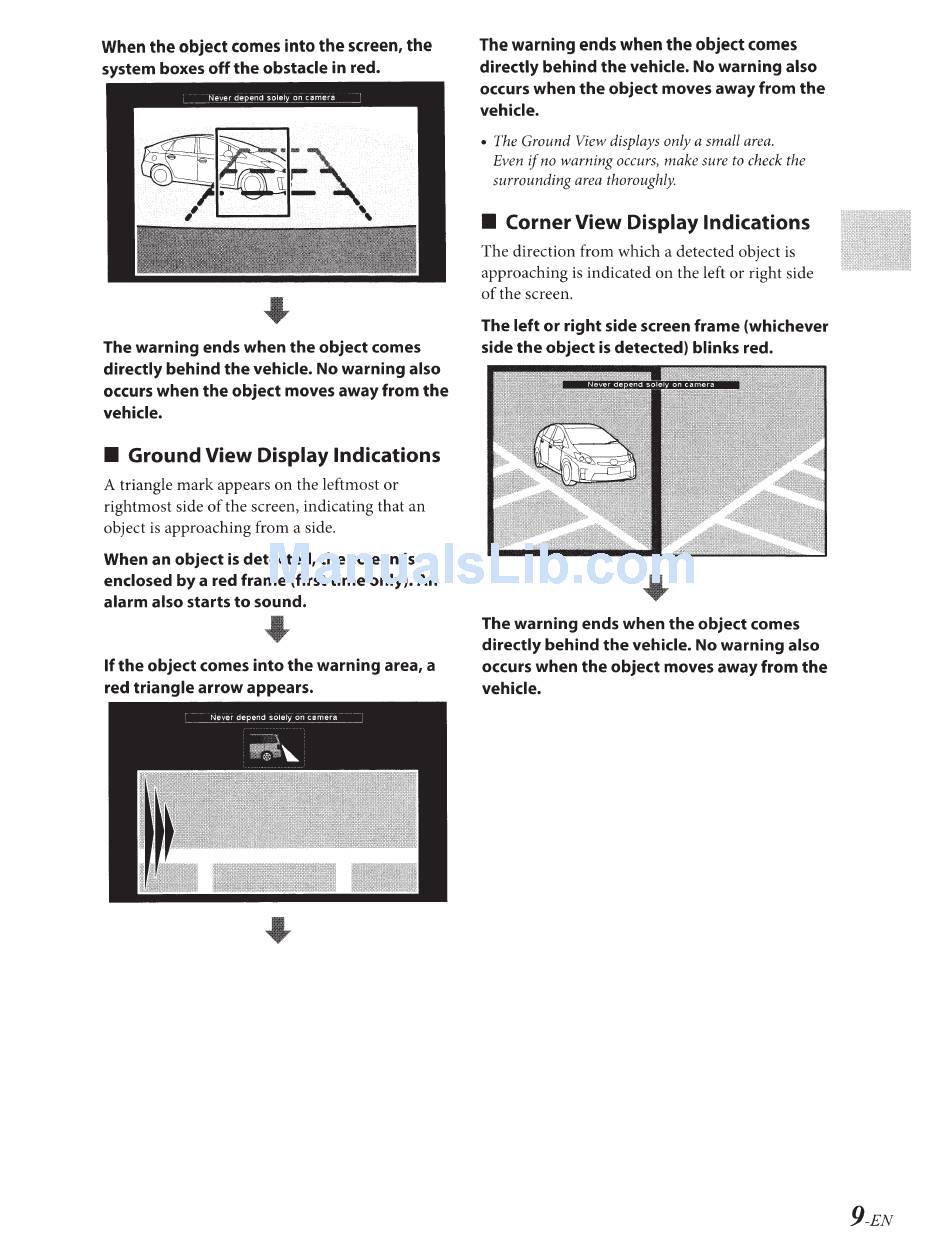

When the object comes into the screen, the
system boxes off the obstacle in red.
The warning ends when the object comes
directly behind the vehicle. No warning also
occurs when the object moves away from the
vehicle.
• Ground View Display Indications
A triangle mark appears on the leftmost or
rightmost side of the screen, indicating that an
object is approaching from a side.
When an object is detected, the screen is
enclosed by a red frame (first time only). An
alarm also starts to sound.
If the object comes into the warning area, a
red triangle arrow appears.
The warning ends when the object comes
directly behind the vehicle. No warning also
occurs when the object moves away from the
vehicle.
• The Ground View displays only a small area.
Even
if
no warning occurs, make sure to check the
surrounding area thoroughly.
• Corner View Display Indications
The direction from which a detected object is
approaching is indicated on the left or right side
of the screen.
The left or right side screen frame (whichever
side the object is detected) blinks red.
The warning ends when the object comes
directly behind the vehicle. No warning also
occurs when the object moves away from the
vehicle.
9-EN
