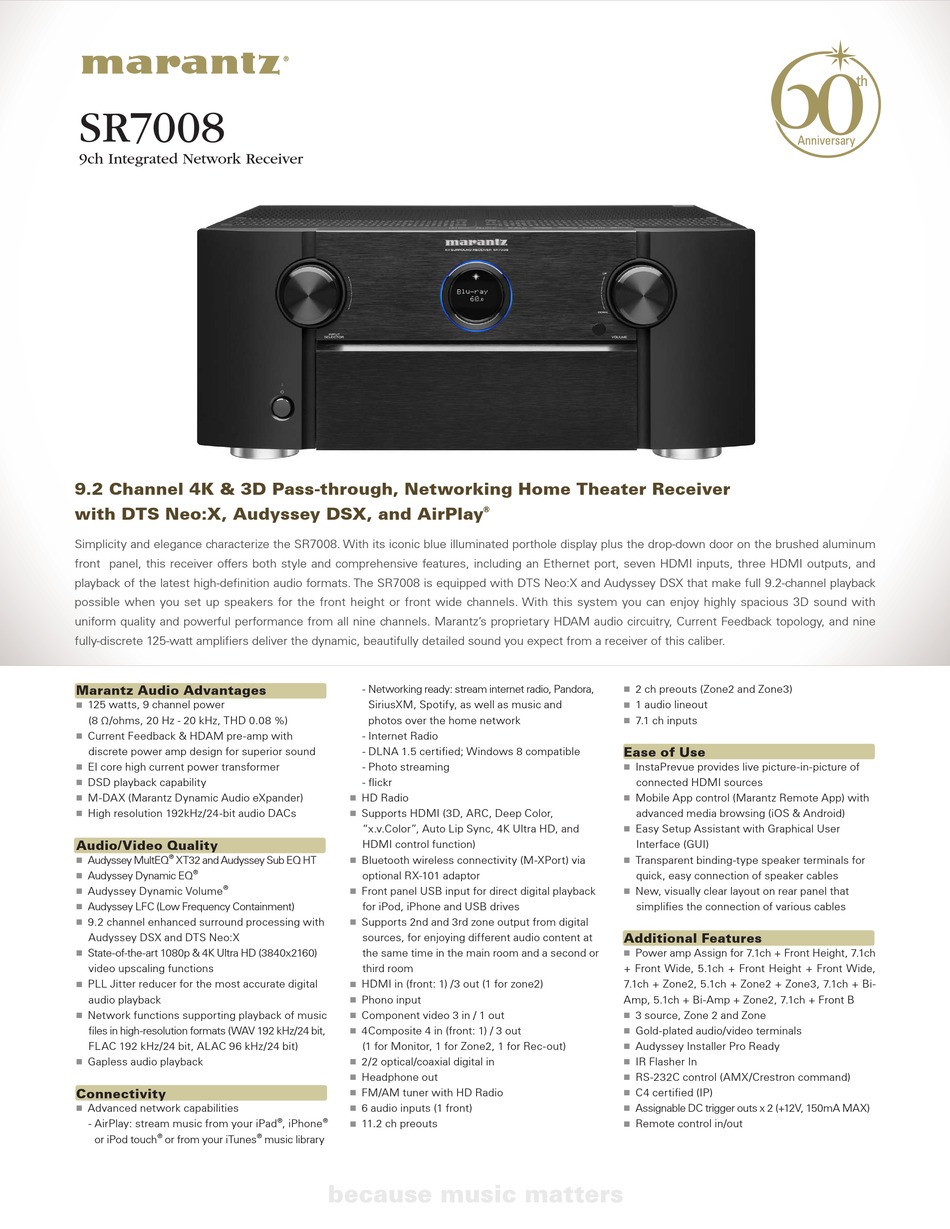

Marantz SR7008 Specifications

SR7008
9ch Integrated Network Receiver
9.2 Channel 4K & 3D Pass-through, Networking Home Theater Receiver
with DTS Neo:X, Audyssey DSX, and AirPlay
Simplicity and elegance characterize the SR7008. With its iconic blue illuminated porthole display plus the drop-down door on the brushed aluminum
front panel, this receiver offers both style and comprehensive features, including an Ethernet port, seven HDMI inputs, three HDMI outputs, and
playback of the latest high-definition audio formats. The SR7008 is equipped with DTS Neo:X and Audyssey DSX that make full 9.2-channel playback
possible when you set up speakers for the front height or front wide channels. With this system you can enjoy highly spacious 3D sound with
uniform quality and powerful performance from all nine channels. Marantz's proprietary HDAM audio circuitry, Current Feedback topology, and nine
fully-discrete 125-watt amplifiers deliver the dynamic, beautifully detailed sound you expect from a receiver of this caliber.
Marantz Audio Advantages
125 watts, 9 channel power
n
(8 Ω/ohms, 20 Hz - 20 kHz, THD 0.08 %)
Current Feedback & HDAM pre-amp with
n
discrete power amp design for superior sound
EI core high current power transformer
n
DSD playback capability
n
M-DAX (Marantz Dynamic Audio eXpander)
n
High resolution 192kHz/24-bit audio DACs
n
Audio/Video Quality
Audyssey MultEQ ® XT32 and Audyssey Sub EQ HT
n
Audyssey Dynamic EQ ®
n
Audyssey Dynamic Volume ®
n
Audyssey LFC (Low Frequency Containment)
n
9.2 channel enhanced surround processing with
n
Audyssey DSX and DTS Neo:X
State-of-the-art 1080p & 4K Ultra HD (3840x2160)
n
video upscaling functions
PLL Jitter reducer for the most accurate digital
n
audio playback
Network functions supporting playback of music
n
files in high-resolution formats (WAV 192 kHz/24 bit,
FLAC 192 kHz/24 bit, ALAC 96 kHz/24 bit)
Gapless audio playback
n
Connectivity
Advanced network capabilities
n
- AirPlay: stream music from your iPad
or iPod touch ® or from your iTunes
- Networking ready: stream internet radio, Pandora,
SiriusXM, Spotify, as well as music and
photos over the home network
- Internet Radio
- DLNA 1.5 certified; Windows 8 compatible
- Photo streaming
- flickr
HD Radio
n
Supports HDMI (3D, ARC, Deep Color,
n
"x.v.Color", Auto Lip Sync, 4K Ultra HD, and
HDMI control function)
Bluetooth wireless connectivity (M-XPort) via
n
optional RX-101 adaptor
Front panel USB input for direct digital playback
n
for iPod, iPhone and USB drives
Supports 2nd and 3rd zone output from digital
n
sources, for enjoying different audio content at
the same time in the main room and a second or
third room
HDMI in (front: 1) /3 out (1 for zone2)
n
Phono input
n
Component video 3 in / 1 out
n
4Composite 4 in (front: 1) / 3 out
n
(1 for Monitor, 1 for Zone2, 1 for Rec-out)
2/2 optical/coaxial digital in
n
Headphone out
n
FM/AM tuner with HD Radio
n
6 audio inputs (1 front)
n
® , iPhone ® 11.2 ch preouts
n
® music library
®
2 ch preouts (Zone2 and Zone3)
n
1 audio lineout
n
7.1 ch inputs
n
Ease of Use
InstaPrevue provides live picture-in-picture of
n
connected HDMI sources
Mobile App control (Marantz Remote App) with
n
advanced media browsing (iOS & Android)
Easy Setup Assistant with Graphical User
n
Interface (GUI)
Transparent binding-type speaker terminals for
n
quick, easy connection of speaker cables
New, visually clear layout on rear panel that
n
simplifies the connection of various cables

Additional Features

Power amp Assign for 7.1ch + Front Height, 7.1ch
n
+ Front Wide, 5.1ch + Front Height + Front Wide,
7.1ch + Zone2, 5.1ch + Zone2 + Zone3, 7.1ch + Bi-
Amp, 5.1ch + Bi-Amp + Zone2, 7.1ch + Front B
3 source, Zone 2 and Zone
n
Gold-plated audio/video terminals
n
Audyssey Installer Pro Ready
n
IR Flasher In
n
RS-232C control (AMX/Crestron command)
n
C4 certified (IP)
n
Assignable DC trigger outs x 2 (+12V, 150mA MAX)
n
Remote control in/out
n
