Right View - Acer Aspire V3-731 Service Manual

Right View

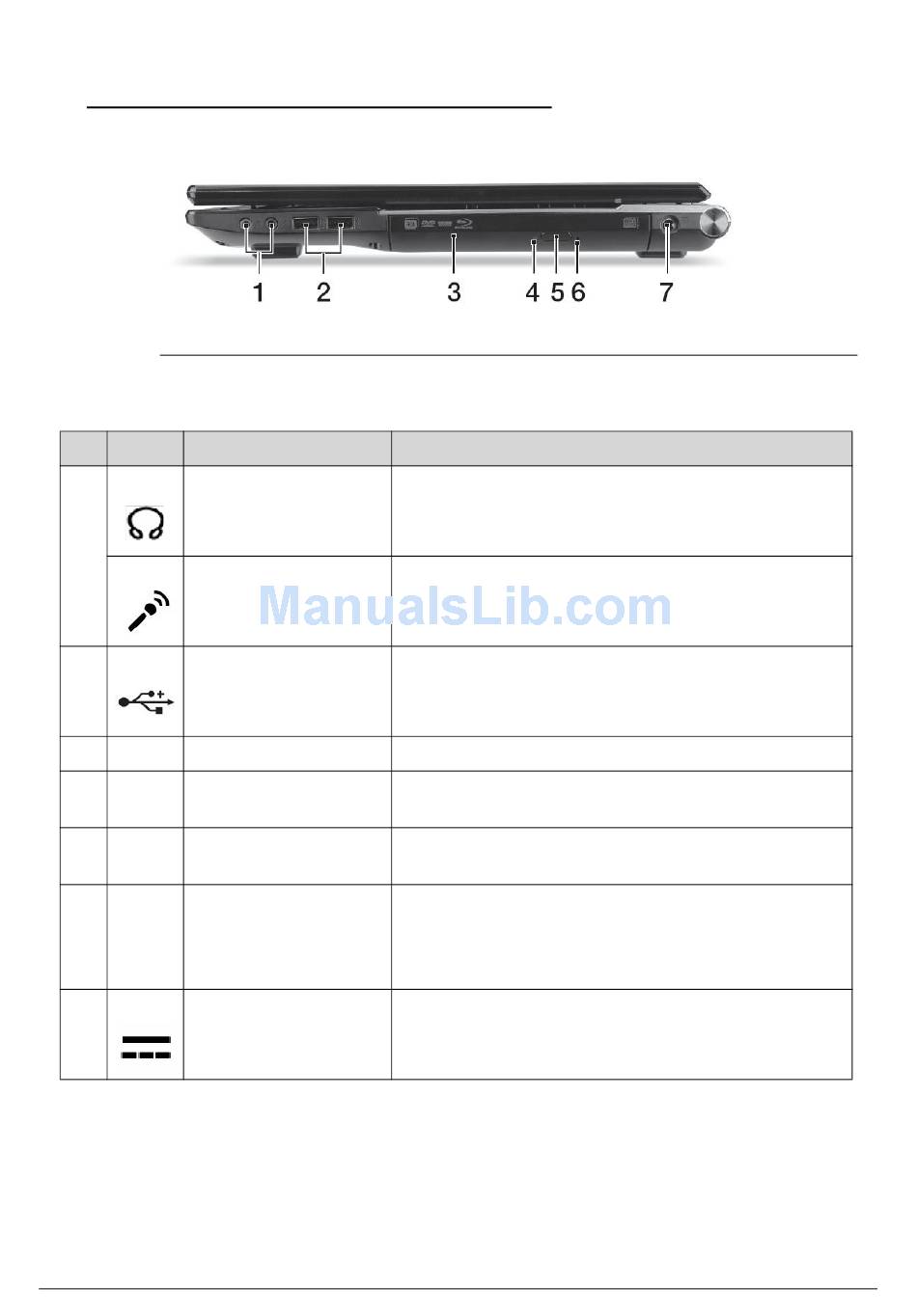

Figure 1-5. Right View
Table 1-5. Right View
No Icon
1 Headphones/speaker/l
ine-out jack
Microphone jack
2 USB 2.0 ports
3 Optical drive
4 Optical disk access
indicator
5 Optical drive eject
button
6 Emergency eject hole
7 DC-in jack
Hardware Specifications and Configurations
Item
Connects to audio line-out devices (e.g., speakers,
headphones).
Accepts inputs from external microphones.
Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
Internal optical drive; accepts CDs or DVDs.
Lights up when the optical drive is active.
Ejects the optical disk from the drive.
Ejects the optical drive tray when the computer is
turned off.
Note: Insert a paper clip to the emergency eject hole
to eject the optical drive tray when the computer is off.
Connects to an AC adapter.
Description
