Toshiba Satellite L855-S5163 Manual

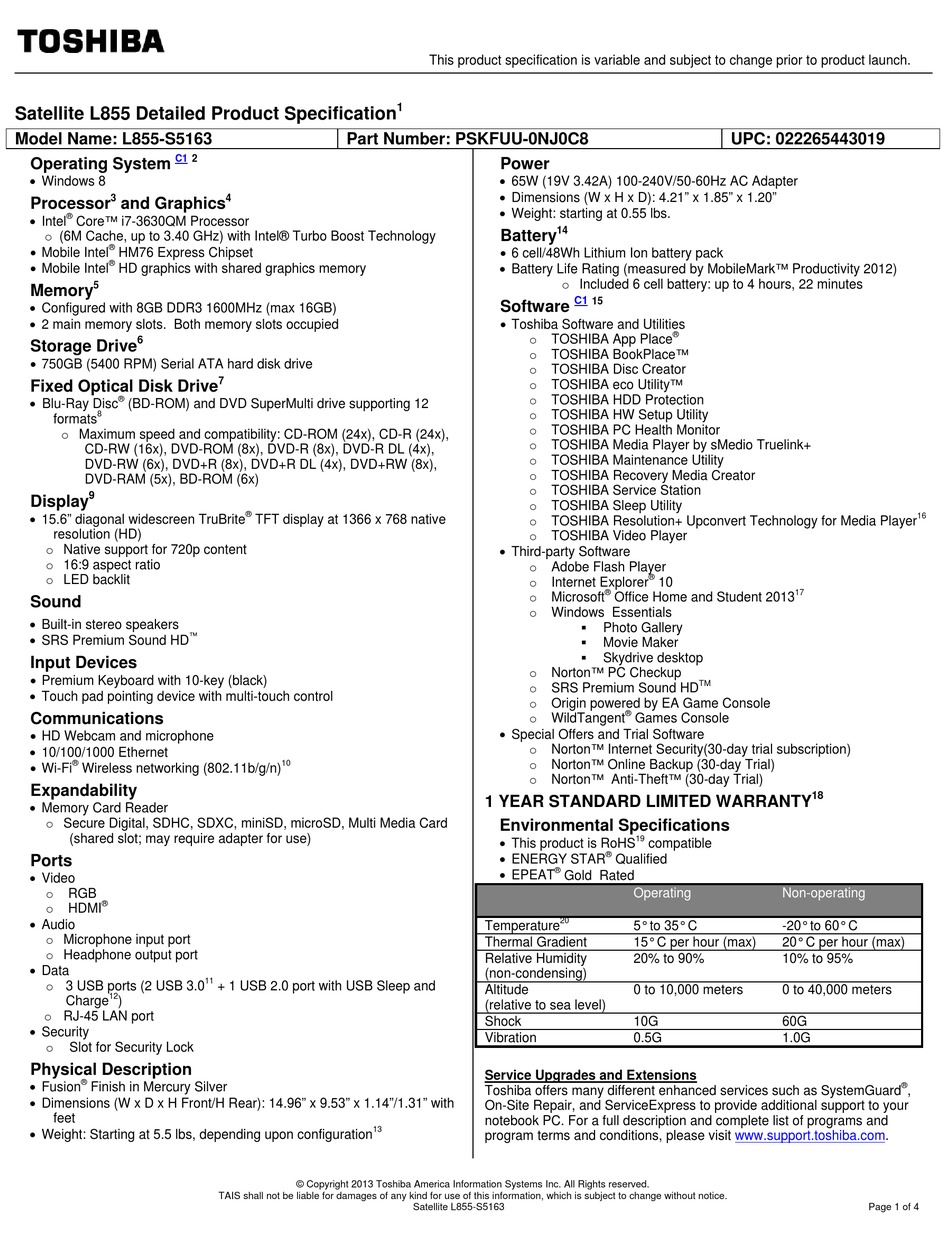

Satellite L855 Detailed Product Specification
Model Name: L855-S5163
C1 2

Operating System

 Windows 8
3
Processor and Graphics
 Intel
®
Core™ i7-3630QM Processor
o (6M Cache, up to 3.40 GHz) with Intel® Turbo Boost Technology
 Mobile Intel
®
HM76 Express Chipset
 Mobile Intel ®
HD graphics with shared graphics memory
5

Memory

 Configured with 8GB DDR3 1600MHz (max 16GB)
 2 main memory slots. Both memory slots occupied
6
Storage Drive
 750GB (5400 RPM) Serial ATA hard disk drive
Fixed Optical Disk Drive
 Blu-Ray Disc ®
(BD-ROM) and DVD SuperMulti drive supporting 12
8
formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (16x), DVD-ROM (8x), DVD-R (8x), DVD-R DL (4x),
DVD-RW (6x), DVD+R (8x), DVD+R DL (4x), DVD+RW (8x),
DVD-RAM (5x), BD-ROM (6x)
9

Display

 15.6" diagonal widescreen TruBrite
resolution (HD)
o Native support for 720p content
o 16:9 aspect ratio
o LED backlit
Sound
 Built-in stereo speakers
 SRS Premium Sound HD ™

Input Devices

 Premium Keyboard with 10-key (black)
 Touch pad pointing device with multi-touch control

Communications

 HD Webcam and microphone
 10/100/1000 Ethernet
 Wi-Fi ®
Wireless networking (802.11b/g/n)

Expandability

 Memory Card Reader
o Secure Digital, SDHC, SDXC, miniSD, microSD, Multi Media Card
(shared slot; may require adapter for use)

Ports

 Video
RGB
o
®
HDMI
o
 Audio
o Microphone input port
o Headphone output port
 Data
o 3 USB ports (2 USB 3.0
12
Charge )
o RJ-45 LAN port
 Security
Slot for Security Lock
o

Physical Description

 Fusion
®
Finish in Mercury Silver
 Dimensions (W x D x H Front/H Rear): 14.96" x 9.53" x 1.14"/1.31" with
feet
 Weight: Starting at 5.5 lbs, depending upon configuration
Part Number: PSKFUU-0NJ0C8
4
7
®
TFT display at 1366 x 768 native
10
11
+ 1 USB 2.0 port with USB Sleep and
13
© Copyright 2013 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
Power
 65W (19V 3.42A) 100-240V/50-60Hz AC Adapter
 Dimensions (W x H x D): 4.21" x 1.85" x 1.20"
 Weight: starting at 0.55 lbs.
14

Battery

 6 cell/48Wh Lithium Ion battery pack
 Battery Life Rating (measured by MobileMark™ Productivity 2012)
o Included 6 cell battery: up to 4 hours, 22 minutes
C1
Software
 Toshiba Software and Utilities
TOSHIBA App Place
o
TOSHIBA BookPlace™
o
TOSHIBA Disc Creator
o
TOSHIBA eco Utility™
o
TOSHIBA HDD Protection
o
TOSHIBA HW Setup Utility
o
TOSHIBA PC Health Monitor
o
TOSHIBA Media Player by sMedio Truelink+
o
TOSHIBA Maintenance Utility
o
TOSHIBA Recovery Media Creator
o
TOSHIBA Service Station
o
TOSHIBA Sleep Utility
o
TOSHIBA Resolution+ Upconvert Technology for Media Player
o
TOSHIBA Video Player
o
 Third-party Software
Adobe Flash Player
o
Internet Explorer
o
Microsoft
o
Windows Essentials
o
Norton™ PC Checkup
o
SRS Premium Sound HD
o
Origin powered by EA Game Console
o
WildTangent
o
 Special Offers and Trial Software
Norton™ Internet Security(30-day trial subscription)
o
Norton™ Online Backup (30-day Trial)
o
Norton™ Anti-Theft™ (30-day Trial)
o
1 YEAR STANDARD LIMITED WARRANTY
Environmental Specifications
 This product is RoHS
 ENERGY STAR
 EPEAT
®
Gold Rated
20
Temperature
Thermal Gradient
Relative Humidity
(non-condensing)
Altitude
(relative to sea level)
Shock
Vibration
Service Upgrades and Extensions
Toshiba offers many different enhanced services such as SystemGuard
On-Site Repair, and ServiceExpress to provide additional support to your
notebook PC. For a full description and complete list of programs and
program terms and conditions, please visit www.support.toshiba.com.
Satellite L855-S5163
UPC: 022265443019
15
®
®
10
®
Office Home and Student 2013

Photo Gallery

Movie Maker

Skydrive desktop
TM
®
Games Console
19
compatible
®
Qualified
Operating
5° to 35° C
15° C per hour (max)
20% to 90%
0 to 10,000 meters
10G
0.5G
16
17
18
Non-operating
-20° to 60° C
20° C per hour (max)
10% to 95%
0 to 40,000 meters
60G
1.0G
®
,
Page 1 of 4
