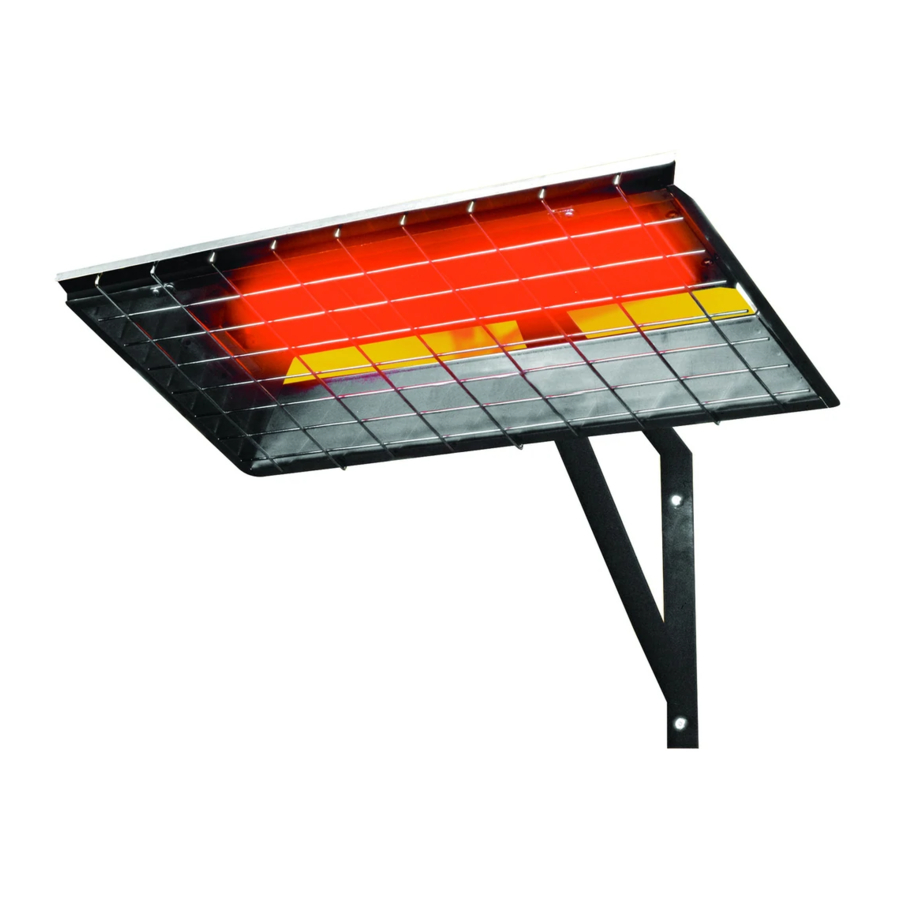

Gas fired infra-red workshop heater
Hide thumbs Also See for HS25LP:

Advertisement

Quick Links

Download this manual See also: Owner's Operation Manual

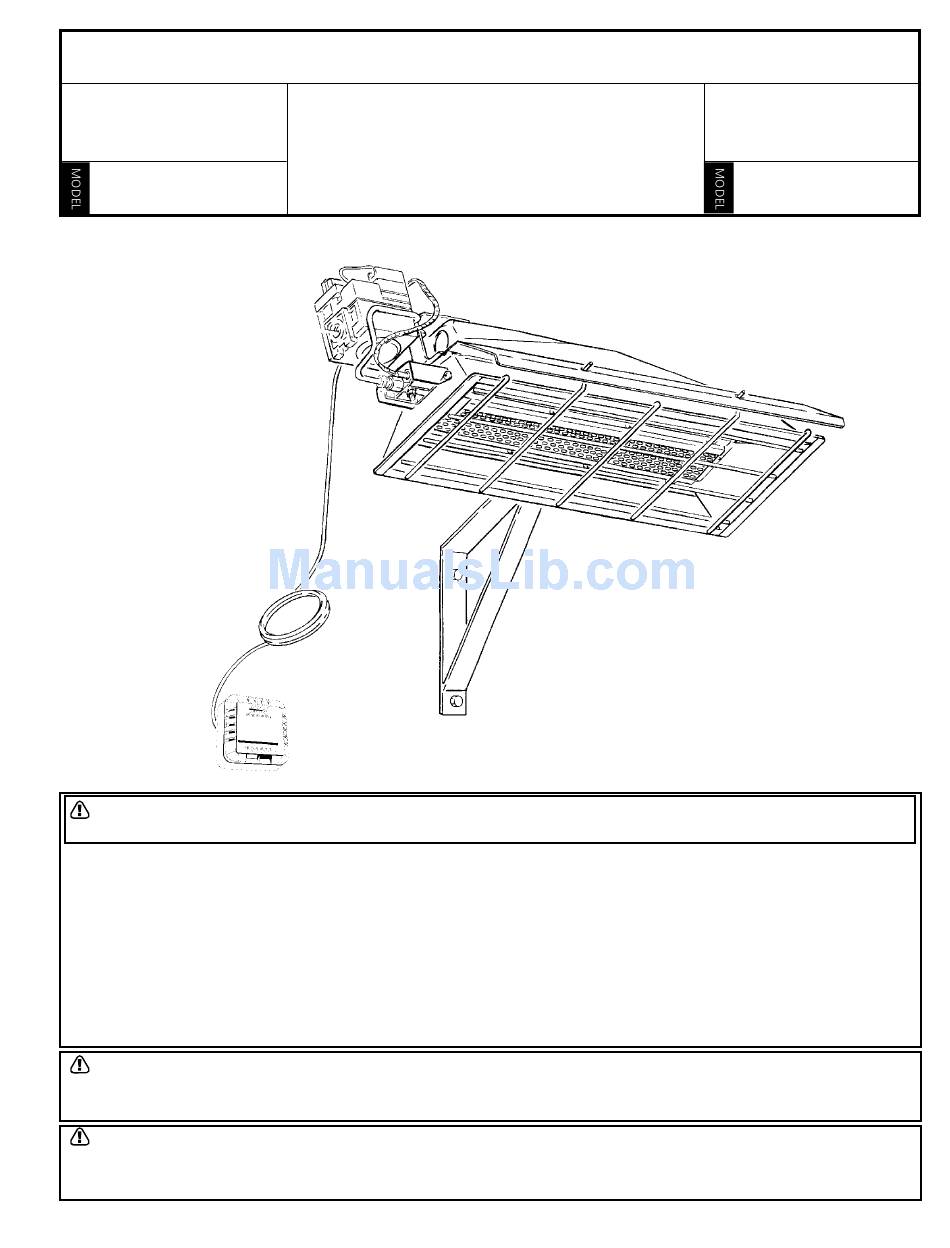

OPERATING INSTRUCTIONS AND OWNER'S MANUAL
MR. HEATER
MH25NG
MH25LP
GAS FIRED INFRA-RED WORKSHOP HEATER
WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing
property damage, personal injury, or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Shut off gas supply
• Do not try to light any appliance
• Do not touch an electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
WARNING: This is an unvented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate combustion and ventilation air must be provided. Refer to Fresh Air for Combustion and
Ventilation section on page 3 of this manual.
WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage,
injury or death. Read the installation, operation, and maintenance instructions thoroughly before installing or
servicing this equipment. For assistance or additional information consult a qualified installer, service agency, or
gas supplier.
ENERCO GROUP, INC., 4560 W. 160
READ INSTRUCTIONS CAREFULLY: Read and
follow all instructions. Place instructions in a
safe place for future reference. Do not allow
anyone who has not read these instructions to
assemble, light, adjust or operate the heater.
TH
ST., CLEVELAND, OHIO 44135 · 216-916-3000
Operation Instructions Only - No Parts List
HEATSTAR
HS25NG
HS25LP
18673 Rev. D 06/06

Advertisement

loading

Related Manuals for Mr. Heater HS25LP

Summary of Contents for Mr. Heater HS25LP

  • Page 1 Operation Instructions Only - No Parts List OPERATING INSTRUCTIONS AND OWNER’S MANUAL READ INSTRUCTIONS CAREFULLY: Read and MR. HEATER HEATSTAR follow all instructions. Place instructions in a safe place for future reference. Do not allow HS25NG anyone who has not read these instructions to MH25NG assemble, light, adjust or operate the heater.

  • Page 2: Table Of Contents

    DANGER: Carbon monoxide poisoning may lead to WARNINGS death. WARNING: Improper installation, adjustment, Carbon Monoxide Poisoning: alteration, service or maintenance can cause property damage, injury or death. Read the Early signs of carbon monoxide poisoning resemble the installation, operation, and maintenance instruc- flu, with headaches, dizziness, or nausea.

  • Page 3: Introduction

    Figure 1. Heater Major Components 3. MODELS COVERED IN THIS MANUAL Model MH25NG/HS25NG is for use where natural gas is intended fuel source. Model MH25LP/HS25LP is for use The cover and the following page provide a safety • where propane gas is the intended fuel source.
  • Page 4 NAT. L.P. NAT. L.P. NAT. L.P. MH/HS25NG 25,000 — 7.0" — 14" — 6" — — MH/HS25LP — 22,000 — 11" — 14" — 10" — Table 2. Heater Dimensions and Orifice Sizes MODEL OPERATING ORIFICE SIZE INPUT SIZE PRESSURE...

  • Page 5: Heater Installation

    Table 3. Installation, Ventilation and Mounting Information BTU/HR. RATING NORMAL MODEL MOUNTING CLEARANCES TO COMBUSTIBLE SURFACES NAT. L.P. POSITION SIDES BACK BELOW MH/HS25NG 25,000 — 14" 16" 16" 48" MH/HS25LP — 22,000 14" 16" 16" 48" Model # MH25NG/LP HS25NG/LP Installation instructions and Owner’s Manual...
  • Page 6 department at 1-800-251-0001. This heater may be mounted on any wall; • however, it is recommended that the heater be mounted in the middle of the wall opposite any The selection of the thermostat mounting location is overhead doors. critical to efficient and effective heater operation. When selecting installation locations for this •...
  • Page 7 B. Prepare to install the heater wall mounting bracket the bolt through the clip and bracket. as follows: F. Thread the hex nut onto the bolt and tighten 1. If the wall mounting bracket is to be attached to securely. a stud and wallboard wall, refer to Figure 3 for G.
  • Page 8 6" W.C. WARNING: Model MH/HS25LP is designed to burn liquefied petroleum (LP) gas and it comes equipped with a regulator. The regulator is built into the gas valve.
  • Page 9 ments and piping requirements are fulfilled, install piping WARNING: When testing gas piping use only a soap as follows: and water solution. Do not use a match or other flame for leak testing. If during leakage check gas is A. In accordance with the above piping requirements, smelled, turn off the gas supply and ventilate building.

  • Page 10: Heater Operating Instructions

    CHAPTER III NOTE Gasket binder material used in this heater assembly HEATER OPERATING will temporarily emit an odor and/or vapor. This condi- tion will clear up in approximately 20 minutes and INSTRUCTIONS thereafter will not reoccur. Refer to Chapter 2 for ventilation.
  • Page 11 NOTE D. Wait 5 minutes to allow gas that may have accumulated in the main burner to escape During the initial startup of heater, an odor and, (especially important after installation). perhaps, some vapor will come from the heater. This E.

  • Page 12: Operator Maintenance Instructions

    CHAPTER IV PROPER FLAME ADJUSTMENT OPERATOR MAINTENANCE 3/8 TO 1/2 INCH (10-13 MILLIMETERS) INSTRUCTIONS THERMOCOUPLE 1. TROUBLESHOOTING A. Table 4 lists the common malfunctions which you may find during the operation or maintenance of your heater. B. For additional information, refer to Honeywell Field Figure 11.
  • Page 13 Table 4. Trouble Shooting Chart Below in chart form are various symptoms of a malfunctioning system, possible defects that will cause these symptoms and suggested corrective measures. The chart assumes that the proper gas pressure is available to the heater and that the lighting procedure is as stated on the plate attached to the heater.

  • Page 14: Replacement Parts List

    IF SERVICE IS REQUIRED PLEASE DO NOT RETURN THIS APPLIANCE TO YOUR STORE For information regarding service, please call our Toll-Free Number: 1-800-251-0001. Our office hours are 8:30 AM – 5:00 PM, Eastern Time Zone Monday through Friday Please include the model number, date of purchase, and description of problem in all communication.
  • Page 15 ALL WARRANTY CLAIMS REQUIRE PROOF OF PURCHASE Model # MH25NG/LP HS25NG/LP Installation instructions and Owner’s Manual...
  • Page 16 ENERCO GROUP, INC., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 ® 216-916-3000 Toll Free Number 1-800-251-0001 www.mrheater.com CAN 1-2.16-M81 Mr. Heater is a registered trademark of Enerco Group, Inc. ANSI Z83.6b-1993 © 2005, Enerco/Mr. Heater. All rights reserved Model # MH25NG/LP HS25NG/LP Installation instructions and Owner’s Manual...
  • Page 17 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle réservés. droits Tous 2005. Heater, Enerco/Mr. © Z83.6b-1993 ANSI Inc. Group, d’Enerco déposée marque Heater 1-2.16-M81 www.mrheater.com 251-0001 frais sans Numéro 916-3000 ® 44135 OHIO CLEVELAND, ST., 160TH 4560 INC., GROUP, ENERCO l’usine.
  • Page 18 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle...
  • Page 19 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle d’achat. date partir à d’un garantie comportent d’EGI fournisseurs fournis etc., commandes, ensembles, pièces, fabrication. matériel défauts contre vendus fabriqués spéciaux. consécutifs dommages infrarouge à radiateurs garantit Inc. Group, Enerco incluant EGI, vendus produits pièces...
  • Page 20 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle suivante. saison à fonction mise leur avant l’arrêt à mise leur avant inspectés être doivent saisonnière relâché. lorsque remonte base utilisés appareils intermittent. Usage bouton gaz, commande L’UTILISATEUR bouton d’enfoncer tourner difficile INSPECTIONS FRÉQUENCE dépannage.
  • Page 21 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle dessus – standard capacité Commande Figure COUVERCLE) VEILLEUSE (SOUS VEILLEUSE CAPTEUR DÉBIT RÉGLAGE D’ALIMENTATION BLOC DESSOUS) DIRECTEMENT PRESSION (DÉRIVATION VEILLEUSE SORTIE «C») (MODÈLE PROGRESSIVE ENTRÉE OUVERTURE À RÉGULATEUR «A») (MODÈLE STANDARD PRESSION RÉGULATEUR MANOEUVRE BOSSAGE...
  • Page 22 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle veilleuse Allumage Figure QU’INDIQUÉ ALLUMETTE AVEC VEILLEUSE ALLUMER VEILLEUSE SOUPAPE ALLUMER POUR ENFONCER désirée. température à thermostat Réglez (ouvert). à mettez-le gaz. d’alimentation robinets Fermez manuelle commande bouton Relâchez (arrêt). position sécurité. soupape ouvrir à...
  • Page 23 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle soupape Composants Figure VEILLEUSE CAPTEUR COUVERCLE) D’ALIMENTATION (SOUS VEILLEUSE BLOC DÉBIT RÉGLAGE ENTRÉE DESSOUS) DIRECTEMENT PRESSION (DÉRIVATION MANOEUVRE VEILLEUSE SORTIE BOSSAGE STANDARD PRESSION RÉGULATEUR MANUELLE PRESSION COMMANDE RÉGULATEUR BOUTON RÉGLAGE seulement! l’intérieur figure Voir OFF.
  • Page 24 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle tuyauterie type Installation Figure RADIATEUR. AVEC INCLUS SONT ILLUSTRÉS RACCORDS GPL. INSTALLATIONS LIQUÉFIÉS RÉSISTANTE JOINT À PÂTE QU’UNE N’UTILISEZ REMARQUE BOUCHON RACCORD TEUR RADIA TÉ RACCORD D’ARRÊT RADIATEUR SOUPAPE FLEXIBLE RACCORD UNION RACCORD AVEC RIGIDE...
  • Page 25 SOUPAPE à intégré régulateur régulateur. d’un équipé CORPS (GPL) liquéfiés pétrole brûler pour conçu MH/HS25LP modèle AVERTISSEMENT moins d’au d’admission pression assurez-vous naturel, radiateur votre optimal rendement obtenir Pour • naturel. fournisseur votre consultez...
  • Page 26 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle PRÉPERCÉS PLANCHER TROUS THERMOSTAT) AVEC INCLUSES INSTRUCTIONS REBORD (VOIR THERMOSTAT FINI CÔTÉ THERMOSTAT) AVEC INCLUSES – REQUISES FINI CÔTÉ Nº TÔLE À FIGURE (VOIR REQUISES) THERMOSTAT CÂBLE LONGUES LB/PO²]) [1/2 TIRE-FOND DÉPASSER ENTRÉE RADIATEUR RÉFLECTEUR...
  • Page 27 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle l’alimentation pour requises conduites prise. rebord aménagés trous l’installation calibrage pour professionnel à appel dans appropriées attaches moyen faire devoir peut celui-ci l’installateur, compétence fixez- désiré prises Installez niveau locaux exigences codes Selon prise.
  • Page 28 Notice HS25NG/LP MH25NG/LP n° Modèle pouces pouces — MH/HS25LP pouces pouces — MH/HS25NG DESSOUS ARRIÈRE CÔTÉS HAUT NORMALE NAT. COMBUSTIBLES SURFACES DISTANCE MONTAGE MODÈLE POSITION BTU/H PUISSANCE montage ventilation l’installation, Renseignements Tableau combustibles surfaces l’installation entre Distances...
  • Page 29 Notice HS25NG/LP MH25NG/LP n° Modèle 0,011 MH/HS25LP 0,018 MH/HS25NG POIDS HAUTEUR LONGUEUR LARGEUR (BTU/H) VEILLEUSE BRÛLEUR NEMENT ENTRÉE FONCTION- DIMENSIONS L’ORIFICE TAILLE PRESSION MODÈLE orifices tailles radiateur Dimensions Tableau — — — — — MH/HS25LP — —...
  • Page 30 • GUIDE UTILISATION consultation facilite matières table guide. propane. prévu avertissements tous endroit même dans combustible lorsque indiqué MH25LP/HS25LP regroupant sécurité sommaire fournissent modèle naturel. prévu combustible • suivante page couverture page lorsque indiqué MH25NG/HS25NG modèle GUIDE PRÉSENT DANS DÉCRITS...
  • Page 31 d’utilisation guide d’installation Notice HS25NG/LP MH25NG/LP n° Modèle ....rechange pièces Liste ..........l’utilisateur l’intention à d’entretien Directives ....radiateur d’utilisation Notice ......radiateur Installation ..........Introduction Page Titre Chapitre PO²). MATIÈRES TABLE (1/2 DÉPASSER DOIT RADIATEUR D’ENTRÉE PRESSION • FUITES.
  • Page 32 AVERTISSEMENT ALIMENTÉ INFRAROUGE À D’ATELIER RADIATEUR MH25LP HS25LP radiateur. fonctionner faire régler MH25NG d’allumer, d’assembler, instructions présentes HS25NG n’ayant quiconque à Interdisez ultérieurement. référer vous pour sûr...
