Installer: Leave this manual with the appliance. Consumer: Retain this manual for future reference.
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe
place for future reference. Do not allow anyone who has not read these instructions to assemble,
light, adjust or operate the heater.

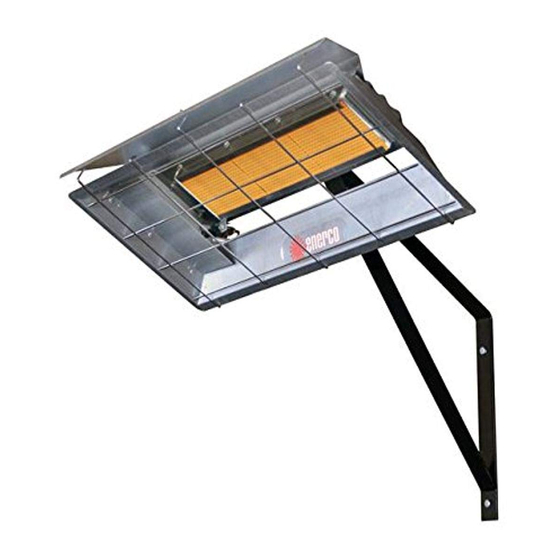

GAS FIRED INFRA-RED WORKSHOP HEATER
WARNING:
- WHAT TO DO IF YOU SMELL GAS
WARNING
WARNING
MR. HEATER, INC., 4560 W. 160
OPERATING INSTRUCTIONS
MR. HEATER INC., 4560 W. 160
TH
TH
Model #
MH25NG
MH25LP
2017
18672
2017 18672
