RCA MAF90BK Installation Manual

Safety precautions
Follow these precautions to ensure safe installation and
mounting of your flat panel TV.
1.
Make sure these instructions are read and completely
understood before attempting installation. If you
are unsure of any part of this installation, contact a
LCD/Plasma TV Wall Mount
professional installer for assistance.
2.
The wall or mounting surface must be capable of
Installation Manual
supporting the combined weight of the wall mount and
the display; otherwise the structure must be reinforced.
3.
Protective eye wear and proper tools must be used.
Fits TVs 27"- 60"
A minimum of two people are required for this
Maximum Load Capacity – 198 lbs. (90 kg)
installation. Failure to use safety gear and/or attempting
this installation alone can result in property damage,
serious injury, or death.
4.
Follow all instructions and recommendations regarding
adequate ventilation and suitable locations for mounting
your display in the owner's manual for your display.
Be sure you have purchased the correct wall mount
for your TV. Recheck the size and weight constraints.
5.
Gather all necessary tools before you begin installation.
You will need a #3 bit Phillips screwdriver, electric
drill, drill bit (included), level (integrated level on
product), stud finder, and hammer (for brick and
concrete installations).
6.
MAF90BK
It is essential for the wall mount plate to be attached
to wall studs. (Use a stud finder.)
7.
Use the included hardware for mounting purposes.
Thank you for choosing the RCA MAF90 Universal Flat
This hardware has been provided to ensure a safe and
Panel TV Wall Mount. This mount can be used for all major
secure mount.
brands of 23" - 60" flat panel TVs, 198 lbs (90 kg) or under.
This wall mount features a 0-15 degree tilt for easy viewing.
8.
Hire a licensed electrician to relocate an electrical
Before attempting to mount your television set, please
outlet, if needed.
remove all parts from this package and read the installation
9.
instructions carefully.
Be sure to purchase wires long enough to connect
the TV to the audio and video components in your
installation.
WARNING: Use of this mount with a TV weighing
over 198 lbs. or with a screen larger than 60" could
10.
We recommend you hire a professional installer,
cause the mount to fail causing property damage and/or
if you have any concerns about installing the TV
personal injury.
wall mount yourself.
Keep your sales receipt to obtain warranty parts and
service and for proof of purchase. Attach it here and record
Limited Lifetime Warranty
the model number. This number is located on the product.
Model No. __________________________________________
Audiovox Electronics Corporation (the "Company") warrants to you the
original retail purchaser of this product that should it, under normal use
and conditions, be proven defective in material or workmanship during
Purchase Date: ______________________________________
its lifetime while you own it, such defect(s) will be repaired or replaced (at
the Company's option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the Dealer/Address/Phone ________________________________
product is to be delivered with proof of warranty coverage (e.g. dated bill
of sale), specification of defect(s), transportation prepaid, to the Company
at the address shown below. Do not return this product to the Retailer.
This Warranty does not cover product purchased, serviced or used
outside the United States or Canada.
This Warranty is not transferable and does not extend to costs incurred for
installation, removal or reinstallation of the product. This Warranty does
Preparing to install
not apply if in the Company's opinion, the product has been damaged
through alteration, improper installation, mishandling, misuse, neglect,
or accident.
THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
Before beginning the installation process, verify that you
PROVIDED ABOVE AND, IN NO EVENT, SHALL THE COMPANY'S
have all the necessary tools on hand.
LIABILITY EXCEED THE PURCHASE PRICE PAID BY PURCHASER
FOR THE PRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY
Tools Required
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE
#3 bit Phillips screwdriver
SHALL BE LIMITED TO DURATION OF THIS WARRANTY. IN NO CASE
SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL OR
Ratchet or driver with 1/2" (13 mm) socket
INCIDENTAL DAMAGES WHATSOEVER. No person or representative is
authorized to assume for the Company any liability other than expressed
1/4" (6 mm) drill bit (included, for drywall installation)
herein in connection with the sale of this product.
Stud finder (for drywall Installation)
Some states/provinces do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation of incidental or consequential
Electric drill
damage so the above limitations or exclusions may not apply to you. This
Warranty gives you specific legal rights and you may also have other
5/16" (8mm) masonry drill bit (for concrete/
rights which vary from state/province to state/province.
brick installation)
U.S.A.: Audiovox Electronics Corporation, 150 Marcus Blvd.,
Hauppauge, New York 11788 Hammer (for concrete installation)
CANADA: Audiovox Return Center, c/o Genco, 6685 Kennedy Road,
Unit 3, Door 16, Mississauga, Ontario L5T 3A5
Trademark(s) Registered, Marcas Registradas.
All other brands and product names are trademarks or registered
trademarks of their respective owners.
© 2008 Audiovox Accessories Corporation
111 Congressional Blvd., Suite 350
Carmel, IN 46032
www.rca.com
MAF90BK_US_IB_00
Package Contents
Mounting the Wall Plate
Bag # (Ref ) Item (Qty)
Drywall Installation
(A) M4x12 Bolt (x4)
Important!
1 two adjacent wood studs no less than 16" apart. If your
(B) M4x30 Bolt (x4)
display weighs more than 50 kg (110 lbs), the mount
(C) M4 Lock Washer (x4) must be secured to three studs using all six lag bolts
provided.
1.
(D) M5x12 Bolt (x4)
Measure the distance between the mounting holes on
2 the back of your display using a measuring tape.
(E) M5x30 Bolt (x4)
(F) M5 Lock Washer (x4)
(G) M6x12 Bolt (x4)
3
(H) M6x35 Bolt (x4)
(I) M6 Lock Washer (x4)
(J) M8x16 Bolt (x4)
4
(K) M8x40 Bolt (x4)
2.
Using the measurement, expand the wall plate of the
mount (Fig. 1) enough so that both mounting arms
(L) M8 Lock Washer (x4)
can fit over the crossbar when they are attached to the
display (Fig. 4). Be careful not to extend the mount
wider than the display.
(M) Small Spacer (x4)
3.
Using a stud finder, locate and mark two or more
adjacent studs for securing the mount.
5
(N) Large Spacer (x4)
4.
Place the wall plate against the wall and level it using
the bubble guide.
(O) M6 Washer (x4)
5.
Mark four or six locations (two per stud) on the wall
where the mount will be secured. Be sure to use the
center of each stud.
(P) Concrete Anchor (x6)
6.
Remove the wall plate and drill a 1/4" (6 mm) pilot hole
at each location using a drill.
6
(Q) M8x63 Hex Bolt (x6)
7.
With the help of another person, replace the wall
plate and level it using the bubble guide. Fix it to the
(R) Hex Bolt Washer (x6) wall using the Lag Bolts (Q) and Lag Bolt Washers (R)
provided (Fig. 2).
7
(S) Drill Bit (1)

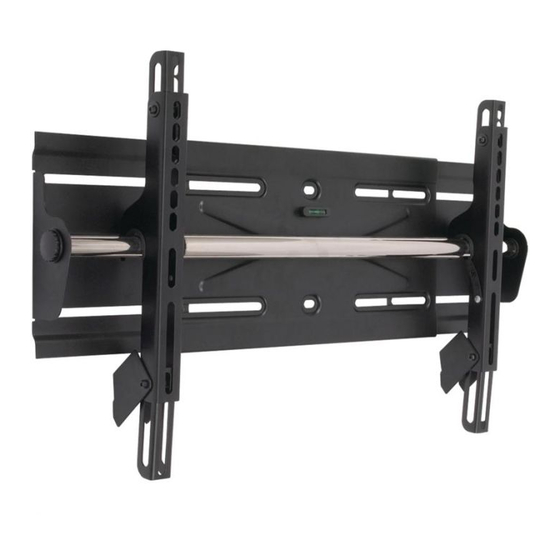

Product diagram
Adjustment Knobs
Fig. 2 - Attach the wall plate to the wall.
Integrated Bubble Level 8.
Do not over-tighten the bolts and do not release the
wall plate until all screws are secure.
9.
Attach the cable manager to the middle of the top
crossbar (Fig. 3).
For displays with flat
backs...
Wall Mount Plate
TV Mount Plate
Security Latch
Concrete/Brick Installation
Important!
(110 lbs), the mount must be secured using all six lag
bolts provided.
1.
Measure the distance between the mounting holes on
This mount must be secured to at least
the back of your display using a measuring tape.
2.
Using the measurement, expand the wall plate of the
mount (Fig. 1) enough so that both mounting arms
can fit over the crossbar when they are attached to the
display (Fig. 4). Be careful not to extend the mount
wider than the display.
3.
Place the wall plate against the wall and level it using
the bubble guide.
4.
With the help of another person, mark off four (4) or six
(6) locations for fixing the mount to the wall.
5.
Place the wall plate aside and drill a hole at each
location using a 5/16" (8 mm) masonry bit. Remove any
excess dust from the holes.
6.
Insert one Concrete Anchor (P) into each hole. A
hammer can be used to lightly tap the anchors into
Fig. 1 - Expand the mount
place if necessary.
to fit your display.
7.
With the help of another person, replace the wall
plate and level it using the bubble guide. Fix it to the
wall using the Lag Bolts (Q) and Lag Bolt Washers (R)
provided (Fig. 1).
8.
Do not over-tighten the screws and do not release the
wall plate until all screws are secure.
9.
Attach the cable manager to the middle of the top
crossbar (Fig. 3).
Attaching the Arms to
the Display
1.
Examine the back of your television. If the back of your
display is flat, you will be using one of the shorter bolts
from the hardware kit. If the back of your display is
curved or recessed, you will be using one of the longer
bolts and a spacer (Fig. 5).
For displays with flat
backs...
For displays with curved
or recessed backs...
Fig. 3 - Attach the cable manager
to the crossbar.
Fig. 5 - Use a longer bolt and spacer for displays
with curved or recessed backs. Do not use the M6
Washer (O) if you are using the M8 Bolts (J or K).
2.
Determine the correct diameter bolt to use by trying
If your display weighs more than 50 kg one bolt each from Bags 1 - 4 of the hardware kit. Do
not force any of the bolts – if you feel resistance stop
immediately to avoid damaging your display.
3.
Expand the mount arms so that they will reach both
the top and bottom mounting holes on your display.
Only expand the arms far enough to reach the holes.
4.
Attach the arms to the back of your display using the
bolts identified in Steps 1 and 2 and the corresponding
Lock Washer (C, F, I, or L) (Fig. 5) You will need to use
the M6 Washers (O) if you are using the M4, M5, or M6
bolts. If your display has a curved or recessed back, you
may also need to use a Spacer (M or N). Make sure all
screws are snug, but do not over-tighten.
Fig. 6 - Set the tilt angle.
Final Installation & Adjustment
1.
With the help of another person, carefully lift your
display and place it on the wall plate (Fig. 7). To avoid
Fig. 4 - Attach the arms to
damage to the wall, allow the tilt legs to come into
the back of your display.
contact with the wall slowly. Do not release the display
until the mounting arms have securely hooked onto the
Important!
crossbars!
Unplug your flat panel TV 2.
Move the safety tab located on each arm into position
before starting this step of
to avoid having the display accidentally lifted from the
the installation.
mount. A padlock can be inserted into one of the tabs
to help prevent theft of your display (Fig. 7).
Use extra care during this
part of the installation.
Avoid laying your display
face down if possible as it
may damage the viewing
surface.
NEVER lay the TV face
down as this may cause
damage to the viewing
surface.
3.
The cable manager can be used to keep your power
cord and other cables in order.
4.
To change the tilt position, have one person carefully
pull the bottom of the display away from the wall.
Have a second person adjust the feet on the bottom
For displays with curved
of each mounting arm to the desired position (Fig. 6).
or recessed backs...
Once finished, carefully lower the display back against
the wall.
Specifications
Fig. 5 - Use a longer bolt and spacer for displays
with curved or recessed backs. Do not use the M6
Washer (O) if you are using the M8 Bolts (J or K).
Model:
Description:
TV Size Range:
Maximum Load:
Minimum Profile:
Maximum Hole Pattern:
Tilt:
Universal VESA Compatibility
Integrated Bubble Level
Cord Management
5.
Set the tilt angle by
adjusting the foot located
on the bottom of each
arm (Fig. 6). When the
foot is fully extended, the
tilt is approximately 0
degrees. Make sure both
feet are set to the same
angle.
Fig. 7 - A small padlock
can be used to help
prevent theft of your
display (padlock not
included).
MAF90BK
Two-piece, low-profile design
RCA Universal LCD/Plasma
TV Wall Mount
27" – 60"
198 lb (90kg)
3.7" (9.4 cm)
31.9" x 20.1" (810mm x 510mm)
+/- 0-15°
