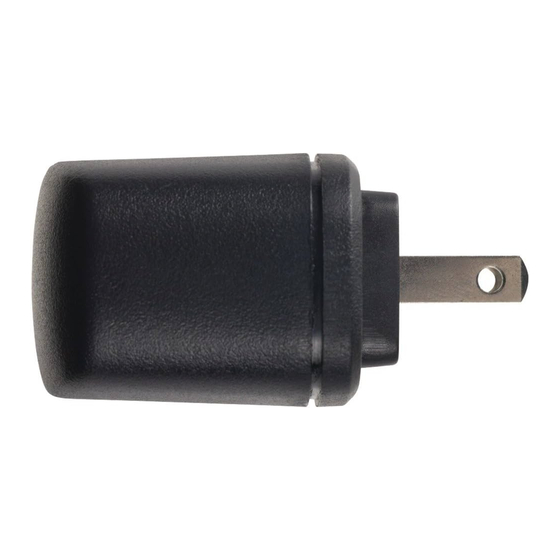

RCA AH3WH User Manual

Universal ac/dc adapter.
Hide thumbs


Advertisement

The RCA brand Universal AC/DC Adapter
allows you to power portable devices
requiring 300mA or less (AH3WH)
or 500mA or less (AH5WH) using a
conventional AC electrical outlet.
Instructions:
1. Set the voltage selector switch to
the proper setting for your device.
Refer to the device's user manual
for the correct voltage requirement,
or determine the voltage by
multiplying the number of AA,
AAA, C, or D batteries required by
1.5—for example, 4 batteries x 1.5m
= 6 volts.
Note: Voltage setting may also be
found next to the DC jack or on device
information plate.
2. Select the adapter plug tip that
best fits device.
3. Before inserting the plug tip into
the AC adapter receptacle, you
must first determine the correct
polarity of your device. Polarity
is represented by the following
symbols.
Universal AC/DC Adapter
AH3WH/AH5WH User's Guide
Note: Polarity information may be found
next to the DC jack, user manual, or
device information plate. The adapter
plug tips have a positive (+) symbol
on one side and a negative (-) symbol
on the other side. The AC adapter
receptacle says "TIP" on one side.
4. If your device has positive polarity,
align the word "Tip" on the AC
adapter receptacle with the (+)
symbol on the adapter plug tip. See
diagram below.
If your device has negative polarity,
align the word "Tip" on the AC
adapter receptacle with the (-)
symbol on the adapter plug tip. See
diagram below.
5. Connect adapter plug tip into DC
jack of your device.

Advertisement

   Also See for RCA AH3WH

   Related Manuals for RCA AH3WH

No related manuals

   Summary of Contents for RCA AH3WH

  • Page 1

    Universal AC/DC Adapter AH3WH/AH5WH User’s Guide The RCA brand Universal AC/DC Adapter Note: Polarity information may be found next to the DC jack, user manual, or allows you to power portable devices device information plate. The adapter requiring 300mA or less (AH3WH) plug tips have a positive (+) symbol or 500mA or less (AH5WH) using a on one side and a negative (-) symbol conventional AC electrical outlet. on the other side. The AC adapter receptacle says “TIP” on one side.

  • Page 2

    2. This AC adapter should never be IMMEDIATELY unplug the AC used with any device that requires adapter and recheck the instructions more than 300mA (AH3WH) or 500mA carefully, particularly the voltage and (AH5WH) of current. polarity settings. 3. Disconnect the AC adapter from electrical outlet when not in use.

  • Page 3

    Adaptador Universal de CA/CC Guía del Usuario de AH3WH/AH5WH El Adaptador Universal de CA marca RCA le Aviso: La información sobre la polaridad podrá encontrarla junto al conector de CC, permite alimentar dispositivos portátiles que en el manual del usuario o en la placa de requieren 300mA o menos (AH3WH) o 500mA información del dispositivo. Las puntas del o menos (AH5WH) a través de una toma de enchufe del adaptador tienen un símbolo...

  • Page 4

    2. Este adaptador de CA nunca deberá 7. Si su dispositivo no funciona, desenchufe utilizarse con un dispositivo que requiera INMEDIATAMENTE el adaptador de CA más de 300mA (AH3WH) o 500mA y vuelva a revisar las instrucciones con (AH5WH) de corriente. mucho cuidado, prestando especial 3.
