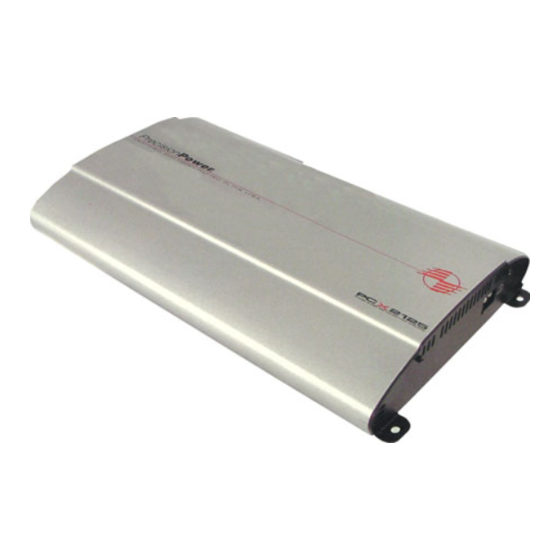

- Page 1 2125 2200 2400 PrecisionPower 9235 South McKemy Street, Tempe, Arizona 85284 www.precisionpower.com 8900-4004...
- Page 2 @ 30, 36, 44, or 60Hz Crossovers 12dB/Octave Crossover Frequency 30-4kHz SOUND IS NOW IN Idle Current: PCX 2125 1.5 Amps PCX 2200 2 Amps OPPOSITE CHANNEL SAME CHANNEL PCX 2400 3 Amps Problem is in the head unit Problem is in the RCA cables...
- Page 3 You may also want to add a power distribution block near your amplifiers to distribute large gauge power cable to multiple amplifiers. Amplifier Maximum Fuse Rating PCX 2125 60 Amp PCX 2200 80 Amp PCX 2400...
- Page 4 Before beginning, disconnect the negative (-) terminal of the battery prior to working on the positive (+) terminal to prevent a short to ground. This is important, unless you want to spend the rest of your life with a nickname like "Sparky," or "Smokey."...
- Page 5 The Power/Ground PowerLock™ will accommodate 4 gauge wire the amplifier on all sides. for the PCX 2125, PCX 2200 and PCX 2400. NOTE: Low battery voltage will cause the amplifier to run warmer and possibly damage the amplifier.
- Page 6 NOTE: The System Diagrams beginning on page 15 show several ways to use the virtually unlimited PCX™ amplifiers internal crossovers in your system. PCX 2125, 2200, 2400 Control Panel 1. Adjust all amplifier input gain controls to just above minimum sensitivity (fully counterclockwise).
- Page 7 There are two sets of RCA jacks on the front end of your amplifier. The RCA Run the speaker wires from the amplifier location through the vehicle to the cables from your source unit go in the set labeled INPUTS. If your source unit doesn't speakers.
- Page 8 QBASS™ frequency up to +18dB. To manage the additional heat associated with higher output capability, a thermally controlled fan has been designed into the PCX 2125, PCX 2200 and PCX 2400. 3. QBASS™ Remote Port: Port to plug in the optional QBASS Plus™ Remote When the heatsink temperature reaches a pre-determined value, the fan is knob.
- Page 9 The ability to run stereo speakers while simultaneously running a mono output Locate an area near the amplifier(s) that is metal and clean an area about the size from the same amplifier is accomplished by running the stereo speakers normally of a quarter to bare metal.
- Page 10 The following is a basic formula to be used as a guide to determine current draw. A50% amplifier efficiency rating is used as an average. Your new P C X™ a m p l i f i e r is more efficient than most other amplifiers. This formula is to be used as a guideline. Using wire of a larger gauge can only improve the current transfer of your system.
- Page 11 On PCX 2125, PCX 2200 and PCX 2400 amplifiers, we've taken bass control to a higher level with QBASS PLUS™. The two QBASS™ switches (labeled 1 and 2) on the front end of the amplifier allow you to select one of four frequency cen- ters 30Hz, 36Hz, 44Hz and 60Hz, with a Q-Factor of 2.
- Page 12 Three-Year Limited U.S.A Warranty This warranty gives you specific legal rights, and you may also have other rights which vary from state And thank you for choosing PrecisionPower audio equipment. At PrecisionPower to state. PrecisionPower warrants its products to be free from defects in materials and workmanship we proudly design, engineer and manufacture audio products at our production under normal use and service for a period of three (3) years from the date of original purchase when the unit is installed by an Authorized Dealer.
