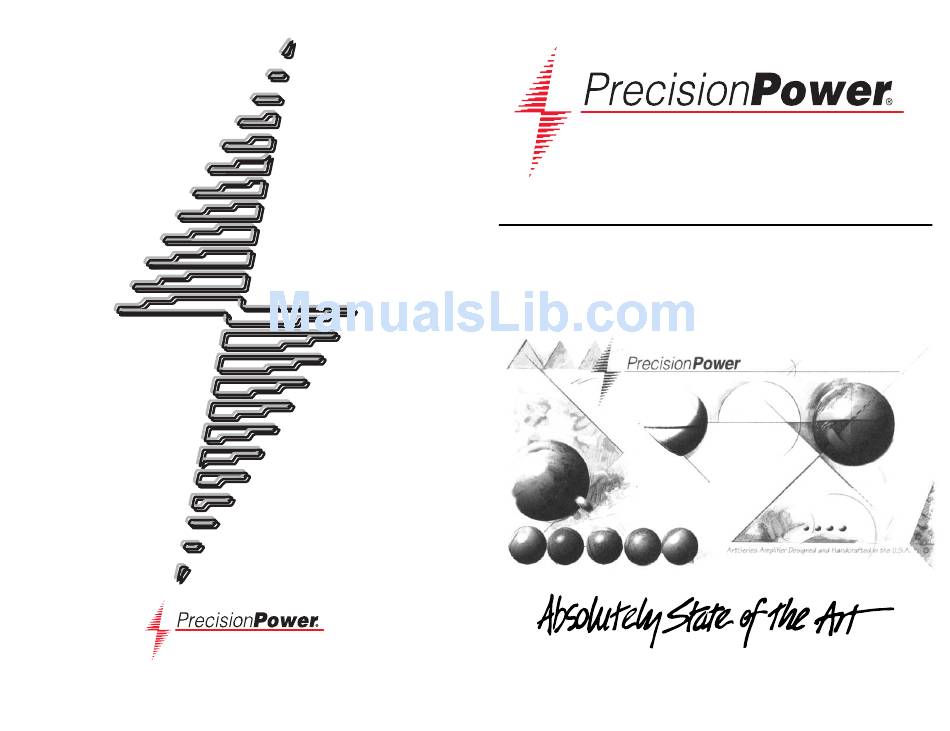

- Page 1 ArtSeries Amplifiers Owner's Manual A100. / A200. / A300. A600. / A1200. A204. / A404. 7402 W. Detroit Street Suite 180 Chandler, AZ 85226 1-800-62-POWER Designed and Handcrafted in the USA...
- Page 2 Mobile Audio Electronics CONGRATULATIONS AND THANK YOU for your choice of a PrecisionPower, Inc. high performance mobile audio amplifier. PrecisionPower is proud to be a world leader specializing in the design, engineering, and manufacture of "State of the Art" mobile audio electronics.
-
Page 3: Table Of Contents
Important Safeguards The following list of 'Important Safeguards has been compiled to help you achieve optimum satisfaction and the highest quality performance from your new mobile audio amplifier. Please take the time to review these safeguards before operation and or installation of your new Art Series amplifier. Read Instructions We all have a tendency to read instructions only after something doesn't work as anticipated. -
Page 4: Features
Features A100.2 / A200.2 / A300.2 A600.2 / A1200.2 / A404.2 / A204.2 Pulse-Width Modulated (PWM) Switching Power Supply for High-Efficiency Regulated Power Supply Provides Full Rated Power from 11 - 15 VDC... -
Page 5: Technical Specifications
Technical Specifications Art Series Model: A100. A200. Continuous Power Output per Channel: 25 Watts 50 Watts 4 Ohms, 11-15 VDC, Stereo: 50 Watts 100 Watts 2 Ohms, 11-15 VDC, Stereo: 4 Ohms, 11-15 VDC, Bridged: 100 Watts 200 Watts Power Fuse: 20 Amp 20 Amp Dimensions (inches):... - Page 6 the heat from the components to the heatsink. The heatsink, in turn, must dissipate this heat or become too hot for the internal components to operate properly. The heat can be transferred from the heatsink by three different processes: Conduction, Radiation, or Convection.
-
Page 7: Installation
The advanced protection circuit Watts was developed to prevent shut- off due to the fluctuating imped- ance loads presented by today's complex speaker systems. The adaptive circuit optimizes output power to maintain uninterrupted operation whenever the amplifi- er senses an impedance load of less than 2 ohms. - Page 8 Tools / Parts Needed for Installation (not supplied): Small flat blade screwdriver Phillips screwdriver Wire cutters Wire strippers Soldering iron Solder Flux cleaner 5 washers, 4 #6 and 1 #8 sheet metal screws 2 - ring connectors In-line fuse holder and fuse Speaker wire - 16 gauge or larger Power and Ground wire - 12 gauge or larger Heatshrink...
- Page 9 Remote Turn-On In order for the amplifier to turn on, a remote turn-on wire must be connected to a switched 12 volt source. Typically, the source unit provides a power antenna (remote) turn on lead which will turn on the amplifier when the source unit is activat- ed.
-
Page 10: System Tuning
Low Impedance Indicator AM II circuitry will lower output power to maintain uninterrupted operation whenever the amplifier senses an impedance load of less than 2 Ohms. The Low Impedance Indicator (left-side end panel) is provided to let you know when the amplifier is operating in this mode. -
Page 11: Troubleshooting
TROUBLESHOOTING If for some reason your system fails to operate properly, please refer to this guide. If you are unable to resolve the problem, consult your Authorized PPI Dealer or call 1-800-62-POWER. NO SOUND Is the power LED illuminated? Check fuses in power wire. Be sure turn-on lead is connected.
