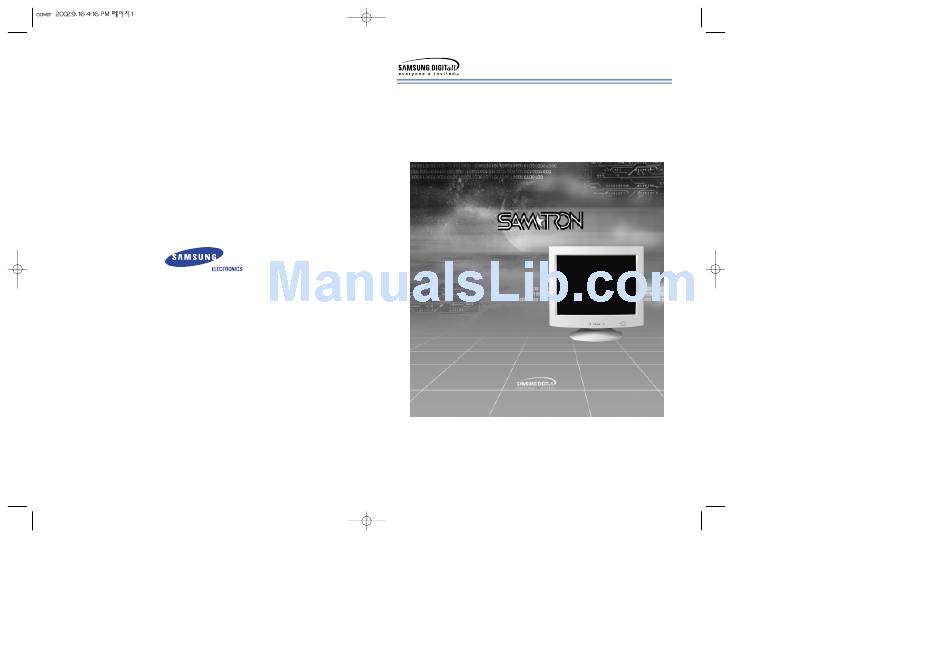

- Page 1 SAMTRON 76DF http://www.samsung-monitor.com http://www.samsungusa.com/monitor BH68-00434Q-00...
-
Page 2: Table Of Contents
Contents English Safety Instructions Unpacking Your Monitor Setting up Your Monitor Connecting Your Monitor Installing the Monitor Driver Automatic Manual Self-Test Feature Check Werning Messages Environment Useful Tips Adjusting Your Monitor User Controls Menu Features OSD Lock/Unlock Brightness Contrast H-Position V-Position H-Size V-Size... -
Page 3: Safety Instructions
Safety Instructions Unpacking Your Monitor Do not use a damaged or loose plug. Monitor and Stand Do not pull the plug out by the wire nor touch the plug with wet hands. Use only a properly grounded plug and recepticle. Do not excessively bend the plug and wire nor place heavy objects upon them, which could cause damage. -
Page 4: Setting Up Your Monitor
5. If you can see following “Message” window, then click the “Continue Anyway” button. Then click “OK” button. This monitor driver is under certifying MS logo,and this installation don't damage your system. The certified driver will be posted on SAMSUNG Monitor Homepage http://www.samsung-monitor.com 6. Monitor driver installation is completed. -
Page 5: Manual
This monitor driver is under certifying MS logo,and this installation don't damage your system. If you can see the “Digital Signature Not Found” window then click the “Yes” button. The certified driver will be posted on SAMSUNG Monitor Homepage And click the “Finish” button then the “Close” button. -
Page 6: Self-Test Feature Check
Setting up Your Monitor Setting up Your Monitor Microsoft ® Windows ® Millennium Operating System Linux Operating System 1. Click “Start” , “Setting” , “Control Panel”. To execute X-Window, you need to make the X86Config file, which is a type of system setting file. 2. -
Page 7: Werning Messages
Setting up Your Monitor Adjusting Your Monitor User Controls Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears during normal operation if the video cable becomes disconnected or damaged. 4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system;... -
Page 8: Osd Lock/Unlock
Adjusting Your Monitor OSD lock/unlock H-Position Follow these instructions to change the Position of Push and hold in the Menu ( ) button for 10 seconds or the monitor’s entire display. more to Lock the OSD. (In this case, even if you click the Menu button ( ), the control screen will not be printed.) With the menu off, push the menu (... -
Page 9: V-Size
Adjusting Your Monitor Adjusting Your Monitor V-Size Trapezoid Follow these instructions to change the Size of Adjust the trapezoid setting when the top or bottom of the display is too large or small. the monitor’s entire display. With the menu off, push the menu ( ) button. -
Page 10: Rotation
Adjusting Your Monitor Adjusting Your Monitor Rotation V-Linearity Adjust the rotation setting when the entire display Adjust the linearity setting when the display image is is tilted left or right. compressed at the left, right or top, bottom. With the menu off, push the menu ( ) button. -
Page 11: Language
Adjusting Your Monitor Adjusting Your Monitor Language V-Moire Follow these steps to change the language used in the menu. A “Moiré” pattern can appear on your screen, looking like a You can choose one of ten languages. series of concentric circles or arcs. To eliminate this pattern, English,German,French, Italian, Portuguese, Spanish, Swedish, use the clear moiré... -
Page 12: Color Temperature
Adjusting Your Monitor Adjusting Your Monitor Color Temperature Degauss Color temperature is a measure of the “warmth” of the image The Degauss feature will remove color impurities caused by colors. The available range is between 6500 to 9300K. magnetic fields. You can use this function to turn on the power of the monitor or change the power saving mode to the normal mode. -
Page 13: Display Timing
This monitor is EPA ENERGY STAR compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality. ® As an ENERGY STAR Partner, SAMSUNG has determined that this product ® meets the ENERGY STAR guidelines for energy efficiency. -
Page 14: Troubleshooting
Troubleshooting Troubleshooting Before calling for service, check the information in this section to see if you can solve the problem yourself. If you do need assistance, please call the phone number on the warranty card, the phone number on the Information section or contact your dealer. Check List Check List Symptom... -
Page 15: Specifications
Troubleshooting Specifications SAMTRON 76DF Check List General Symptom Check List Solution Model Name SAMTRON 76DF Picture Tube LED is blinking but no images Is the frequency properly Adjust the frequency properly by Type 17"(43cm) DynaFlat X (40.6cm viewable) adjusted when checking the referring to the video card manual on the screen. -
Page 16: Display Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. SAMTRON 76DF Horizontal Vertical...
