Summary of Contents for Samsung SAM-14MV
- Page 1 SAM-14MV...
-
Page 2: Important Safety Instruction
IMPORTANT SAFETY INSTRUCTION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (includ- ing amplifiers) that produce heat. -
Page 3: Installation
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS MONITOR TO RAIN OR MOISTURE.DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION Explanation of Graphical Symbols. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient mag- nitude to constitute a risk of electric shock to persons. -
Page 4: Location Controls

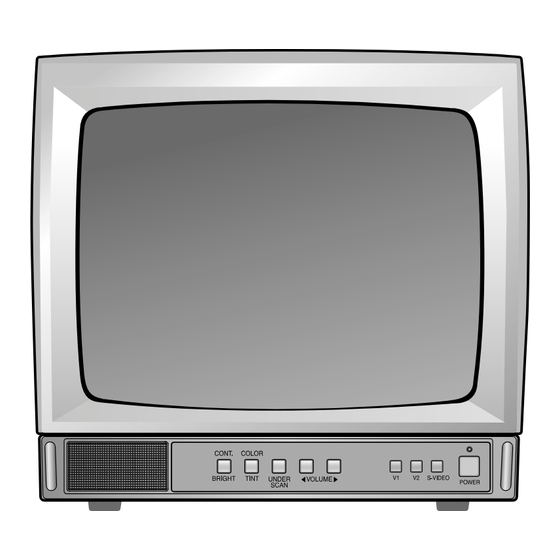

LOCATION CONTROLS Front View Rear View 1213 14 15 16 20 Side View 1. BRIGHT/CONT. 13. VIDEO 2 IN 2. TINT/COLOR 14. VIDEO 1 OUT 3. UNDER SCAN 15. VIDEO 2 OUT 4. VOLUME DOWN 16. S-VIDEO 5. VOLUME UP 17. - Page 5 LOCATION AND OPERATION OF CONTROLS 1. CONTRAST/ BRIGHTNESS After press this button, adjust the CONTRAST/BRIGHTNESS control for the desired overall display by press vol-( ) and vol+( ) buttons. 2. COLOR/ TINT After press this button, adjust the COLOR control to set the color saturation level and TINT control for the proper color phase or flesh tones by press vol-( ) and vol+( ) buttons.
-
Page 6: Possible Connections
POSSIBLE CONNECTIONS Read the installation/operation manual thoroughly before connecting equipment. Turn off the power source before connecting the monitor and external equipment. VIDEO 1 Connection (Select input VIDEO 1 button) Audio Audio signal cable Video Video camera Video signal cable Video Monitor VIDEO 2 Connection (Select input VIDEO 2 button) Audio... -
Page 7: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS All the safety and operating instructions should be read before the monitor is operated. Retain the instructions for future reference. 1. HEED WARNINGS All warnings on the monitor and in the operating instructions should be adhered to. 2. -
Page 8: Specifications
SPECIFICATIONS Picture Tube 14-inch diagonal,90 deflection angle Power Source 100-240V AC, 50/60 Hz Power Consumption 45 Watts System PAL / NTSC Sound output 1.0 W Resolution Center resolution : 450 TV lines or more Speaker 3 W , 70 mm X 40 mm Terminals Video input level/impedance: 1.0 Vpp/75 Video output level/impedance: 1.0 Vpp/75... - Page 10 Samsung Haus, Am Kronberger Hang 6, 65824, Schwalbach, TS. Germany TEL: 49(0)6196-667500 FAX: 49(0)6196-667566 SAMSUNG OPTO-ELETRÔNICA DO BRASIL LTDA. Rua Professor Manoelito de Ornellas 303 • 2º andar Chácara Santo Anto ˆnio • CEP : 04719-040 São Paulo • SP • Brasil...
