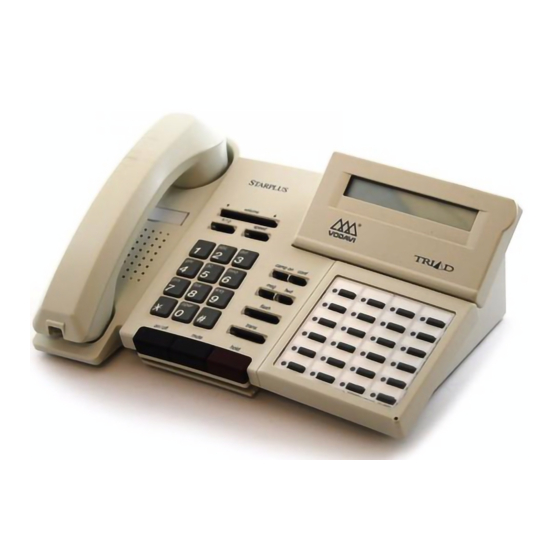

Vodavi Triad-S 1-2-3 Single Line User Manual
  1. Manuals
  2. Brands
  3. Vodavi Manuals
  4. Telephone
  5. Triad-S 1-2-3 Single Line
  6. User manual

Vodavi Triad-S 1-2-3 Single Line User Manual

Single line telephone feature package 3
Hide thumbs Also See for Triad-S 1-2-3 Single Line:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Feature Package 3
TRIAD -S, 1/2/3
Single Line
T elephone User Guide
a new dimension in business communications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Triad-S 1-2-3 Single Line and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vodavi Triad-S 1-2-3 Single Line

Summary of Contents for Vodavi Triad-S 1-2-3 Single Line

  • Page 1 Feature Package 3 TRIAD -S, 1/2/3 Single Line T elephone User Guide a new dimension in business communications...

  • Page 2: Single Line Telephone

    TRIAD -S, 1/2/3 Digital Telephone Systems (Feature Package 3) Single Line Telephone User Guide Issue 3.1 - September 2000 P/N: 8053-00...
  • Page 3 Copyright Laws of the United States (17 U.S.C. Section 101 et. seq.). VODAVI reserves the right to make changes in specifications at any time and without notice. The information furnished by VODAVI in this material is believed to be accurate and reliable, but is not warranted to be true in all cases.

  • Page 4: Table Of Contents

    Contents Account Codes ................1 Call Back ..................... 1 Call Forwarding ................2 All Calls ..................2 Busy/No Answer ..............2 Forward Override ..............2 Remove Call Forward, DND, & Personalized Msgs ..3 Station Off-Net Call Forward (via Speed Dial) ....3 Call Park ....................
  • Page 5 September 2000 Least Cost Routing ................. 9 LCR Operation and Queuing ..........9 LCR Queue Call Back ............. 9 Meet Me Page ................10 Answering a Meet Me Page ..........10 Message Waiting (MSG) ............10 Answering a Message Waiting ........10 Leaving a Message Waiting Indication ......

  • Page 6: Account Codes

    Account Codes Account Codes SLT stations can enter an account code to identify the call or the calling station. Entering Account Code before a call: 1. Lift the handset. 2. Dial [627]. 3. Dial the account code. 4. Dial [9] or CO Access code. A dial tone is heard. 5.

  • Page 7: Call Forwarding

    Call Forwarding Call Forwarding All Calls 1. Lift the handset. 2. Dial [640 + 6]. 3. Dial station number where calls are to be forwarded. 4. Replace the handset. Busy/No Answer 1. Lift the handset. 2. Dial [640]. 3. Dial the desired call forward code: [7] = No Answer calls [8] = Busy calls [9] = Busy/No Answer calls...

  • Page 8: Remove Call Forward, Dnd, & Personalized Msgs

    Call Park Remove Call Forward, DND, & Personalized Msgs A convenient code has been incorporated to cancel either Call Forwarding, Do Not Disturb, or Personalized Messages when the SLT user has forgotten which mode is active on the phone. 1. Lift the handset. A notification tone is heard. 2.

  • Page 9: Station Park

    Call Park 4. Depress hookswitch momentarily. An intercom dial tone is heard. 5. Dial [438]. (The 1st call is returned and the 2nd call is placed in Personal Park). The user can alternately connect to the other call by doing a hook flash and dialing [438] as many times as necessary.

  • Page 10: Call Pickup

    Call Pickup To Retrieve a Parked Call: 1. Lift the handset. 2. Press the pound [#] key. 3. Dial Park Location (430 to 437) where the call was parked. Call Pickup Directed Call Pickup Upon hearing an unattended telephone ringing: 1.

  • Page 11: Making An Unscreened Transfer

    Camp-On Making an Unscreened Transfer 1. Briefly depress and release the hookswitch. 2. Dial desired intercom number. 3. Hang up to complete transfer. PBX/Centrex Transfer While connected to a PBX or Centrex CO Line: 1. Briefly depress and release the hookswitch. An intercom dial tone is heard.

  • Page 12: Receiving A Camp-On

    CO Line Queuing Receiving a Camp-On When a Camp-On warning tone is received through the handset while you are on a CO call, you can: Hang up the present call, take the new call, or ignore the Camp-On signal. Conference w/Personal Park Also refer to the feature.

  • Page 13: Conference W/Personal Park

    Do Not Disturb (DND) Conference w/Personal Park While connected to an outside line: 1. Depress hookswitch momentarily. An intercom dial tone is heard. 2. Dial [438]. (The first call is placed in Personal Park). 3. Dial desired number for second call. 4.

  • Page 14: Least Cost Routing

    Least Cost Routing Least Cost Routing LCR Operation and Queuing To place an outside call when LCR has been enabled: 1. Lift the handset. 2. Dial [9]. 3. Dial desired phone number (1 + area code + number). 4. Wait for answer. If the 911 feature is active, [800] is the LCR access code, instead of 9.

  • Page 15: Meet Me Page

    Meet Me Page Meet Me Page To request another party meet you on a page: 1. Dial the desired two or three-digit paging code, 2. Request that party meet you on the page. 3. Do not hang up; wait for the requested party to answer. Answering a Meet Me Page Go to the nearest telephone: Dial [770].

  • Page 16: Name In Display Programming

    Name in Display Programming Name in Display Programming Every SLT extension has the capability to program the user’s name so that people using display telephones will see the name instead of the station number. 1. Lift the handset. 2. Dial [690]. 3.

  • Page 17: Off-Hook Preference

    Off-Hook Preference Off-Hook Preference If your phone is programmed for Off-Hook Preference, you will hear outside line dial tone when lifting the handset. When this operation is desired, you may not have access to all features contained in this User Guide. However, consult your Centrex or PBX User Guide for additional features you may have.

  • Page 18: Personalized Messages

    Personalized Messages 3. Speak in normal tone of voice to deliver message. 4. Replace handset to terminate the page announcement. Stations off-hook or in DND will not hear the page announcement. Personalized Messages Each station can select a pre-assigned message to be displayed on the LCD of any Key Telephone calling that station.

  • Page 19: Placing Calls

    Placing Calls Placing Calls Intercom Call 1. Lift the handset. 2. Dial three-digit intercom number. You will hear: Ringing if called station is in “T” answering mode, -or- Two bursts of tone if called station is in “H” or “P” mode.

  • Page 20: Storing Station Speed Numbers

    Universal Day/Night Answer Storing Station Speed Numbers CO Lines in Line Group 1 will be used for SLT Speed Dial. 1. Lift the handset. 2. Dial [661]. 3. Dial desired speed number bin (000-019). 4. Dial telephone number you wish to store. 5.

  • Page 21: User Worksheets

    User Worksheets User Worksheets Station Speed Dial Numbers Speed Number Speed Number...

  • Page 22: Slt Default Numbering Plan

    User Worksheets SLT Default Numbering Plan Feature Code Feature Code Account Code, Enter Flash Command to CO Line ACD* Agent Help Handset Receiver Gain 638+[G] Agent Login (Primary Grp) 572+[5UU] Hunt Group Pilot Numbers 45+[H] Agent Login (Secondary Grp) 582+[5UU] LCR or Line Grp 1 (LCR enabled) Agent Logout (Primary Grp) 571+[5UU] LCR Queue Cancel Agent Logout (Secondary Grp) 581+[5UU] Line Queue...
  • Page 23 User Worksheets...
  • Page 24 1999 Vodavi Technology, Inc. © VODAVI is a registered trademark of Vodavi Technology, Inc. 8053-00...

This manual is also suitable for:

Triad-s 1Triad-s 2Triad-s 3
