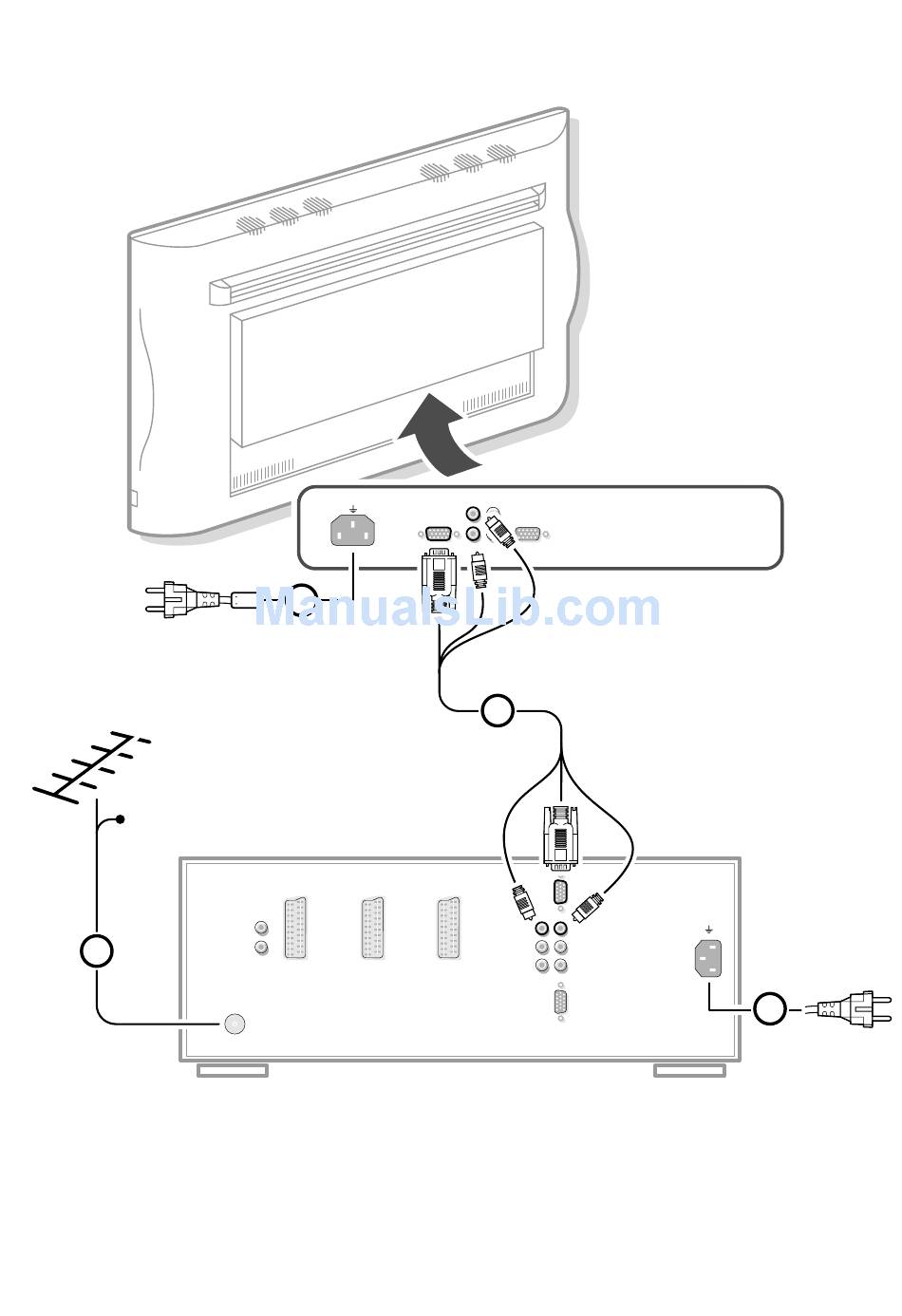

CABLE
AUDIO
L
1
R
OUT
ANTENNA
MAINS INLET
AUDIO IN
VGA IN
3
EXTERNAL 1
EXTERNAL 2
EXTERNAL 3
IN / OUT
IN / OUT
IN
L
AUDIO OUT
VGA OUT
R
2
OUT
VGA MONITOR
L
R
OUT
AUDIO MONITOR
NO FUNCTION
SURROUND SOUND CENTER IN
IN
AUDIO MONITOR
L
R
IN
VGA MONITOR
MAINS INLET
4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FTR9952/12S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philips FTR9952/12S

Summary of Contents for Philips FTR9952/12S

  • Page 1 MAINS INLET AUDIO IN AUDIO OUT VGA IN VGA OUT CABLE EXTERNAL 1 EXTERNAL 2 EXTERNAL 3 VGA MONITOR AUDIO MAINS INLET AUDIO MONITOR NO FUNCTION SURROUND SOUND CENTER IN AUDIO MONITOR IN / OUT IN / OUT VGA MONITOR ANTENNA...

  • Page 2: Table Of Contents

    Contents Installation Your remote control 2 Preparation 3 Installation 5 Store TV channels 5 Select the menu language and country 5 Automatic installation 6 Manual installation 6 Give name 7 Reshuffle the programme list 7 Select favourite TV channels 7 Define decoder/descrambler programme numbers 8 Install TV setup 9 Operation...

  • Page 3: Installation

    Your remote control VCR 1 TUNER selection of VCR 2 TAPE FRONT TV channels p. 10 peripheral selection with remote control switch to standby p. 10 TV selection b dual screen on/off p. 17 select your choice p. 5 activate your choice volume up/down p.

  • Page 4: Preparation

    Preparation Place the receiver box wherever you want, but leave at least 5 cm space free all around the box for ventilation and do not cover the ventilation openings, (e.g. on the ground, in a cupboard, behind a wall, in another room..). To prevent any unsafe situations, do not place any objects on top of the monitor or the receiver.
  • Page 5 With the simplified remote control supplied with the monitor you can: • switch menu on or off with the MENU • select a menu or menu item with the cursor keys • activate the selection you made with the OK key •...

  • Page 6: Installation

    PICTURE SMART SOUND Installation Select the menu INSTALLATION Open the door of the remote control. Press at the same time. To use the menus Use the cursor in the up/down, left/right directions to select a menu item. Press the OK key to activate. Press one of the colour menu keys on the door of the remote control to VCR 1 TUNER...

  • Page 7: Automatic Installation

    Automatic installation In the Automatic installation menu select with the cursor left/right and AUTOMATIC Automatic Installation press the OK key to activate the searching. All TV channels are searched for INSTALLATION and stored automatically. Wait until the message is displayed at the bottom of the screen. Ready Searching O%.....100%...

  • Page 8: Give Name

    Give name It is possible to change the name stored in the memory or to assign a name Menu Language to a TV channel for which a name has not yet been entered. A name with up INSTALLATION Country to 5 letters or numbers can be given to the programme numbers 0 to 99. For Automatic Installation example SUPER, BBC1,...

  • Page 9: Define Decoder/Descrambler Programme Numbers

    Define Decoder/Descrambler programme numbers If a decoder or a descrambler is connected, see p. 20, you can define one or more programme numbers as decoder programme numbers. Select in the menu and press the Decoder/Descrambler INSTALLATION Programme OK key. DECODER/ Decoder Status DESCRAMBLER Select the programme number with the cursor up/down.

  • Page 10: Install Tv Setup

    Install TV Setup Menu Language INSTALLATION Country The Setup menu allows you to adjust initial settings, i.e. those which are not Automatic Installation related to the installation of the TV channels. Manual Installation Give Name The Setup menu contains items that control the settings of the TV’s functions, Reshuffle features, services and peripherals you may have connected.

  • Page 11: Operation

    Operation Use of the remote control Select your computer or other peripherals Press this key repeatedly to select EXT1, TV channels EXT2, EXT3 FRONT, VGA according to where you connected your peripherals (see p. 24). Standby Remark: in mode only some keys are valid. The set is switched off and the red indicator menu, p.

  • Page 12: Use Of The Remote Control

    Continuous subtitles TV channels with teletext often transmit certain programmes with subtitling. VCR 1 TUNER VCR 2 TAPE Switch on teletext and select the proper subtitle page from the index. Press to store the subtitle page. Switch off teletext. Every time a programme of the selected TV channel is subtitled, the subtitling will be menu (red key) PICTURE...
  • Page 13 VCR 1 TUNER VCR 2 TAPE Time display The time, downloaded from the TV channel (with teletext) stored on programme number 1 or the lowest favourite programme number greater than 1, is displayed in the upper left corner of the screen. This function is not available when continuous subtitles have been switched on.

  • Page 14: Use Of The Menus

    VCR 1 TUNER Use of the menus VCR 2 TAPE Press the red, green or yellow colour key to display/cancel the PICTURE menu. SOUND FEATURES Use the cursor in the up/down directions to select a menu item. activate Use the OK key to activate. Press the same menu key again to return or to switch the menu off.
  • Page 15 Incredible Surround Incredible Surround can only be selected when the sound of the TV channel is stereo. When is selected, it seems as though the Incredible Surround On loudspeakers are spread further apart from one another. Note: in case you have connected a Dolby audio receiver, select Incredible Surround .

  • Page 16: Features Menu

    Features menu Press the yellow key to display/cancel the menu. VCR 1 TUNER FEATURES VCR 2 TAPE Press the cursor up/down to select a menu item. Press the OK key to activate. Sleeptimer activate With the sleeptimer you can set a time period after which the TV should switch itself to standby.

  • Page 17: The Keys On The Front Of The Receiver Box

    Display message Switch the TV to standby. The message appears on the screen when the TV is switched on again. If you selected , the message will disappear from the screen after Once about 45 seconds. If you selected , the message will appear on the screen until the Continuous menu item in the Message menu is switched to or until the receiver...

  • Page 18: Dual Screen

    Dual screen Press the b key to switch on Dual Screen. The TV screen will be divided in 2 different pictures. The picture on the left side is the selected TV channel or external. VCR 1 TUNER VCR 2 TAPE The picture on the right side is the picture from the TV channel in the favourite programme list following or preceding the selected TV channel.

  • Page 19: Teletext

    Teletext Most TV channels broadcast information via teletext. VCR 1 TUNER Each channel which broadcasts teletext transmits a page with information on VCR 2 TAPE how to use its teletext system. Look for the teletext page with the main index (usually p. 100). Depending on the TV channel, teletext is transmitted in different systems: WST, FLOF or TOP.

  • Page 20: Teletext

    Select the index teletext page Press the key to display the main index (usually p.100). VCR 1 TUNER Only for T.O.P teletext broadcasts : VCR 2 TAPE T.O.P orders the pages in categories and adds other possibilities of enhancing ease of use. Press .

  • Page 21: Connect Peripheral Equipment

    Connect Peripheral Equipment There is a wide range of audio and video equipment that can be connected to your receiver.The following connection diagrams show you how to connect them to the back or the front side of the receiver. Note: in case of the monitor in a stand alone situation without the receiver box connected, see the instructions with the monitor.

  • Page 22: Sound

    Camera & camcorder Connect your camera or camcorder at the front side of your receiver. Connect the equipment to for mono VIDEO AUDIO L equipment. For stereo equipment also connect AUDIO R S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cables with the input inputs...

  • Page 23: Connect Your Computer

    Connect your computer Connect one end of a VGA cable supplied to the video card of the computer and the other end to the connector at the rear side of VGA MONITOR IN the receiver box or at the connector at the back of the monitor VGA IN in case you have no receiver box connected to the monitor.
  • Page 24 Daisy chaining The Active Loop Through facility makes it possible to make a daisy chain. Connect the monitors (max. 2) before inserting the mains plug in the wall socket. Connect another VGA cable to the connector at the back of VGA OUT the monitor and to the connector of a second VGA monitor.

  • Page 25: Menus

    To select connected equipment If the monitor is connected to a video recorder with the EasyLink function, in some cases the monitor will be switched on, even when it was in standby. (E.g. playback tape,...) This is not possible when Child lock On is selected. Equipment connected with an aerial cable only : Select the programme number under which you have stored the test signal with the digit keys.

  • Page 26: Remote Control Functions For Peripherals

    AUDIO to select a programme number from your video recorder, to switch off the video recording temporarily. These keys function with Philips video recorders. If your video recorder has the EasyLink function, the keys for record and stop under the door of the TV remote control, can be operated in the TV mode.

  • Page 27: Recording

    Record with your video recorder without EasyLink Ext2 Output To record S-VHS quality, connect an S-VHS peripheral directly to the video recorder. In this case go on as follows: Select in the menu and press the OK key. Setup INSTALLATION Select with the cursor up/down.

  • Page 28: Recording

    Record with your video recorder with EasyLink If you have connected an S-VHS video recorder provided with the EasyLink function, you can record S-VHS-quality from an S-VHS peripheral connected to the front side of the receiver. (E.g. from an S-VHS camcorder.) SOUND In TV mode, it is possible to start a direct recording of the programme which is being displayed on the TV screen.

  • Page 29: Tips

    Tips Poor Picture • In case of weak or bad signal, consult your End of life directives dealer. We are paying a lot of attention to using • Have you selected the correct TV system? environmentally-friendly production • Is your monitor or house aerial located Control of peripheral equipment methods.Your new flat colour television too close to loudspeakers, non-earthed...

  • Page 30: Glossary

    Glossary 100 Hz Picture Freeze 100 Hertz provides a superior solution to Dynamic Noise Reduction. TV mode which allows you to “freeze” a the problem of picture flicker which is By encoding signals digitally in 100 Hz sets certain image in order to study a specific particularly noticeable with larger screen with Digital Scan it is possible to clean up detail at ease, e.g.

  • Page 31: Use Of The Menus Picture Menu
