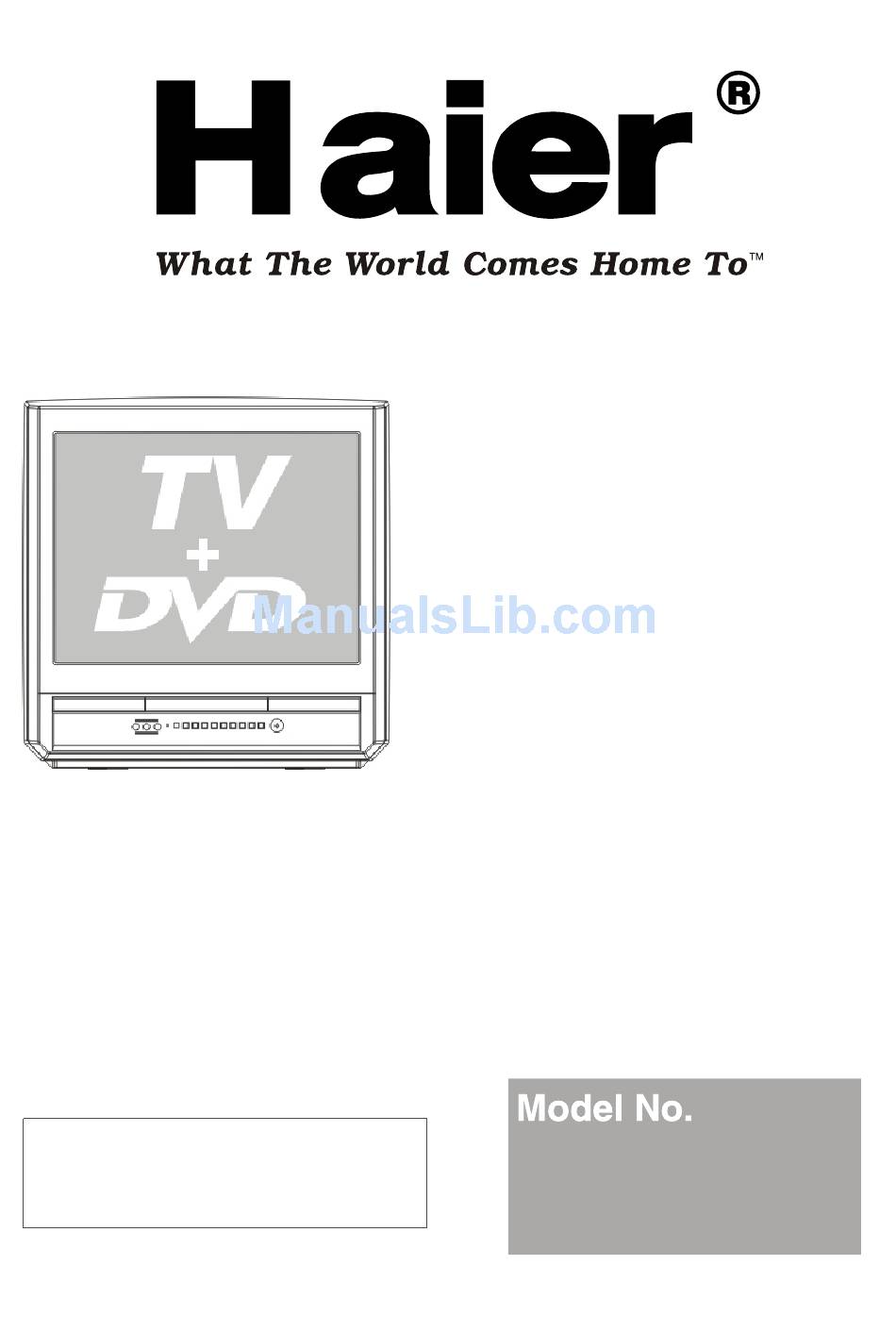

  • Page 1 " TV/DVD Combo USER MANUAL Please read this manual carefully TDC2014S before using this TV set and keep it for future reference. TDCF2014S...

  • Page 2: Table Of Contents

    PRECAUTIONS FCC WARNING-This equipment may CAUTION:USE OF CONTROLS OR generate or use radio frequency ADJUSTMENTS OR PERFORMANCE energy.Changes or modifications to this OF PROCEDURES OTHER THAN equipment may cause harmful THOSE SPECIFIED HEREIN MAY interference unless the modifications are RESULT IN HAZARDOUS RADIATION expressly approved in the instruction EXPOSURE.

  • Page 3: Important Safety Instructions

    Important safety Instructions CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DANGEROUS VOLTAGE Uninsulated Dangerous Voltage, that may be of sufficient magnitude to constitute a risk of electric shock, is present within the cabinet of this unit.
  • Page 4 Important safety Instructions 10. POWER SOURCES This unit should be operated only from the type of power source indicated on the rating plate. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For units intended to operate from battery power, or other sources, refer to the operating instructions.

  • Page 5: Installation

    Installation Antenna connection Generally speaking, to enjoy a clearer picture, we recommend that you use a CATV system or an outdoor antenna .In different places, the suitable antenna type and position may vary. Mixer (not incl.) Antenna/ CATV input standard coaxial type AC power socket Note:...

  • Page 6: Function Buttons And External Connections

    Function Buttons and External Connections Front panel the TV set Play the DVD Power Switch VIDEO L-AUDIO-R OPEN TV/DVD MENU PLAY STOP CLOSE Channel Position Stop the DVD Power Indicator Menu Signal Receiver up/down Open/close the DVD Video Audio Volume up/ down TV/DVD Rear panel of the TV set DVD Video Y input terminal...

  • Page 7: Using The Remote Control

    Using the Remote Control Buttons on the remote control Standby Power DVD Open/close OPEN/CLOSE POWER DVD/TV MUTE TV/DVD Mute Program Number CCD ( closed caption) Multi-digit Channel Selection Display Channel Recall Exit Screen Display DISPLAY EXIT RECALL I/II Menu Picture Mode P.STD TV/AV TV/AV Exchange...
  • Page 8 Remote Features Power Button: POWER To turn power ON or OFF , press power button on remote control. System and Channel Display Button: DISPLAY This will show you the current channel number. System will also be displayed if set. DVD/TV Button: DVD/TV Press this button to change between TV and DVD.
  • Page 9 Channel (+/-) Select Button: You can go up and down the channels by pressing CH (+) button and CH (-) button. This button can also be used in adjusting the functions in the Menu Mode. Menu Select Button: You can select the menu by pressing the MENU button. You MENU can call on the menu (PICTURE, TIME, TUNE andFUNCTION) VOL-...

  • Page 10: Menu Functions

    Information to user:This television receiver is equipped with close caption decoder and parental blocking technology as required by the FCC. Menu Functions Video Setup: Pressing MENU button once will bring the Video Setup menu on the TV. The following is shown on your TV screen: Video Picture Brightness...
  • Page 11 Audio Setup: By pressing MENU button ,and then pressing VOL(-/+) buttons it will bring you to Audio Setup display. You will see the following menu on your TV screen: Audio Volume Bass Treble Balance Surround Follow the procedure below to adjust the sound quality: 1.Press the CH(+) and CH(-) button to go up and down the menu.
  • Page 12 Timer Setup: By pressing MENU button ,and then pressing VOL(-/+) buttons it will bring you to Timer Setup display. You will see the following menu on your TV screen: Timer Clock 17:18 Time-on 18:00 Ch. Select Time-off --:-- Sleep Time Remind Time --:-- Ch.
  • Page 13 Function Setup: By pressing the MENU button, and then pressing VOL(-/+) buttons will bring you to Function Setup menu. You will see the following menu on your screen: Setup Language English Background Black Stretch Fade C. Caption Demo Mode 1.Press the CH(+) and CH(-) button to go up and down the menu. 2.Press the VOL(+) and VOL(-) button to increase and decrease the level to your preference for each item.
  • Page 14 Channel setup: By pressing MENU button ,and then pressing VOL-/+ button it will bring you to Channel Setup. You will see the following display on TV screen. Channel Channel System Auto Antenna Skip Current Ch. Fine Auto Program Follow the procedure below to select above options: 1.Press the CH(+) and CH(-) button to go up and down the menu.
  • Page 15 Calendar: Your TV has been designed with a calendar. By pressing MENU button ,and then pressing VOL(-/+) buttons it will bring you to Calendar. You will see the following display on TV screen. Calendar Calendar 2001 11 14 Follow the procedure below to adjust the Calendar quality: Press the CH( +/-) buttons to select the year item, the month item or the date item.
  • Page 16 V-CHIP Setup: Press the MENU Button on your remote control to go to Password menu, then input the password (0000). It will bring Parental Lock set up display on the screen. You will see the following menu on your screen: Parental Lock Passsword Password...
  • Page 17 When MPAA Rating is selected, you will see the following rating table on your TV screen. MPAA Rating P G - B NC-17 U Note: You can press CH(+/-) buttons to go up and down the menu, then press VOL(+) button to select "B"...
  • Page 18 V-Chip Technology: The "V-Chip Technology" allow you to use U.S. And Canada Movies and TV PROGRAMS Guide ratings to block certain types of TV programs and movies. To understand clearly about TV programs rating codes, read the following list: U.S. TV Program Ratings NR: Not Rated-this means that programs are not rated or rating does not apply.
  • Page 19 To understand clearly about movies rating codes, read the following list: U.S. Movies Rating Chart NR: This means movie is not rated yet. It is pending government rating approval. G:General Audience-this type of movie rating means all ages admitted to see the movie.

  • Page 20: Dvd Features

    DVD Features Basic Playback Preparations Preparations Stop playback Stop playback 1. Press STOP 1. Press STOP button to go to stop mode, the TV button to go to stop mode, the TV Press the DVD/TV button on the remote control screen will show the start logo.

  • Page 21: Advanced Playback

    Features(Continued) Advanced Playback Advanced Playback Advanced Playback IMPORTANT NOTE: ALL DESCRIBED FUNCTION IS FOR DVD DISCS. IF YOU PLAY OTHER FORMAT DISC, THE OPERATION AND DISPLAY ON SCREEN WILL BE SOME DIFFERENCE. PROGRAM PROGRAM CAPTION CAPTION Press " CAPTION ", the screen will display "SUBTI- Press "...

  • Page 22: Special Function Playback

    Special Function Playback JPEG DISC PLAYBACK When a disc containing standard JPEG picture files is inserted into the player, a navigation menu will be displayed automatically. Use the UP and DOWN cursor buttons to select a file then press PLAY/ENTER. The slide show will commence. Press PREVIOUS or NEXT to move between pictures.
  • Page 23 Special Function Playback(Continued) Kodak Picture CD FUNCTION INTRODUCTION A Kodak Picture CD has the size and shape of a regular CD. You can order a Kodak Picture CD simply by checking the box on the photofinishing envelope when you drop off a roll of film (35 mm or Advanced Photo System (APS) color print film) at the time of processing in Kodak Express store displaying "Kodak Picture CD"...

  • Page 24: Dvd System Setup

    DVD System Setup DVD System Setup General Setup Process 1.Press the SETUP button, the SETUP SETUP General Setup Page,Preference ..General Setup Page.. Page and Password Setup Page TV Display 4:3:PS will be displayed in turn. Angle Mark 4:3:LB OSD Lang Wide 2.Press CH+/- b to select,the...
  • Page 25 DVD System Setup(Continued) DVD System Setup General Setup Page ..General Setup Page.. ANGLE MARK: Users can select a particular TV Display camera angle when playing a DVD which offers Angle Mark OSD Lang multiple angles. Captions This item allows you to set Angle Mark ON or OFF. Screen Saver Off Last Memory Off ..General Setup Page..
  • Page 26 DVD System Setup(Continued) DVD System Setup Preference Page The Preference Page is only available when there is no disc in the player. These settings are applied consistently to all discs which are inserted and played.You can get into this Menu by pressing set up button twice. PBC: This item allows you to ..Preference Page..

  • Page 27: Changing Your Password

    DVD System Setup(Continued) DVD System Setup Set the Password Set the Password This allows you to control ..Password Setup Page.. whether Parental items can Password Mode On be changed. When set to OFF, Password Parental items may be adjusted.You can get into this menu by pressing the setup button thrice in DVD mode.

  • Page 28: Playable Discs

    Playable Discs The following discs can be played: You cannot play discs other than those listed above. You cannot play non-standardized discs, even if they may be labelled as above. The performance of CD-R or CD-RW disc depends on the way the disc was burned. In a few cases, their performance may not be consistant or may not even operate at all.

  • Page 29: Disc Protection And Dvd Characteristics

    Disc Protection and DVD Characteristics Compare DVD disc with other discs: SVCD Encode Digital/ Digital/MPEG Digital Digital Analog MPEG method Single- Double Single- Double- side -side side side 650MB 650MB 650MB Capacity single- single double- double- -layer layer layer layer 4.7G 8.5G 9.4G...
  • Page 30 Connecting the TV set to the other video and audio equipment Connecting to the other video and audio equipment You can connect the DVD,VCR and stereo system to the output to enjoy a higher quality of picture and sound effect. an additional TV DVD, VCD or other units ANT IN...

  • Page 31: Troubleshooting Guide

    Troubleshooting guide To assist in location possible faults use help guide below BREAKDOWN PHENOMENON CHECKING PICTURE SOUND The aerial direction and connection Picture with snow Noise This is called "ghosting" and can be minimized with an outside aerial, and good quality cable and terminations.

  • Page 32: Specifications

    Specifications The specifications offered you here are for reference only. With product improvement there may be some differences between the description and the final product. Specifications M o d e l Colour system NTSC Sound system Picture tube 20 "color picture tube Sound output power 2X2W 10% THD Power requirements...

  • Page 33: Warranty

    Warranty Information For Future Reference Please SAVE THESE INSTRUCTIONS Haier Serial number Date of purchase Model number...
  • Page 34 TDC2014S TDCF2014S...
