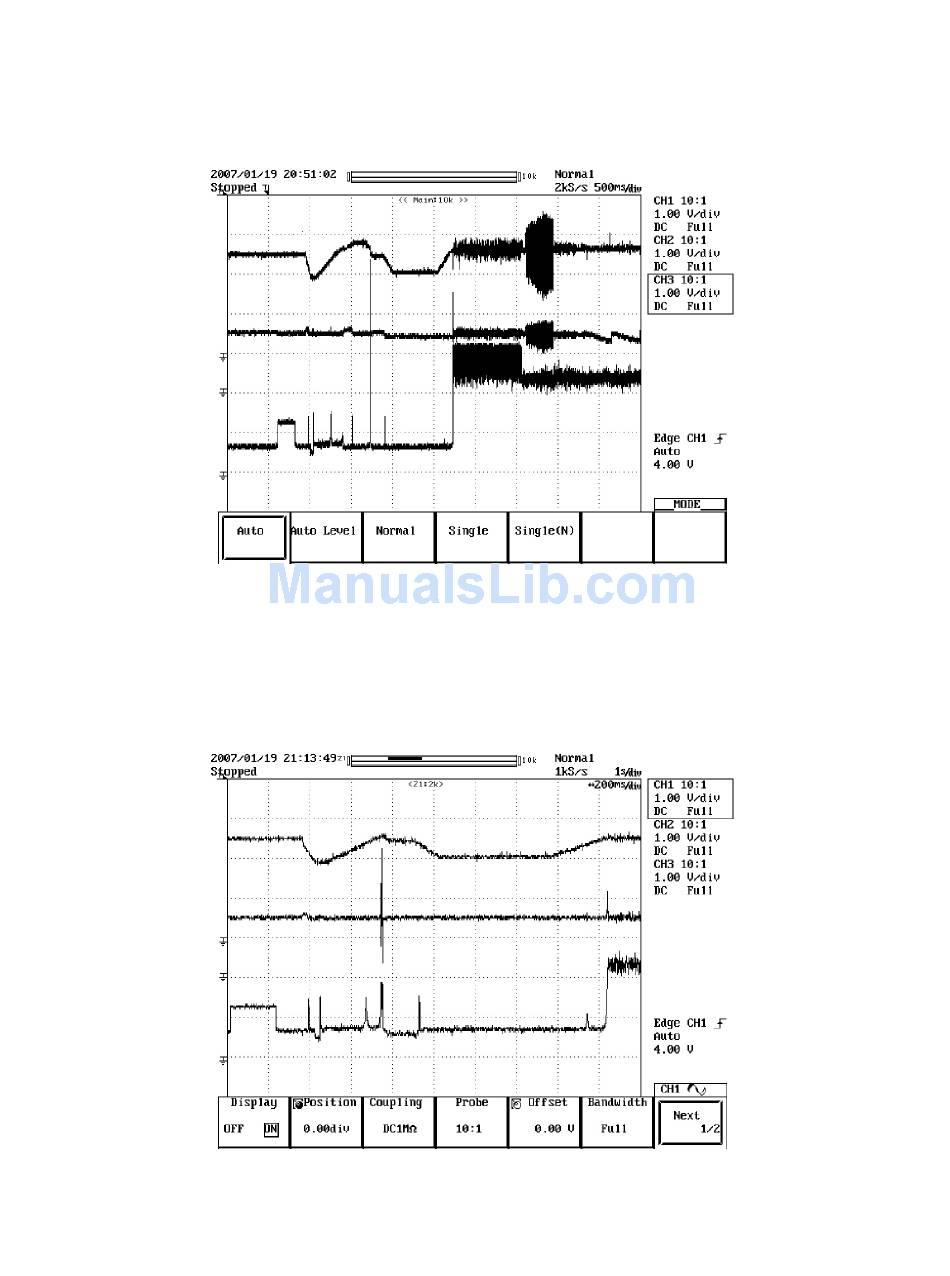

3. DISC TYPE JUDGEMENT WAVEFORM
F+(U401 PIN8)
FE(U201 PIN26)
RFL(U201 PIN21)
F+(U401 PIN8)
FE(U201 PIN26)
RFL(U201 PIN21)
FIG 3-1
FIG 3-2
3-20
