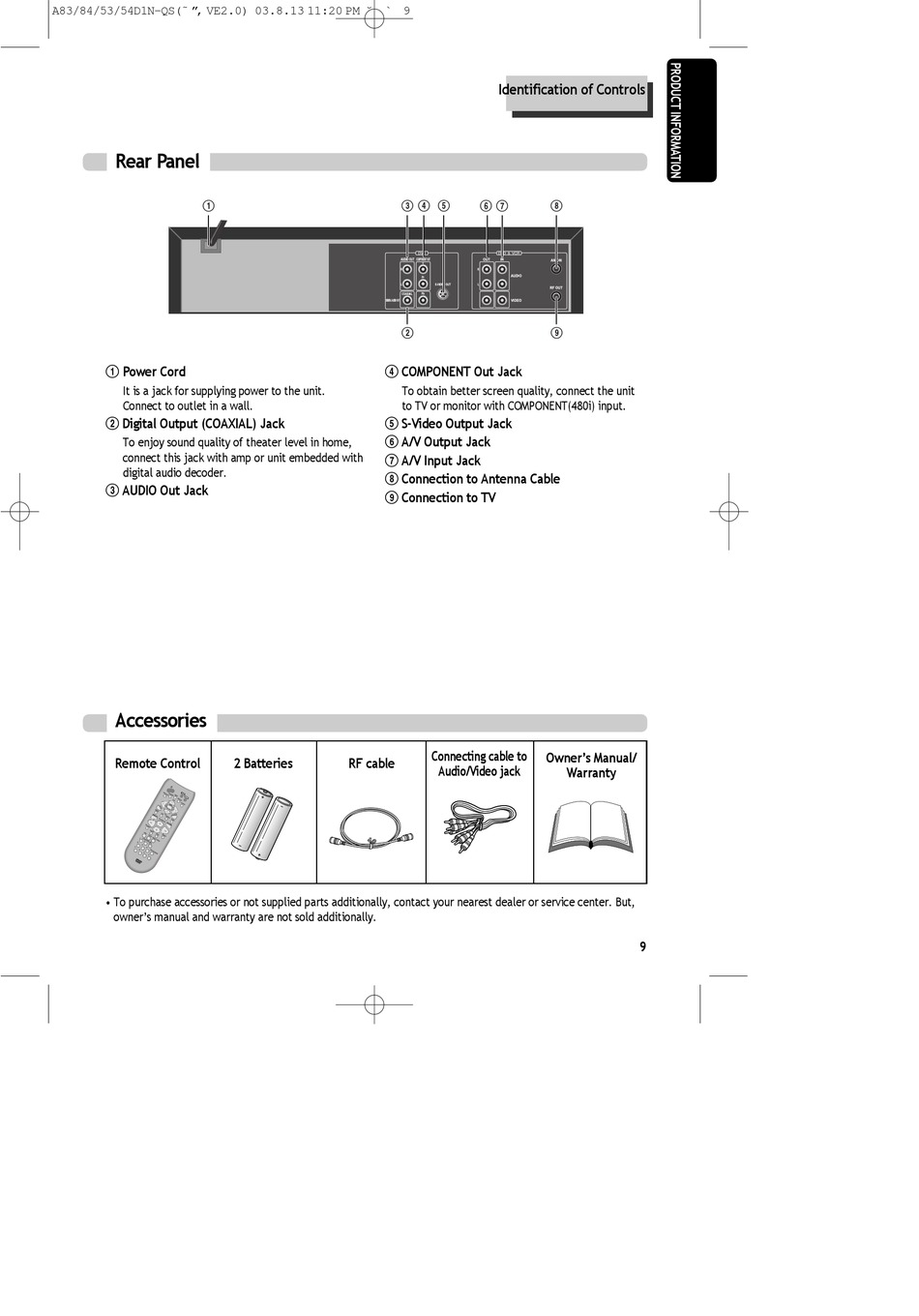

Rear Panel

!
! Power Cord
It is a jack for supplying power to the unit.
Connect to outlet in a wall.
@ Digital Output (COAXIAL) Jack
To enjoy sound quality of theater level in home,
connect this jack with amp or unit embedded with
digital audio decoder.
# AUDIO Out Jack
Accessories
Remote Control
¥ To purchase accessories or not supplied parts additionally, contact your nearest dealer or service center. But,
ownerÕs manual and warranty are not sold additionally.
#
@
$ COMPONENT Out Jack
To obtain better screen quality, connect the unit
to TV or monitor with COMPONENT(480i) input.
% S-Video Output Jack
^ A/V Output Jack
& A/V Input Jack
* Connection to Antenna Cable
( Connection to TV
2 Batteries RF cable
Identification of Controls
$ % ^ & *
(
Connecting cable to
OwnerÕs Manual/
Audio/Video jack
Warranty
9
