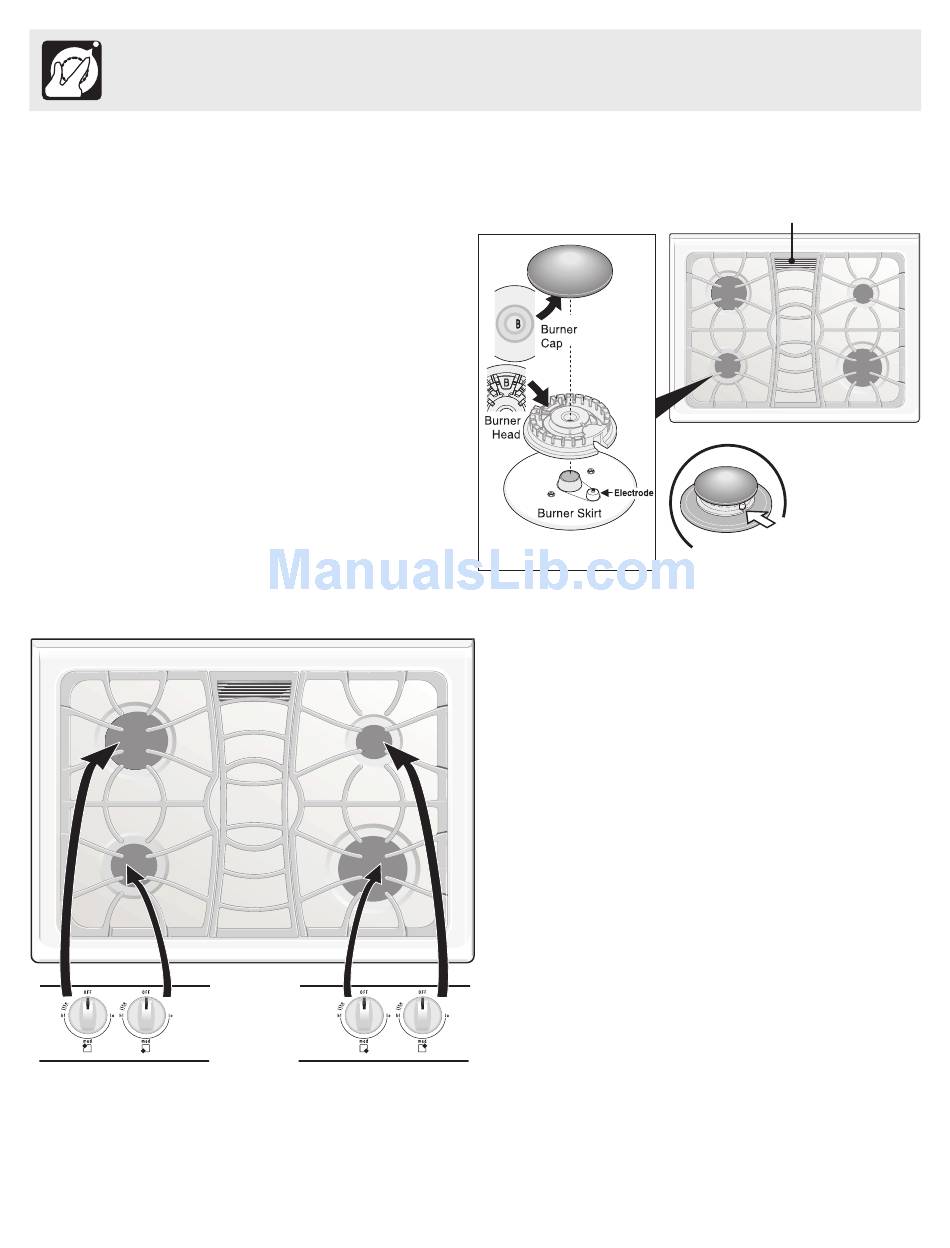

Assembly of the Surface Burner Heads, Burner Caps and Burner Grates
It is very important to make sure that all of the Surface Burner Heads, Surface Burner Caps and Surface Burner Grates are
installed correctly and at the correct locations.
1. Remove all packing tape from cooktop area. Remove all
Burner Caps and Burner Heads.
2. Discard all packing material located under Burner Heads
(if applicable).
3. To replace the Burner Heads & Caps, match the letters
located under center of Burner Caps with the letters
located inside Burner Heads (Fig. 1).
4. Match Burner Skirts with Burner Heads and Burner Caps
(see Fig. 1). Replace the Burner Heads and Caps on
cooktop (see Fig. 2). Carefully align the Electrodes into
slot or hole of each Burner Head (Fig. 3). Note: The Burner
Heads should sit flat on Cooktop Burner Skirts.
5. Place the removable oven vent cover over the fixed oven
vent cover.
6. Unpack Burner Grates and position on the cooktop.
REMEMBER — DO NOT ALLOW SPILLS, FOOD,
CLEANING AGENTS OR ANY OTHER MATERIAL TO
ENTER THE GAS ORIFICE HOLDER OPENING. Always
keep the Burner Caps and Burner Heads in place whenever
the surface burners are in use.
Left
Left
Rear
Front

Setting Surface Controls

Right
Front
Fig. 4
Fig. 1
Control Locations of the Gas Surface Burners
Your range is equipped with gas surface burners with
different BTU ratings. The ability to heat food quicker and
in larger volumes increases as the burner size increases.
The small SIMMER burner is best used for simmering
delicate sauces, etc. This burner is located at the right rear
burner position on the cooktop (see Fig. 4).
The STANDARD burner can be used for most surface
cooking needs. The standard burners are located at the left
front position and left rear position (some models) on the
cooktop (see Fig. 4).
The POWER burners are best used for bringing large
quantities of liquid rapidly up to temperature or when preparing
larger quantities of food. The POWER burners are located at
the right front and left rear (some models) burner positions on
the cooktop (see Fig. 4).
Regardless of size, always select cookware that is suitable
for the amount and type of food being prepared. Select a
burner and flame size appropriate to the pan. Never allow
flames to extend beyond the outer edge of the pan.
Right
Rear
8
Oven Vent
14K
5K
9.5K
16K
Fig. 2
Electrodes must
align into slot or hole for each
Burner Head
Fig. 3
