AKR-1010RC
Cassette Player/Receiver with 4-Channel High Power Output
Full Detachable Panel
4-Channel high Power(40W x 4Ch)
Electronic Tuning
Electronic Volume/Bass/Treble/Balance/ Fader
30Memory Capability (18FM+6MW+6LW)
Local/DX Switch
Loudness
Mechanical cassette Player
Detachable Face for Anti-Theft
10 CD-changer control
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKR-1010RC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo AKR-1010RC

Summary of Contents for Daewoo AKR-1010RC

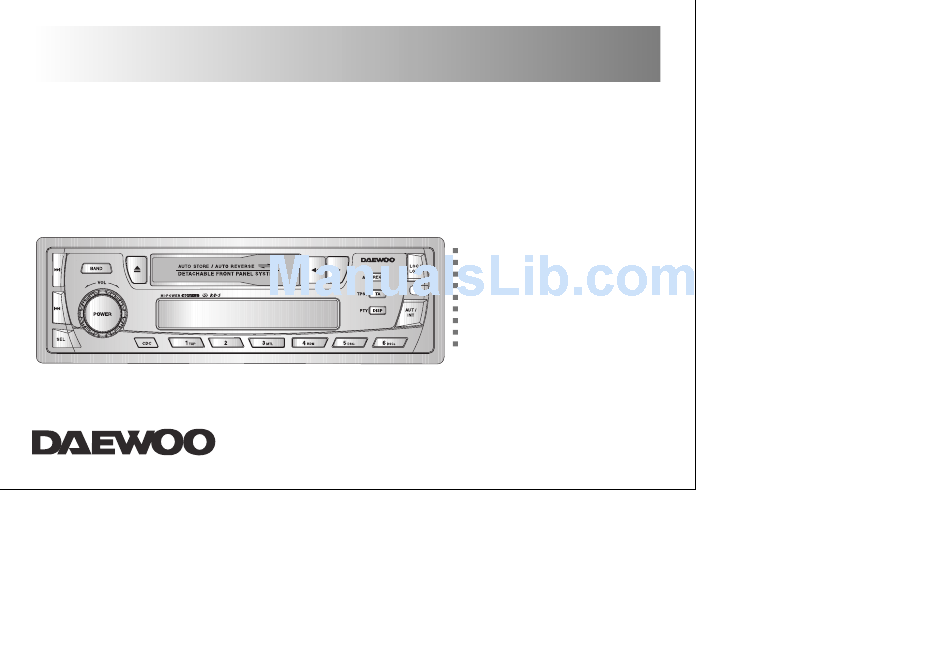

  • Page 1 AKR-1010RC Cassette Player/Receiver with 4-Channel High Power Output Full Detachable Panel 4-Channel high Power(40W x 4Ch) Electronic Tuning Electronic Volume/Bass/Treble/Balance/ Fader 30Memory Capability (18FM+6MW+6LW) Local/DX Switch Loudness Mechanical cassette Player Detachable Face for Anti-Theft 10 CD-changer control INSTRUCTION MANUAL...

  • Page 2: Wiring Connections

    WIRING CONNECTIONS The pins in the ISO connector have the following functions (connector seen from the rear) A. ELECTRIC CONNECTIONS 4. Back-up+12V : YELLOW 5. +12V (electric antenna) : BLUE 6. Dimmer : PINK 7. +12V supply(from ignition lock) : RED 8.
  • Page 3 ASSEMBLY & REMOVAL OF THE APPARATUS NOTE ! Press knob(1) and remove front panel(2). (Always take the Only use the enclosed mounting components. Foreign cassette out first). Insert the enclosed handles(3) into the cutouts in components can upset operation. the apparatus, as in the figure, press the handles up somewhat so Please refer to your nearest dealer if you get any problems with that the lock tabs release and pull the apparatus out of the holder.

  • Page 4: Front Panel

    FRONT PANEL Replacement of the front panel 1. Hold the panel at its top and bottom edges. 2. Press the left side of the panel in first. Then press the right-hand side in. Keep in mind: If any function does not work, take the panel off and put it back again.
  • Page 5 FUNCTION DESCRIPTION, CONTROLS 1. POWER ON/OFF AUDIO SELECTOR 11. TAPE FAST FORWARD / REWIND 2. BASS / TREBLE / BALANCE / FADER / VOLUME 12. TAPE LOADING SLOT 3. TUNING AND TRACK UP/DOWN 13. TAPE EJECTION 4. BAND CONTROL 14. CD-C 5.
  • Page 6 RADIO 1. POWER ON/OFF (POWER, 1) 3. TUNING UP/DOWN CONTROL ( , 3) To switch the audio system off, press power button lightly. During the radio mode Simultaneously, the system memorizes all information about its Press the tuning up/down arrows( ) for less than 0.7 current setting, and restores the information when you turn the seconds to choose the radio station which you want to listen to...
  • Page 7 RADIO 5. LOUDNESS CONTROL (LOUD, 5) 8. DISPLAY CONTROL (DISP, 8) Press more than 1.5 sec. this button to select loudness or normal When pressed belower than 1.5 seconds. sound. The message “LD” appears on the display while you enjoy present clock is displayed.

  • Page 8: Using The Rds Functions

    RADIO USING THE RDS FUNCTIONS What is RDS? RDS digital data includes various data : PI ... Program Identification The RDS(Radio Data System) is a digital information system Recognizes the country code and the program of the channel. developed by the EBU(European Broadcasting Union). Pick-a- backed on normal FM broadcasts, RDS offers a variety of PS ...
  • Page 9 USING THE RDS FUNCTIONS 9. AF(network following) reception (AF, 9) This unit returns to the stronger alternative transmitter in the list of The AF-function is only possible with FM. To select AF-function alternative frequencies(AF). The display indicates “AF” as switch to FM and press the button AF/REG for about 1.5 seconds. confirmation on the display.
  • Page 10 USING THE RDS FUNCTIONS Change-over to regional program (REG, 9) 10. Traffic broadcast recognition (TA, 10) At certain times some national radio stations broadcast regional If the button “TA/TPST” is pressed for less than 1.5 seconds, program. It is possible to pre-tune these station by pressing RDS-stations transmitting traffic information can be heard.
  • Page 11 USING THE RDS FUNCTIONS Traffic information recognition (TP, 10) What is EON? If the RDS-station tuned on, the unit recognizes RDS-frequencies EON(Enhanced Other Network) is a new RDS service provided with traffic information(TP). “TP” will be indicated on the display in by certain station networks.
  • Page 12 USING THE RDS FUNCTIONS Program type recognition (PTY, 8) Radios equipped with PTY are able to display the various Program types Display Program types Display program features of an individual station. By selecting the PTY function you can get stations with the feature you want, i.e Speech SPEECH Science...

  • Page 13: Cassette Player

    CASSETTE PLAYER Listening to a tape 13. Tape ejection ( , 13) Insert a cassette tape. Press the “ ” button to remove your tape from the unit. Playback will start automatically During TAPE play time, it’s not changed the other mode (Radio, CDC) 14.

  • Page 14: Cd Changer Operation

    CD CHANGER OPERATION 15. TOP Function (TOP, 15) 17. Random Function (RDM, 17) At anytime you want to listen to the title song of disc press this If you want to enjoy the songs in a random order, press this button shortly.

  • Page 15: Technical Specification

    TECHNICAL SPECIFICATION GENERAL TAPE SECTION Power supply 13.8V DC(10.8-15.6 allowable) Wow and Flutter 0.35% Speaker impedance 4 or 8 ohm Signal to Noise ratio 50dB Output Power Maximum 40W 4CH Channel Separation 35dB Current Drain Frequency Response 63Hz-10KHz( 3dB) Tape Speed 4.75cm/sec TUNER SECTION Sensitivity...
