Service Manual
Car Audio
MODEL : AKL-0108 Series
0106 Series
AKL-0106A
4-Channel high Power (40W x 4Ch)
Electronic Tuning
Electronic Volume/Bass/Treble/Balance/Fader
Control
Local/DX Switch
Loudness Control
Logic cassette Player
Detachable Face for Anti-Theft
10 CD-changer control(option)
DAEWOO ELECTRONICS CO., LTD
http://svc.dwe.co.kr
S/M No : AKL0108EF0
3010 Seires
AKL-3010RC
ACL-3010RC
AKL-3010RDS
AKL-3010C
AKL-3010
LOUD
SCAN
DISP
Mar. 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKL-0106A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo AKL-0106A

Summary of Contents for Daewoo AKL-0106A

  • Page 1 AKL-3010RC ACL-3010RC AKL-3010RDS AKL-3010C AKL-3010 LOUD SCAN DISP 4-Channel high Power (40W x 4Ch) Electronic Tuning Electronic Volume/Bass/Treble/Balance/Fader Control Local/DX Switch Loudness Control Logic cassette Player Detachable Face for Anti-Theft 10 CD-changer control(option) DAEWOO ELECTRONICS CO., LTD http://svc.dwe.co.kr Mar. 2001...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PRODUCT SPECIFICATIONS ..........1 2. LINE DRAWING ................2 3. ADJUSTMENTS ................3 4. SCHEMATIC DIAGRAM ............7 5. PARTS LOCATION ON P.C.BOARD ........8 6. OVERALL EXPLODED VIEW & PARTS LIST .......11 7. DECK MECHANISM EXPLODED VIEW & PARTS LIST ..12 8.

  • Page 3: Product Specifications

    1. PRODUCT SPECIFICATIONS AUDIO SECTION Maximum output power : 40watts per channel into 4 ohms. Load impedance : 4 ohms or 8 ohms Total harmonic distortion : Less than 10% at 12 watts : 100Hz( + 3dB), 10kHz(-5 + 3dB) Frequency response : 10 + 3dB at 100Hz/10kHz Control Bass/Treble...

  • Page 4: Line Drawing

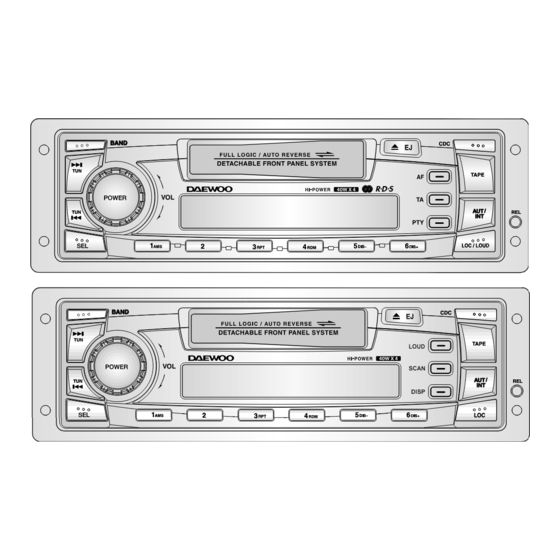

    2. LINE DRAWING 2-1. FRONT SIDE AKL-3010RC - RDS Function - 4-Channel high Power (40W x 4Ch) - Electronic Tuning - Electronic Volume /Bass /Treble /Balance /Fader Control - Local/DX Switch - Loudness Control - Logic cassette Player - Detachable Face for Anti-Theft - 10 CD-changer control AKL-3010C - Basic Funtion...

  • Page 5: Adjustments

    3. ADJUSTMENTS 3-1. TUNER MODULE ADJUSTMENT LOCATIONS CAT-7 (3 Band) CAT-6 (2 Band)
  • Page 6 ADJUSTMENTS 3-2. MW / LW ADJUSTMENT METHOD TEST STEP ALIGNMENT TUNING ALIGNMENT INDICATOR POSITION FREQUENCY 522 KHz 522 KHz AMOSC MAXIMUM Band Covering V.T point of Range AM Board 1620 KHz 1620 KHz 7.6V MAXIMUM Output 450 KHz AMIF 522 KHz AMRF1 MAXIMUM 603 KHz...
  • Page 7 ADJUSTMENTS 3-3. FM ADJUSTMENT METHOD FEED SIGNAL MEASURE ADJUST STEP SUBJECT ADJUSTMENT OUTPUT POINT FROM 98.1 MHz, ANT input 60dBu, 1kHz ANT jack The voltage Adjust for 0V IF adjust FM DET (30% MOD) FM and GND between CW03 0.05V 98.1 MHz, ANT MPX IC L or R CH SP.
  • Page 8 ADJUSTMENTS 3-4. TAPE ADJUSTMENT METHOD NOTE : 1. Clean the playback head before adjustment 2. Prepare the test tape MTT-114 or equivalent 3. Balance, Fader, Bass & Treble ..Center position. Volume adjusted to 2Volts. TEST ADJUSTMENT STEP DESCRIPTION TEST TAPE ADJUSTMENT POINT POINT...

  • Page 9: Schematic Diagram

    4. SCHEMATIC DIAGRAMS OPTION RDS Function CDC Function...

  • Page 10: Parts Location On P.c.board

    5. PARTS LOCATION ON P.C. BOARD 5-1. PCB MAIN PART SIDE...
  • Page 11 PARTS LOCATION ON P.C. BOARD for AKL-3010Series & AKL-0106Series BOTTOM SIDE...
  • Page 12 PARTS LOCATION ON P.C. BOARD for AKL-3010Series & AKL-0106Series 5-2. PCB FRONT PART SIDE BOTTOM SIDE...

  • Page 13: Overall Exploded View & Parts List

    6. OVERALL EXPLODED VIEW & PARTS LIST...

  • Page 14: Deck Mechanism Exploded View&Parts List

    7. DECK MECHANISM EXPLODED VIEW&PARTS LIST 7-1. A DM-21/22 EXPLODED VIEW...
  • Page 15 DECK MECHANISM EXPLODED VIEW & PARTS LIST for AKL-3010 Series & AKL-0106Series 7-2. PARTS LIST for ADM-21/22 PART NAME DESCRIPTION PART CODE 97YM002600 CHASSIS MAIN SUB AS ADM-22 FULL LOGIC DECK 97YM002900 LEVER GEAR LOAD AS ADM-22 FULL LOGIC DECK 97Y0900800 PLATE REVERSE SUS-304 1/2H T0.4...
  • Page 16 DECK MECHANISM EXPLODED VIEW & PARTS LIST for AKL-3010 Series & AKL-0106Series PART NAME DESCRIPTION PART CODE 97Y9300200 LABEL REFLECTION ALS T0.05 PI15.8 97Y3001100 SPRING DETECT ARM SWP-B PI0.4 97Y3001200 SPRING HEAD PLATE AWP-B PI0.4 EXTN 97Y0900400 PLATE REVERSE B EGSAFC45R T0.8 97Y2700100 GEAR POWER...

  • Page 17: Parts List

    for AKL-3010Series & AKL-0106Series 8. PARTS LIST CAUTION is a recommendable part for essential stock. 8-1. MAIN SECTION LOCATION CODE NAME DESCRIPTION IC101 1SAA6579T- IC AUDIO SAA6579T (RDS Demodulator) IC201 1BA3121--- IC ISOLATION BA 3121 IC301 1DBL2084N- IC MOTER DRIVER LB1641 or DBL2084N IC303 1LC75372E-...

  • Page 18: Front Section

    PARTS LIST for AKL-3010Series & AKL-0106Series LOCATION CODE NAME DESCRIPTION CW301 97T6215902 CONN WAFER 5076-118-2.5MM C372 CEYE1C332E CONDENSER ELEC. 16V 3300MF DT01 97T62150A0 CONN DETACHABLE FP.S-12-3.2-GG 8-2. FRONT SECTION LOCATION CODE NAME DESCRIPTION CW701 97T6217100 CONNECTOR FPP-1434-GG 5mm 97T0L1610P L.C.D 1S-09053P LED01 - 02 DDB3803X--...
  • Page 19 PARTS LIST for AKL-3010Series & AKL-0106Series 8-3. FM ONE CHIP SECTION LOCATION CODE NAME DESCRIPTION 5LA109KA22 COIL ANT 0.5X3.4X3.5+3.0 R/NA 5LL100K02K COIL INDUCTOR 10UH K 02 TA 26MM 5LL109K02K COIL INDUCTOR 1UH K 02 TA 26MM 5LL479K02K COIL INDUCTOR 4.7UH K 02 TA 26MM 5L0109KA23 COIL OSC 0.5X3.0X2.5+3.0 R/NA...

  • Page 20: Function Of Micomic

    9. FUNCTION OF MICOMIC 9-1. PIN CONFIGURATION (TOP VIEW)
  • Page 21 FUNCTION OF MICOMIC UPD178016GC for AKL-3010 Seriese & AKL-0106Series 9-2. PIN DESCRIPTION ASSIGN NAME DESCRIPTION P_XIN 4.5 MHz CRYSTAL P_XOUT VDDPORT P_VDD PERMANENT POWER INPUT PORT )MAX : 6.5V P_VDD VDDPLL P_VDD P_GND GNDPORT GROUND GNDPLL P_GND P_GND P_ACC P04/INTP4 BACK UP MODE CONTROL PORT.
  • Page 22 FUNCTION OF MICOMIC UPD178016GC for AKL-3010 Series & AKL-0106Series ASSIGN DESCRIPTION NAME WARNING LED OUTPUT PORT. P125 P_WLED OUT PUT CONDITION : PANEL OFF T : 1Sec TELEPHONE MUTE (ACTIVE LOW) P_PHONE SE KEY INPURT PORT (ACTIVE LOW) P12/AN12 P-SE P123 OPTION DIODE MATRIX INPUT PORT.
  • Page 23 FUNCTION OF MICOMIC UPD178016GC for AKL-3010 Series & AKL-0106Series ASSIGN DESCRIPTION NAME FM VCO INPUT PORT. P_FMVCO VCOH INPUT RANGE : 0.07 1.5 Vrms VCOL AM VCO INPUT PORT. P_AMVCO INPUT RANGE : 0.07 1.5 Vrms FM IF COUNT INPUT PORT. P_FMIF FMIFC RANGE:10.7 MHz...
  • Page 24 FUNCTION OF MICOMIC UPD178016GC for AKL-3010 Series & AKL-0106Series ASSIGN DESCRIPTION NAME TAPE MODE OUTPUT PORT. P132/PWM0 P_TAPE TAPE CASSETTE CONDITION CHECK PORT P_TAPE IN LOW : EJECT CONDITION HIGH : LOADING CONDITION TAPE FWD/RVS PLAY CONDITION INPUT PORT P_FWD IN RVS : HIGH FWD : LOW TAPE PLAY/FF CONDITION INPUT PORT P_FF IN...
  • Page 25 MATRIX TABLE OF KEY & OPT. DIODE for AKL-3010 Series & AKL-0106Series KEY MATRIX TABLE : Return KI 1 (50) KI 2 (51) KI 3 (52) KI 4 (53) KI 5 (54) Source LOC/LOUD KS 6 (49) T.UP T.DOWN (B:LOC) TA/TA_STBY AF/REG KS 5 (48)

  • Page 26: Ic Block Diagram

    10. IC BLOCK DIAGRAM 10-1. LC75854 (IC LCD DRIVER) :IC701...
  • Page 27 IC LOCK DIAGRAM 10-2. LB1641 / DBL2084N (TAPE PRE-AMP) : IC301 10-3. SAA6579T (IC Audio):IC101...
  • Page 28 IC BLOCK DIAGRAM 10-4. TDA8571J (IC Audio Power):IC304...
  • Page 29 IC BLOCK DIAGRAM 10-5. BA3121 (IC ISOLATOR):IC201...

  • Page 30: Liquid Crystal Display

    for AKL-3010RC 11. LIQUID CRYSTAL DISPLAY & AKL-0106Series 11-1. AKL-3010RC IC NO LCD NO. COM1 S3 TRACK 8H DISC COL1 COM2 INTRP RPT COM3 MTL RDM COL2 COM4 AMS TAPE IC NO LCD NO. COM1 LOC 6H 6A COL AUT 5H COM2 COM3 COM4...

  • Page 31: Output Connection Descriptions

    12. OUTPUT CONNECTOR DESCRIPTIONS 12-1. 26 Pin CONNECTOR The pins in the ISO connector have the following functions (connector seen from the rear) A. ELECTRIC CONNECTIONS 4. Back-up+12V : YELLOW 5. +12V (electric antenna) : BLUE 6. Dimmer : PINK 7.
  • Page 32 OUTPUT CONNECTOR DESCRIPTION 12-3. 13PIN CONNECTOR 1 REAR LEFT SP(-) REAR RIGHT SP(+) REAR RIGHT SP(-) NEGATIVE GROUND AUTO ANT RIGHT (ILLUMINATION) ACC B(+)POWER BATTERY B+(BACK-UP) FRONT RIGHT SP(+) FRONT RIGHT SP(-) FRONT LEFT SP(+) FRONT LEFT SP(-) REAR LEFT SP(+) 12-4.
  • Page 33 DAEWOO ELECTRONICS CO., LTD 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX : DWELEC K28177-8 CABLE : “DAEWOOELEC” E-mail : G7F00E@web.dwe.co.kr TEL : 82-2-360-7799 FAX : 82-2-360-7877 AKR0108EFO 010301 Mc. Cem edited by...
