HP ProLiant BL30p Specification

HP ProLiant BL30p Specification

Server blade
Hide thumbs Also See for ProLiant BL30p:

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual, Maintenance and Service Manual
QuickSpecs
Overview

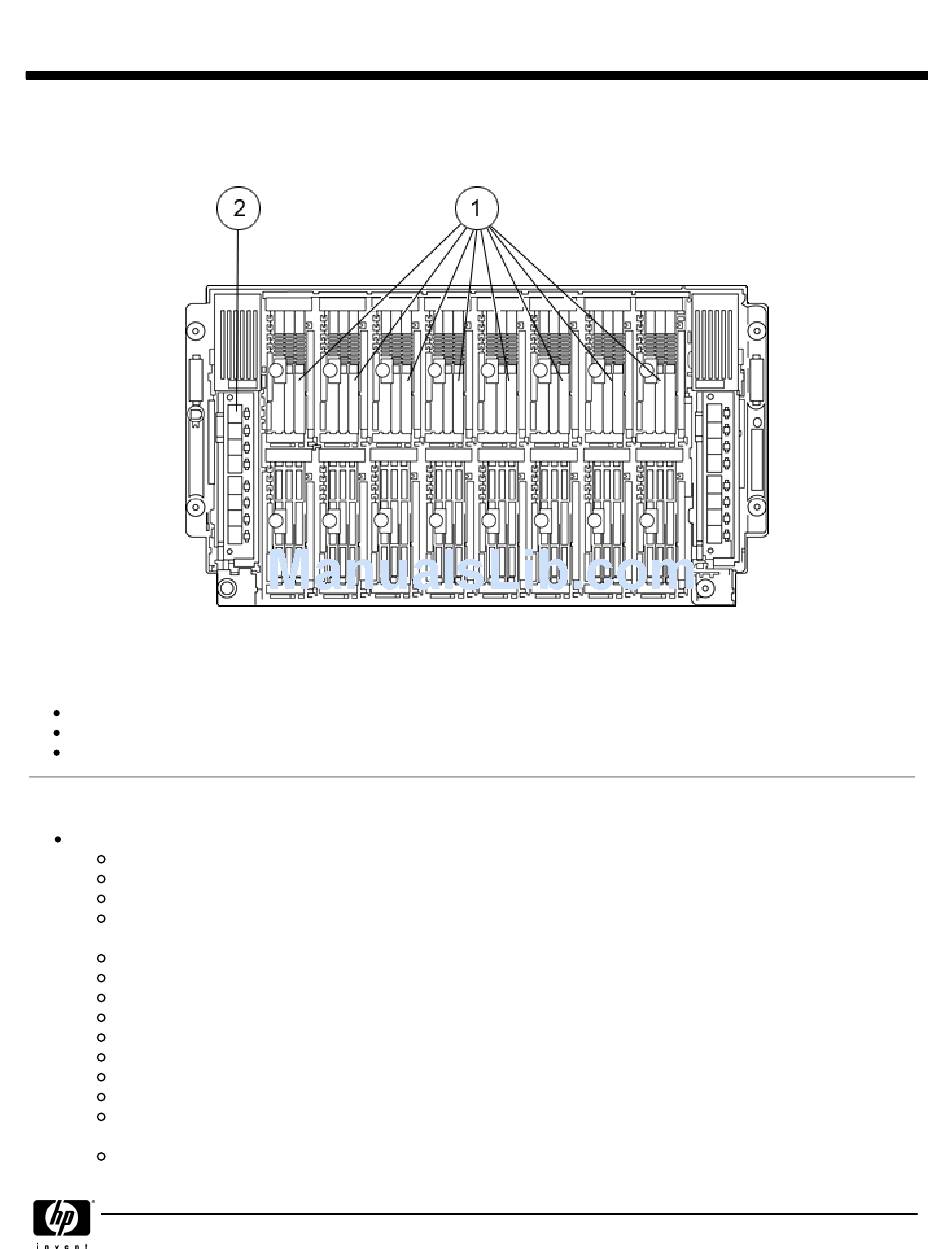

HP ProLiant BL30p Server Blades Installed in HP BladeSystem p-Class Enhanced Server Blade Enclosure
HP ProLiant BL30p Server Blades Installed in HP BladeSystem p-Class Enhanced Server Blade Enclosure
HP ProLiant BL30p Server Blades Installed in HP BladeSystem p-Class Enhanced Server Blade Enclosure
HP ProLiant BL30p Server Blades Installed in HP BladeSystem p-Class Enhanced Server Blade Enclosure
1. HP ProLiant BL30p Server Blades (16)
2. ProLiant BL p-Class interconnects (2) (patch panel 2 shown)
What's New
What's New
What's New
What's New
Emulex based Dual port Fibre Channel HBA
HP McDATA 4 Gb SAN Switch for HP p-Class BladeSystem
Brocade 4Gb SAN Switch for HP p-Class BladeSystem
At A Glance
At A Glance
At A Glance
At A Glance
Maximum density HP ProLiant BL30p server blade
Maximum density HP ProLiant BL30p server blade
Maximum density HP ProLiant BL30p server blade
Maximum density HP ProLiant BL30p server blade
High density, dual-processor capable server blade for the ProLiant BL p-Class
Up to two Intel Xeon 3.2-GHz/533-MHz with 2MB L3 cache processors
ServerWorks GC-LE chipset
1024-MB PC2100-MHz Registered ECC DDR memory (1 x 1-GB), expandable to 4-GB, flex memory supports
interleaved and non-interleaved memory configurations
Integrated Lights-Out (iLO) Advanced Pack with new static IP bay configuration and HP BladeSystem wizard features
Two (2) NC7781 PCI-X Gigabit NICs (embedded)
One 10/100T NIC (embedded) dedicated to iLO management
Supports up to two optional small form factor ATA 60-GB hard drives
BIOS-Enhanced RAID for Linux enables both primary and secondary hard drives to be bootable
Dual-Port Fibre Channel Adapter (2-Gb) option for SAN connectivity
HP ProLiant BL30p server blade plugs vertically into blade sleeve and sleeve plugs into 6U blade enclosure
Local I/O cable provides two USB ports, one video port, one iLO port and serial port
Integrated Access Tool for blade management and enhanced server blade documentation including Best Practices and
Common Procedures guides
Up to 96 HP ProLiant BL30p server blades fit in 42U rack in non-redundant power configuration; up to 80 HP ProLiant
BL30p server blades fit in 42U in full power redundant configuration
DA - 11958
Worldwide — Version 19 — August 15, 2005
HP ProLiant BL30p Server Blade
HP ProLiant BL30p Server Blade
HP ProLiant BL30p Server Blade
HP ProLiant BL30p Server Blade
Page 1
