Summary of Contents for Vax VZL-801

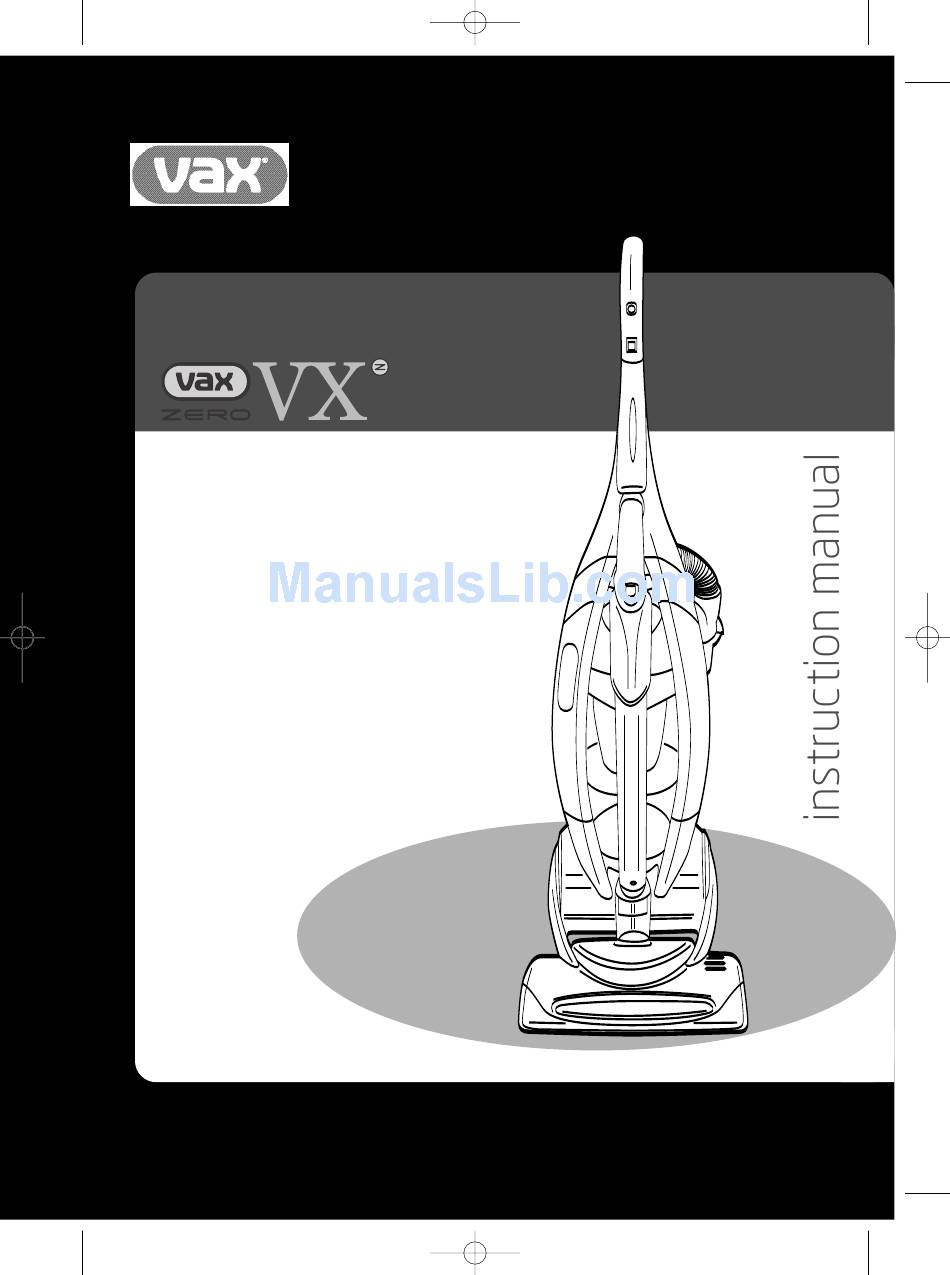

- Page 1 Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:00 pm Page 1 Vax careline 0870 6061248 Bagless upright Vax model number: VZL-801 Please read carefully before using this cleaner. www.vax.co.uk Always fully extend the mains cable before use. Retain for future reference.
- Page 2 Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:00 pm Page 2 www.vax.co.uk 1. Diagram Fig.1/1 1 Soft grip handle 11 Brushbar view window 20 Post-motor filter 2 Brushbar on/off switch 12 Patented edge cleaning 21 Cord rewind pedal 3 Power on/off switch...
-
Page 3: Safety Information
If the supply cord or plug is damaged, return the vacuum cleaner to a Vax IMPORTANT: If the inlet, hose or telescopic tube is Authorised Service Agent or suitably qualified blocked, switch off the vacuum cleaner and person for examination, repair or adjustment. -
Page 4: Use & Function
Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:01 pm Page 4 www.vax.co.uk 3. Use & Function 4. Using a Phillips or Flat Head screwdriver, secure the handle by inserting the provided four (4) screws into the back of the handle (Fig. 3/3). - Page 5 Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:01 pm Page 5 Vax Careline 0870 606 1248 Starting Up Brush Vacuuming 1. Holding the power cord by the plug, pull cord out 1. Tilt the upright vacuum cleaner back before you start completely. The red tag will indicate the end of the vacuuming.
- Page 6 Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:01 pm Page 6 www.vax.co.uk 5. Accessories 4. To access the tools, rock the stair cleaning tool away from the cleaner. To remove the tools, grasp the tool and pull up and out of the accessory clip (Fig. 5/4).
- Page 7 Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:01 pm Page 7 Vax Careline 0870 606 1248 2. Use the stretch hose tube as an extension for long 6. Dirt Container and Director: reaches (Fig. 5/7). Removal & Replacement WARNING: To reduce the risk of injury from moving parts, unplug before servicing.
- Page 8 Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:01 pm Page 8 www.vax.co.uk 4. Empty the container by pressing the dirt container To clean the air separator: release button over a rubbish bin (Fig. 6/4-5). 1. To remove air separator, rotate 1/4 turn counterclockwise (Fig.6/7).
- Page 9 IMPORTANT: Switch off the vacuum cleaner and Replacement unplug from the wall outlet. NOTE: Vax recommends cleaning the post motor filter The motor switches off automatically if the brushbar is every 2-3 months. blocked during operation by vacuuming up foreign objects, or if strands of carpet are wrapped around it.
-
Page 10: Maintenance
Vax VZL-801 User Guide_Amended.qxd 22/3/07 2:01 pm Page 10 www.vax.co.uk 8. Maintenance 4. After removing the hose use a feather duster to brush it clean and remove the blockage (Fig.8/4). IMPORTANT: Switch off the vacuum cleaner and unplug it from the wall outlet before servicing. -
Page 11: Troubleshooting
No electricity in wall outlet. number of the carpet cleaner before calling. There are Solution: Check fuse or breaker. over 400 approved Vax Service Agents in the UK. For the Cause: On/off switch not turned on. nearest Service Agent, please call the Vax Careline. - Page 12 Page 12 EEC STATEMENT OF COMPLIANCE Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the VZL-801 VX ZERO Upright is manufactured in compliance with the following Directives: Safety: 73/23/EEC Low Voltage Directive EMC: 89/336/EEC Electromagnetic Compatibility Directive Waste electrical products should not be disposed of with household waste.
