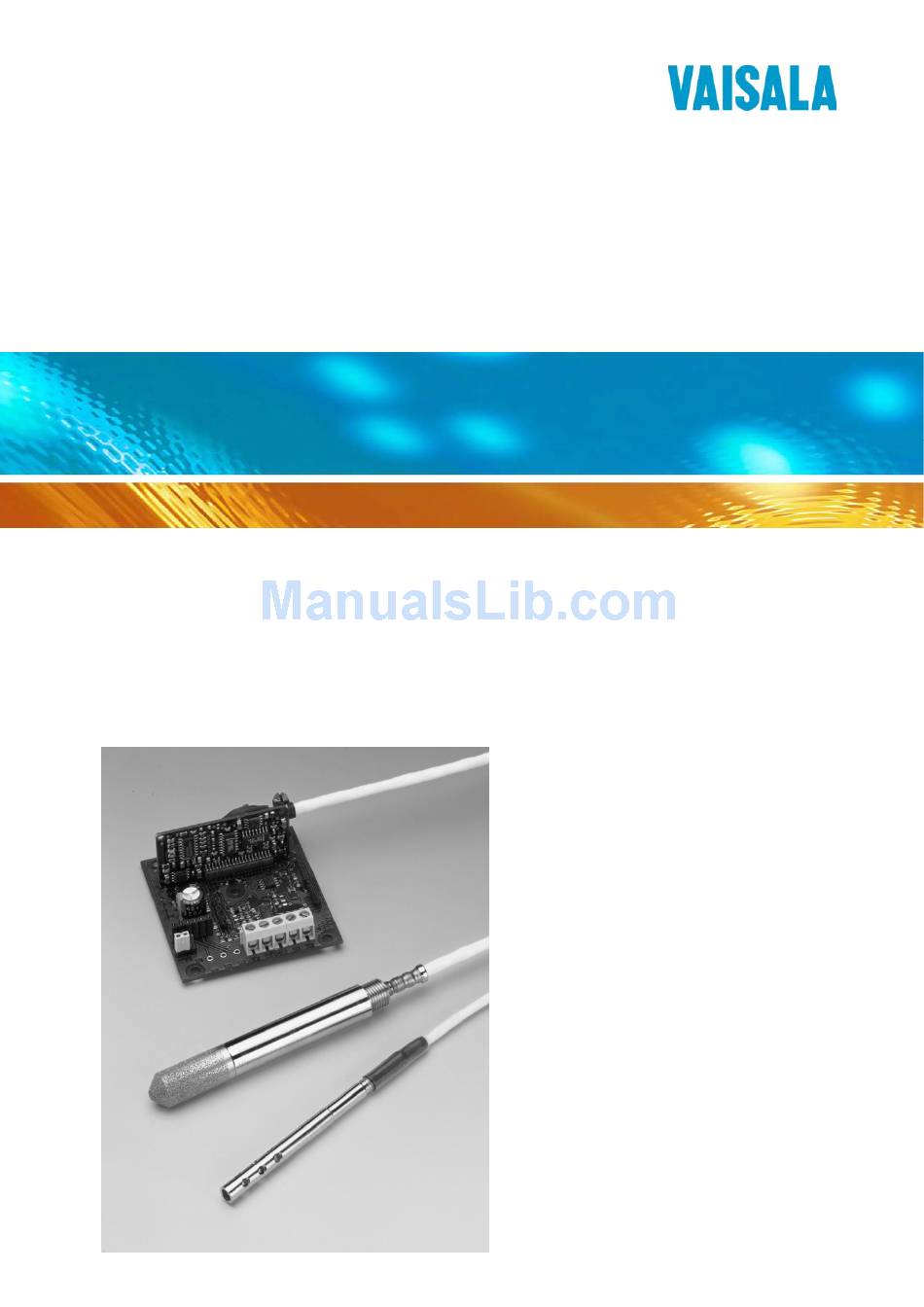

- Page 1 USER'S GUIDE ® Vaisala HUMICAP Humidity and Temperature Module HMM213 U339EN-1.3...
- Page 2 The contents are subject to change without prior notice. Please observe that this manual does not create any legally binding obligations for Vaisala towards the customer or end user. All legally binding commitments and agreements are included exclusively in the applicable supply contract or Conditions of...
-
Page 3: Table Of Contents
SERI Serial Bus Settings ............ 23 ADDR Setting the Device Address ........23 UNIT Selecting the Output Units ......... 24 VERS Displaying Software Version ........24 RESET Resetting the Transmitter........24 Operating via the Serial Bus ..........25 VAISALA ________________________________________________________________________ 3... - Page 4 CHEMICAL PURGE OPTION...............41 CHAPTER 8 MAINTENANCE....................43 ® Replacing the HUMICAP 180R Sensor and the Filter..43 Replacing Consumables............43 Parts List for Consumables ..........43 CHAPTER 9 TROUBLESHOOTING..................45 Troubleshooting Procedure ..........45 Technical Support ..............45 Return Instructions ..............46 Vaisala Service Centers ............47 4 _____________________________________________________________________ U339EN-1.3...
-
Page 5: Vaisala
________________________________________________________________________________ CHAPTER 10 TECHNICAL DATA ..................49 Specifications ................. 49 Options ..................50 VAISALA ________________________________________________________________________ 5... - Page 6 USER'S GUIDE____________________________________________________________________ List of Figures Figure 1 Measurement Error at 100 %RH when the Temperature Difference between the Ambient Air and the Sensor is 1 °C..18 Figure 2 Electrical Connections ..............19 Figure 3 Dimensions in mm (inches) ............20 Figure 4 Calibration Connector for the HM70 or HMI41 ......34 Figure 5 Decrease of the Sensor Gain Due to an Interfering Chemical...
- Page 7 Relative Humidity Specifications ..........49 Table 9 General Specifications ............. 50 Table 10 Operating Voltage Specifications ..........50 Table 11 Modules, Sensor Heads and Outputs ........50 Table 12 Cable Lengths for Sensor Heads ..........51 Table 13 Chemical Purge................ 51 VAISALA ________________________________________________________________________ 7...
- Page 8 USER'S GUIDE____________________________________________________________________ This page intentionally left blank. 8 _____________________________________________________________________ U339EN-1.3...
-
Page 9: Chapter 1 General Information
This chapter provides general notes for the manual and the product. About This Manual This manual provides information for installing, operating, and ® maintaining Vaisala HUMICAP Humidity and Temperature Module HMM213. Contents of This Manual This manual consists of the following chapters: - Chapter 1, General Information, provides general notes for the manual and the product. -
Page 10: Version Information
Manual Code Manual Name ® M210316EN-A Vaisala HUMICAP Indicator HMI41 and Probes HMP41/45/46 User's Guide M210777EN-B Calibration of Digital Transmitters with Vaisala ® HUMICAP Humidity Indicator HMI41 Cables 19164ZZ and 25917ZZ User's Guide M210185EN-C Vaisala Humidity Calibrator HMK15 User's Guide M210297EN-E Vaisala HUMICAP®... -
Page 11: Feedback
Chapter 1 ________________________________________________________ General Information Feedback Vaisala Customer Documentation Team welcomes your comments and suggestions on the quality and usefulness of this publication. If you find errors or have other suggestions for improvement, please indicate the chapter, section, and page number. You can send comments to us by e- mail: manuals@vaisala.com... -
Page 12: Recycling
Dispose of batteries and the unit according to statutory regulations. Do not dispose of with regular household refuse. Regulatory Compliances ® The Vaisala HUMICAP Humidity and Temperature Module HMM213 complies with the following performance and environmental test standards: The emission and immunity tests have been performed according to standard EN61326-1. -
Page 13: Patent Notice
Vaisala shall at its free option either repair or have repaired or replace the product in question. The working hours used by employees of Vaisala for such repair or replacement shall be free of charge to the client. - Page 14 USER'S GUIDE____________________________________________________________________ the allegedly defective Product or part shall, should Vaisala so require, be sent to the works of Vaisala or to such other place as Vaisala may indicate in writing, freight and insurance prepaid and properly packed and labelled, unless Vaisala agrees to inspect and repair the Product or replace it on site.
-
Page 15: Chapter 2 Product Overview
Chapter 2 __________________________________________________________ Product Overview CHAPTER 2 PRODUCT OVERVIEW This chapter introduces the features and advantages of Vaisala ® HUMICAP Humidity and Temperature Module HMM213. Introduction to HMM213 The HMM213 modules are designed especially for relative humidity measurements in environmental chamber applications with high temperature and humidity levels. - Page 16 USER'S GUIDE____________________________________________________________________ The HMM213 modules are connected to process control systems with screw terminals. These versatile modules incorporate the ® HUMICAP 180R humidity sensor, which uses an operating principle based on changes in the capacitance of a thin polymer film as it absorbs water molecules.
-
Page 17: To Be Noted When Measuring Humidity
The ® HUMICAP 180R sensor returns to its normal functioning as soon as water has evaporated. Contaminated water condensing on the sensor may shorten its life span and alter the calibration. VAISALA _______________________________________________________________________ 17... -
Page 18: Figure 1 Measurement Error At 100 %Rh When The Temperature Difference Between The Ambient Air And The Sensor Is 1 °C
USER'S GUIDE____________________________________________________________________ Temperature (°C) Figure 1 Measurement Error at 100 %RH when the Temperature Difference between the Ambient Air and the Sensor is 1 °C With a dewpoint module, the temperature equilibrium is not a problem as NOTE the temperature of the sensor head changes continuously and the sensor head has a fast humidity response. -
Page 19: Chapter 4 Installation
Electrical Connections The HMM213 module is connected to a process control system with screw terminals. The wiring diagram is shown in Figure 2 below. Terminal 12-35VDC Figure 2 Electrical Connections VAISALA _______________________________________________________________________ 19... -
Page 20: Dimensions
USER'S GUIDE____________________________________________________________________ Dimensions Figure 3 Dimensions in mm (inches) Serial Bus Settings The serial communication parameters set at factory are: Parameter Value Baud 1200 Parity None Data bits Stop bits 20 ____________________________________________________________________ U339EN-1.3... -
Page 21: Chapter 5 Serial Commands
When the transmitter sends out the readings, the serial interface does not echo any commands; the only command that can be used is S (stop). S Stopping the Measurement Output S<cr> Ends the RUN state; after this command all other commands can be used. VAISALA _______________________________________________________________________ 21... -
Page 22: Send Outputting A Reading Once
USER'S GUIDE____________________________________________________________________ SEND Outputting a Reading Once SEND <cr> in STOP state SEND aa <cr> in POLL state aa = address of the transmitter when more than one transmitter is connected to a serial bus (0 ... 99; set with command ADDR) Outputs the current measurement readings via the serial line. -
Page 23: Seri Serial Bus Settings
The command is used to give an address for one device. The address is necessary for communication with a specific transmitter in POLL mode, when there are several modules connected to one serial bus >ADDR 11 Address > VAISALA _______________________________________________________________________ 23... -
Page 24: Unit Selecting The Output Units
USER'S GUIDE____________________________________________________________________ UNIT Selecting the Output Units UNIT x <cr> m(etric units) or n(on-metric units) Table 5 Output Units Metric Units Non-Metric Units C F C F For example, the command for setting the non-metric units is: >UNIT N <cr> Unit : non metric >... -
Page 25: Operating Via The Serial Bus
CLOSE <cr> In STOP mode: command OPEN has no effect, CLOSE sets the transmitter in POLL mode In POLL mode: command OPEN sets the transmitter temporarily in STOP mode, command CLOSE returns the instrument to POLL mode VAISALA _______________________________________________________________________ 25... -
Page 26: Setting The Output Format
USER'S GUIDE____________________________________________________________________ When more than one transmitter is connected to the same serial bus, the POLL mode makes it possible to communicate with the transmitters. For example, a relative humidity calibration is performed at transmitter 2 (<bel> = ASCII 7): >OPEN 2 <cr>... -
Page 27: Mfld Selecting A Field Separator
MLF x ON/OFF >MLF OFF Msg. lf : OFF >R (repeating values) >RH 60.78 %RH T 23.84 'C >MLF ON Msg. lf : ON >R RH 60.85 %RH T 23.86 'C RH 60.80 %RH T 23.86 'C VAISALA _______________________________________________________________________ 27... -
Page 28: Mspc Setting Spaces On/Off
USER'S GUIDE____________________________________________________________________ MSPC Setting Spaces On/Off MSPC x ON/OFF MSPC sets on/off the outputting of a space before and after the values of the message. >MSPC OFF Msg. space : OFF >R RH57.52%RH T73.81'F RH57.50%RH T73.77'F RH57.44%RH T73.76'F >MSPC ON Msg. -
Page 29: Munit Setting Variable Units On/Off
MUNIT x ON/OFF >MUNIT ON Msg. unit : ON >R RH 61.01 %RH T 23.85 'C RH 60.99 %RH T 23.85 'C >MUNIT OFF Msg. unit : OFF >R RH 60.97 T 23.84 RH 60.98 T 23.87 > VAISALA _______________________________________________________________________ 29... - Page 30 USER'S GUIDE____________________________________________________________________ This page intentionally left blank. 30 ____________________________________________________________________ U339EN-1.3...
-
Page 31: Chapter 6 Calibration
CALIBRATION This chapter contains information that is needed to calibrate this product. Vaisala recommends a recalibration of the HMM213 module after six months of use. After the first recalibration, the recommended calibration interval is approximately 12 months. However, please note that these intervals depend on the operating conditions and the required accuracy. -
Page 32: Humidity Calibration
A one-point calibration can be done against an accurate transfer standard in the field and a two-point calibration using saturated salt solutions in controlled conditions (HMK15). You can also send the instrument to Vaisala or a Vaisala representative for recalibration. Humidity Calibration with Serial Commands Two-Point Calibration CRH <cr>... -
Page 33: One Point Calibration
CRH 0 0 xx.xx yy.yy xx.xx = current humidity yy.yy = correction (RH measured Example of performing the gain calibration in one reference point: >crh 0 0 73.60 1.7 > Use an accurate and calibrated reference only. VAISALA _______________________________________________________________________ 33... -
Page 34: With The Hand-Held Humidity And Temperature Meter Hm70 Or Hmi41 Indicator And Calibration Cable
® - Vaisala HUMICAP Indicator HMI41 and Probes HMP41/45/46 User's Guide - Vaisala HUMICAP® Hand-Held Humidity and Temperature Meter HM70 - Calibration of Digital Transmitters with Vaisala HUMICAP® Humidity Indicator HMI41 Cables 19164ZZ and 25917ZZ User's Guide... - Page 35 HMI41 display for a couple of times after which measurement readings appear. This is quite normal and requires no action; however, if the message is not replaced by measurement readings, it is an indication of an operation error. VAISALA _______________________________________________________________________ 35...
-
Page 36: Calibration Table
USER'S GUIDE____________________________________________________________________ Calibration Table Table 6 Greenspan's Calibration Table with Output Values According to the Chosen Scale Temperature °C °F LiCl 11.3 11.3 11.3 11.3 NaCl 75.6 75.5 75.3 75.1 74.9 If the LiCl solution is used or stored in temperatures below +18 °C (+64 °F), the equilibrium humidity of the salt solution may change permanently. -
Page 37: One Point Calibration
Example of performing the gain calibration in one reference point without changing the offset at 0 °C: >CT 0 0 101 -0.5 > Example of performing the gain calibration in one reference point without changing the offset at -70 °C: VAISALA _______________________________________________________________________ 37... -
Page 38: Ct Temperature Calibration Of The Additional Sensor Head
USER'S GUIDE____________________________________________________________________ >CT -70 0 101 -0.5 > Use an accurate and calibrated reference only. CT Temperature Calibration of the Additional Sensor Head Two Point Calibration CTA <cr> Using this command the transmitters can be calibrated against an accurate reference, such as a Pt 100 simulator. A two-point calibration is performed as follows: >CTA <cr>... -
Page 39: One Point Calibration
0 °C: >CTA 0 0 101 -0.5 > Example of performing the gain calibration in one reference point without changing the offset at -70 °C: >CTA -70 0 101 -0.5 > Use an accurate and calibrated reference only. VAISALA _______________________________________________________________________ 39... - Page 40 USER'S GUIDE____________________________________________________________________ This page intentionally left blank. 40 ____________________________________________________________________ U339EN-1.3...
-
Page 41: Chemical Purge Option
The sensor with chemical purge option is a composite sensor in which ® the HUMICAP and Pt 100 temperature sensors are attached to each other. Chemical purge option requires that the sensor is protected with a stainless steel sintered filter (part no. HM46670). VAISALA _______________________________________________________________________ 41... - Page 42 USER'S GUIDE____________________________________________________________________ This page intentionally left blank. 42 ____________________________________________________________________ U339EN-1.3...
-
Page 43: Chapter 8 Maintenance
Replace a dirty filter to ensure a maximum lifetime and a fast response for the sensor. Replacing Consumables This section describes how to replace consumables. Parts List for Consumables Table 7 Available Spare Parts Spare Part Order Code ® HUMICAP 180R Sensor HUMICAP180R Stainless steel sintered filter HM46670 VAISALA _______________________________________________________________________ 43... - Page 44 USER'S GUIDE____________________________________________________________________ This page intentionally left blank. 44 ____________________________________________________________________ U339EN-1.3...
-
Page 45: Chapter 9 Troubleshooting
- Input power source type, voltage and list of other items (lighting, heaters, motors etc.) that were connected to the same power output. - What was done when the failure was noticed? Technical Support For technical questions, contact the Vaisala technical support: E-mail helpdesk@vaisala.com +358 9 8949 2790... -
Page 46: Return Instructions
Include the information specified in step 2 in the box with the faulty product. Also include a detailed return address. Ship the box to the address specified by your Vaisala contact. 46 ____________________________________________________________________ U339EN-1.3... -
Page 47: Vaisala Service Centers
Chapter 9 ___________________________________________________________ Troubleshooting Vaisala Service Centers Vaisala Service Centers perform calibrations and adjustments as well as repair and spare part services. See contact information below. Vaisala Service Centers also offer accredited calibrations, maintenance contracts, and a calibration reminder program. Do not hesitate to contact them to get further information. - Page 48 USER'S GUIDE____________________________________________________________________ This page intentionally left blank. 48 ____________________________________________________________________ U339EN-1.3...
-
Page 49: Technical Data
-70 ... +180 °C Typical accuracy of electronics at +20 °C ±0.1 °C Typical temperature dependence of 0.0025 °C/°C electronics Temperature sensor Pt 100 RTD 1/3 IEC 751 Class B Dewpoint temperature (°C) Dewpoint difference (°C) Figure 6 Dewpoint Temperature VAISALA _______________________________________________________________________ 49... -
Page 50: Options
USER'S GUIDE____________________________________________________________________ Table 9 General Specifications Property Description / Value Operating temperature range Probe -70 … +180 °C Electronics -5 … +55 °C Storage temperature range -40 … +70 °C (electronics) Sensor protection: Stainless steel sintered filter Standard Screw terminals for 0.5 ... 1.5 mm 2 wires Connections Table 10 Operating Voltage Specifications... -
Page 51: Table 12 Cable Lengths For Sensor Heads
Optional T sensor head/ module with 150 or 300 cm two sensor heads Table 13 Chemical Purge Module Automatic Chemical Purge at Startup RH and T module Dewpoint module RH and T module with two sensor heads VAISALA _______________________________________________________________________ 51... - Page 52 *U339EN*...
