4. Only use fixing material that is permitted for the wall.
5. If required, ensure that mounting apparatus on-site has
sufficient load-bearing capacity.
6. Wall-mount the product as described.
4.8

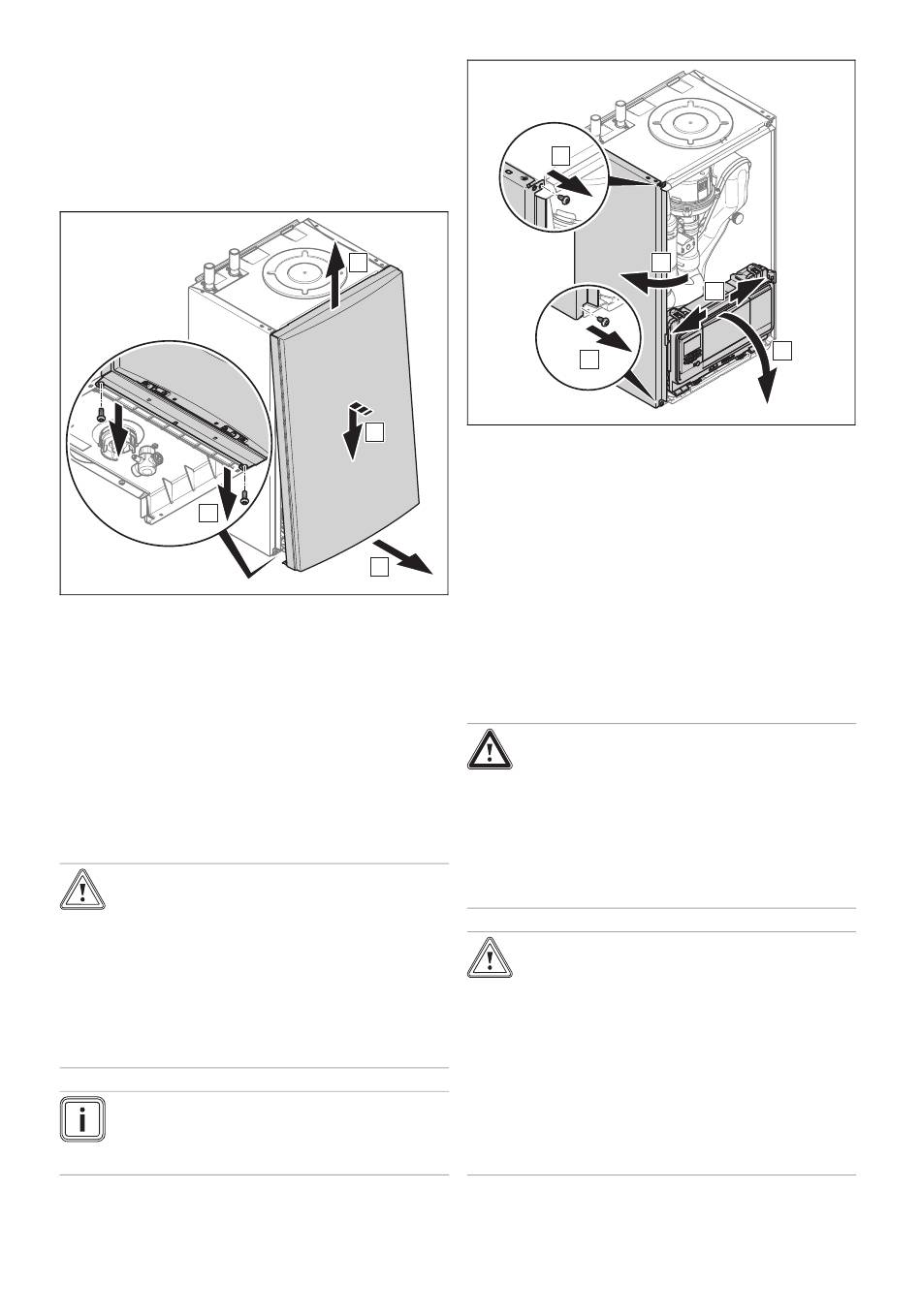

Removing/installing the front casing

4.8.1 Removing the front casing
A
1. Undo the two screws .
2. Gently press the front casing backwards in the centre
and pull it downwards on the lower edge so that the
retaining clip is released.
3. Pull the front casing forwards at the bottom edge.
4. Lift the front casing upwards from the retainers.
4.8.2 Installing the front casing
▶
Refit the components in the reverse order.
4.9

Removing/installing the side section

4.9.1 Removing the side section
Caution.
Risk of material damage caused by mech-
anical deformation.
Removing both side sections may cause
mechanical distortion in the product, which
may cause damage to the piping, for ex-
ample, and potentially result in leaks.
▶
Always remove only one side section –
never both side sections at the same time.
Note
If there is sufficient lateral clearance (at least
70 mm), you can remove the side section to fa-
cilitate maintenance or repair work.
0020230535_05 ecoFIT pure Installation and maintenance instructions
D
B
1. Tilt the electronics box forward.
2. Hold on to the side section so that it cannot fall, and
unscrew both screws, one from the top and one from
the bottom.
3. Tilt the side section to the outside and take it out to-
wards the top.
C
4.9.2 Installing the side section
▶
Refit the components in the reverse order.
5 Installation
5.1

Preparing for installation

D
E
C
Danger!
Risk of scalding and/or damage due to
incorrect installation leading to escaping
water.
Mechanical stresses in the connection pipes
may lead to leaks.
▶
Install the connection pipes such that they
are free from mechanical stress.
Caution.
Risk of material damage caused by corro-
sion
Due to non-diffusion-tight plastic pipes in the
heating installation, air gets into the heating
water. Air in the heating water causes corro-
sion in the heat generator circuit and in the
product.
▶
If you use non-diffusion-tight plastic pipes
in the heating installation, ensure that no
air gets into the heat generator circuit.

Installation 5

A
B
9
