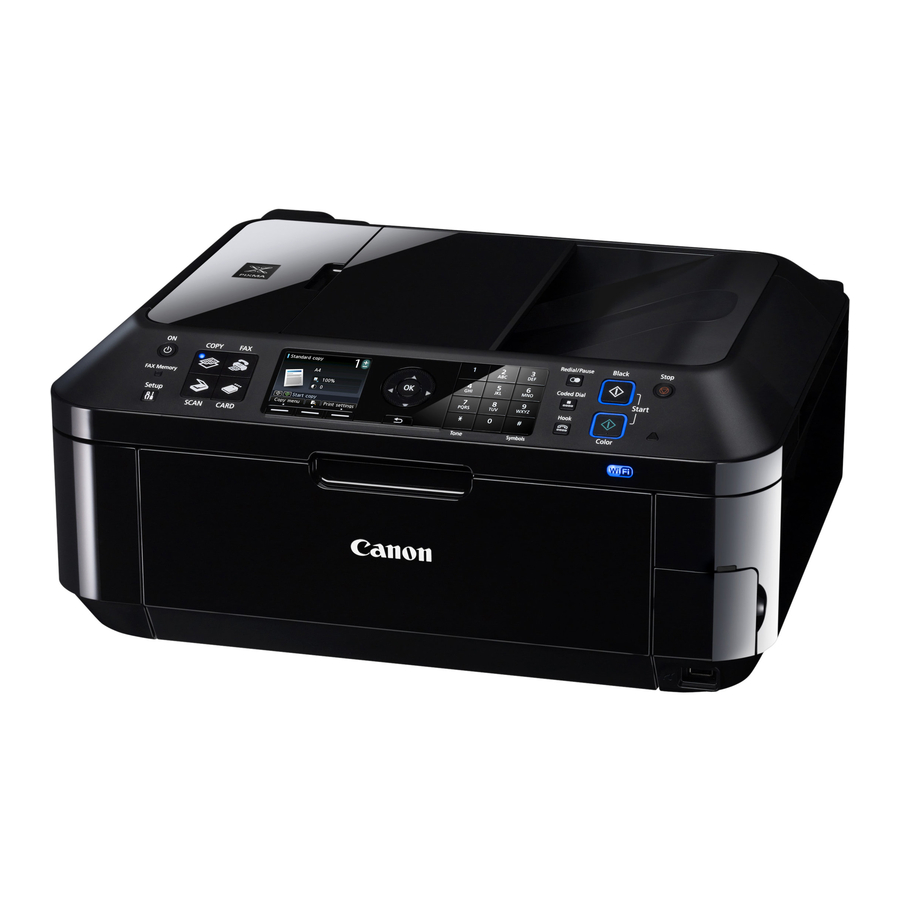

Canon PIXMA MX420 Network Installation Manual

Installing your multifunction to your network for the first time windows os
Hide thumbs

Advertisement

Next >>
<< Previous
Installing Your Multifunction
to Your Network for the First Time
PIXMA MX420
Windows OS
1

Advertisement

loading

  Related Manuals for Canon PIXMA MX420

  Summary of Contents for Canon PIXMA MX420

  • Page 1 Next >> << Previous Installing Your Multifunction to Your Network for the First Time PIXMA MX420 Windows OS...
  • Page 2 << Previous Next >> Installing Your Multifunction to Your Network for the First Time PIXMA MX420 Windows OS Preparing to Connect My Multifunction to My Network Network Requirements Important Information You Need Before Adding Your Multifunction Adding Your Multifunction to the Network...
  • Page 3: Network Requirements

    Preparing to Connect My Multifunction << Previous Next >> To My Network Network Requirements Before connecting the machine to the network, make sure that configuration of the computer and access point or router is complete, and that the computer is connected to the network. Notes on Network Connection •...
  • Page 4 Preparing to Connect My Multifunction << Previous Next >> To My Network An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point. Important Information You Need Before Adding Your Multifunction The following information is required to connect to your access point or router.
  • Page 5: Adding Your Multifunction To Your Network

    Adding Your Multifunction to Your Network << Previous Next >> Adding Your Multifunction to Your Network Step One Step Two Press the Setup button (A) Select Wireless LAN setup, and then press the OK button.
  • Page 6 Adding Your Multifunction to Your Network << Previous Next >> Step Three Step Four Select Yes, then press the OK button. Select Easy setup, and then press the OK button. When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.
  • Page 7 Adding Your Multifunction to Your Network << Previous Next >> Step Five Step Six Select the access point name, then press the OK button. When one of the following screens is displayed, enter the network key using the Numeric buttons (E), then press the OK button. If the following screen is not displayed, go to step 8 NOTE: If you are living in an apartment, nearby access Press the...
  • Page 8 Adding Your Multifunction to Your Network << Previous Next >> Step Seven Step Eight Make sure that the network key is correct, and then When the connected to the access point screen appears, press the press the OK button. OK button. The Setup menu screen returns.
  • Page 9 <<Previous Next>> Installing the Drivers & Application Software Step One Step Two insert the Setup CD-ROM into the CD-ROM drive. If the Click Easy Install. program does not start automatically, double-click the The drivers, application software, and on-screen CD-ROM icon in Computer orMy Computer, then doubleclick manuals are installed.
  • Page 10: Installing The Drivers And Software

    Installing the Drivers and Software <<Previous Next>> Step Three Step Four Select Use the printer with wireless LAN connection, then click Next. On the next screen click Install...
  • Page 11 Installing the Drivers and Software <<Previous Next>> Step Five Step Six Click Yes or No for the License Agreement Adobe RGB Click Yes for the License Agreement...
  • Page 12 Installing the Drivers and Software <<Previous Next>> Step Seven Step Eight Click Next on the Printer Detection screen Click Next if the Please Allow All Install Wizard Processes appears...
  • Page 13 Installing the Drivers and Software <<Previous Next>> Step Ten Step Nine When the Detected Printers List appears, select Canon MX420 series Then click Next. Turn on the printer and click OK...
  • Page 14 Installing the Drivers and Software <<Previous Step Eleven Click Complete or OK on the Setup Completion screen. Your device and software have now been set up. Please follow any remaining On-screen instructions to finish and exit.
