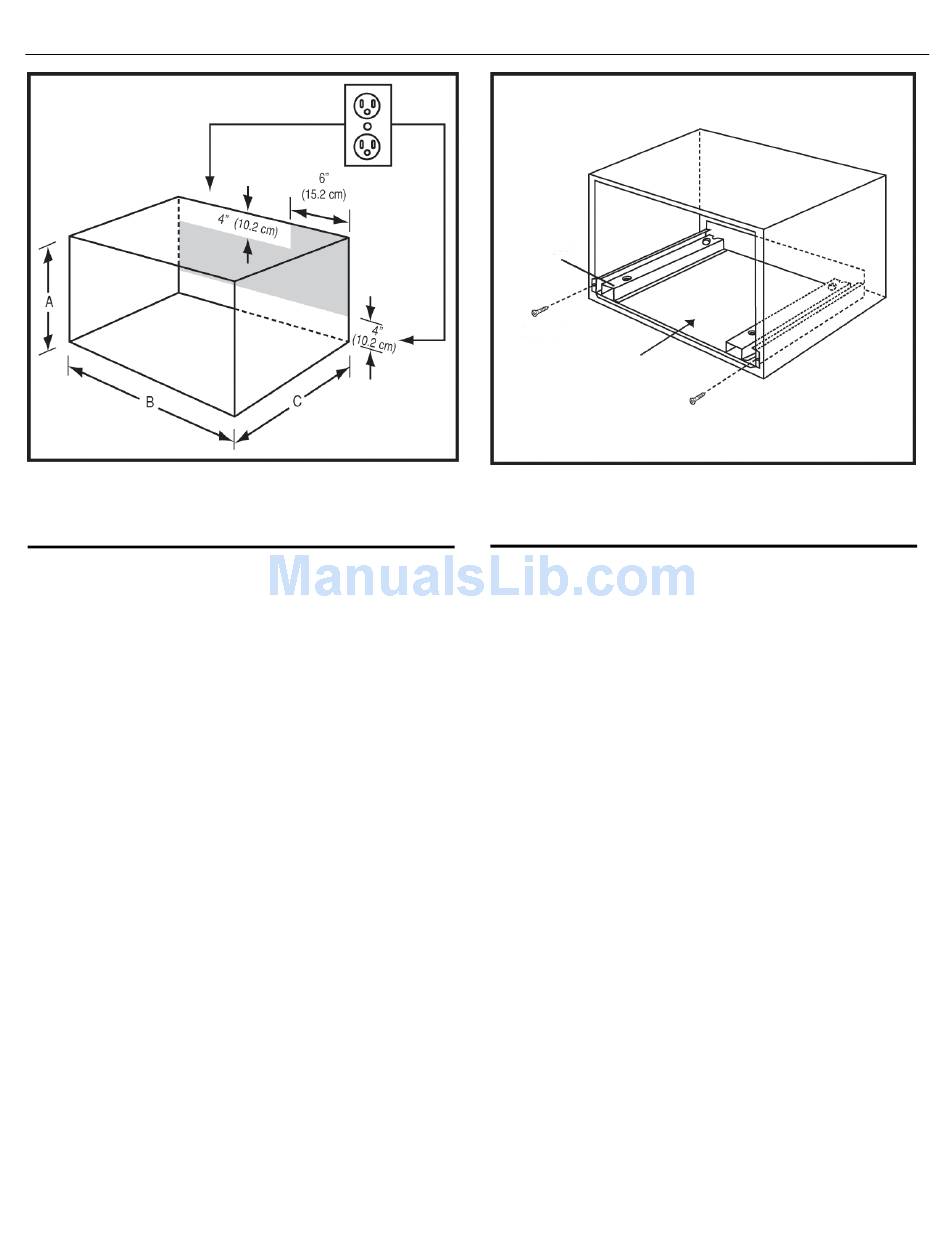

Illustration 2

ELECTRICAL OUTLET LOCATION

Outlet should NOT be in the shaded area as indicated
on Illustration 2
NOTE 1:
If the Depth (C) dimension is greater than 21" (53.3 cm),
the outlet location may be in any area on the rear wall.
NOTE 2:
The floor of the opening should be constructed of
plywood strong enough to support the weight of the
oven and floor load (approximately 100 pounds). The
floor should be level for proper operation of the oven. Be
sure to check the local building code as it may require
that the opening be enclosed with side, ceiling and rear
partition. The proper functioning of the oven does not
require the enclosure.
Installation Instructions
Flanges
Screw A
Exhaust Dust
Assembly

EXHAUST DUCT ASSEMBLY

1. Place the Exhaust Duct in the opening. When
the Exhaust Duct Assembly is in the opening
correctly, the flanges will be tightly against the
lower edge of the opening. See Illustration 3.
2.
Secure the Exhaust Duct Assembly with the
two screws A.
IMPORTANT: Secure screws in outer hole.
3
Screw A
Illustration 3
