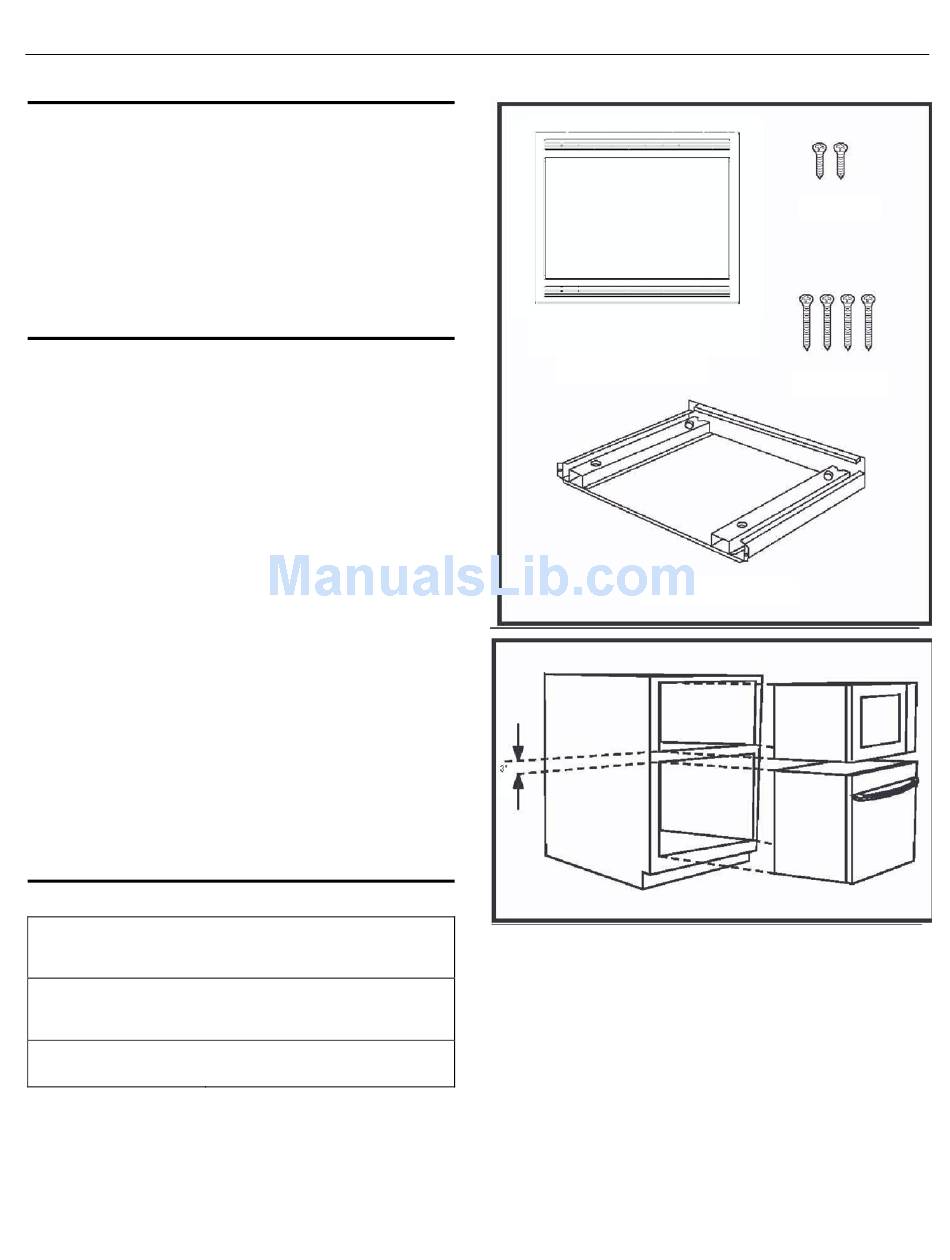

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly - QTY 1
2. Exhaust Duct Assembly - QTY 1
3. Screw A - QTY 2
4. Screw B - QTY 4
CHOOSING A LOCATION FOR
YOUR MICROWAVE OVEN IF
BUILT-IN
Built-In Trim Kit allows for the installation of microwaves
listed below to be built into a cabinet or wall by itself or
over an electric wall oven*.
Microwave Models:
FGM0205KB
PLMBZ209GC
FGM0205KF
GLMB209DS
FGM0205KW
GLMB209DB
FPM0209KF
See Illustration 1 for proper location when building in
above a wall oven. Carefully follow both the wall oven
installation instructions and Electrolux's Built-in Kit
instructions. If building over a wall oven, be sure the
clearance between the wall oven and the microwave
oven is a minimum of 3 inches.
*NOTE:
Trim Kit and microwave can only be built-in
over an electric self-clean or non self-clean
single cavity wall oven.

CABINET OR WALL CUTOUT

Cutout Dimensions
Height (A)
Minimum
Maximum
Width (B)
Minimum
Maximum
Depth (C)
Minimum

Installation Instructions

CGM0205KB
CGM0205KF
CGM0205KW
CPM0209KF
/
16
" (42.5 cm)
3
4
17" (43.2 cm)
24
" (62.9 cm)
3/4
25" (63.5 cm)
20" (50.8 cm)
Front Frame Assembly
2
Screw A
Screw B
Exhaust Dust Assembly
Illustration 1
