Wells WVF-886 Parts List

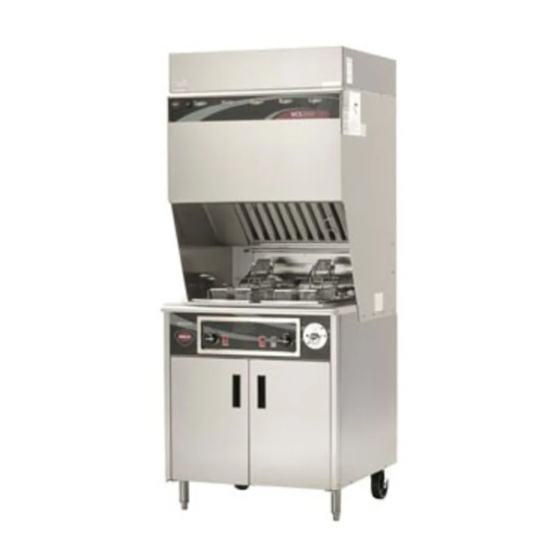

Ventless fryer with or without roll warmer
Hide thumbs Also See for WVF-886:

Advertisement

Quick Links

Download this manual See also: Operating Manual
WITH OR WITHOUT ROLL WARMER
Description

Parts List ...........................................................

WVF-886 Hood Section
Cabinet .........................................................
Hood Electrical and Vacuum .............................
WVF-886 Fryer Section
Fry Head .......................................................
Cabinet & Electrical .........................................
Basket Lift ......................................................
WVF-886RW Roll Warmer Section .........................
Ansul© Fire Detection & Suppression ....................... 10
PL503
p/n
Rev. D
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439
PARTS LIST
PL503
WVF-886 VENTLESS FRYER
CONTENTS
PRINTED IN UNITED STATES OF AMERICA
WELLS BLOOMFIELD, LLC
telephone: 775-689-5703
fax: 775-689-5976
www.wellsbloomfield.com
503
page
2
4
5
6
7
8
9
08
0602 cps
