Wells WVPE-30F Features And Specifications

W M
E L L S A N U F A C T U R I N G

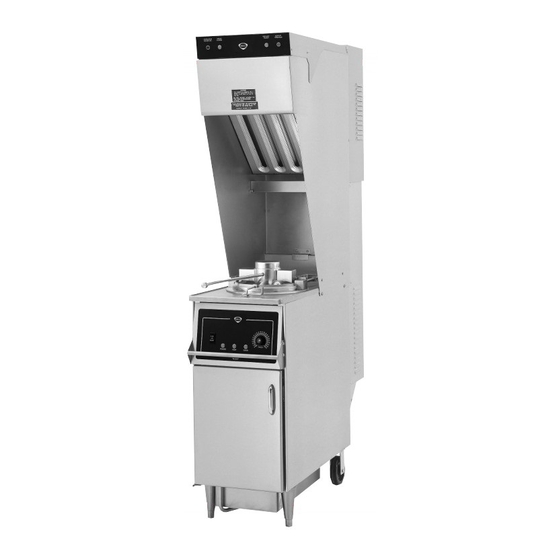

WVPE-30F VENTLESS FRYER
WVPE-30F

Specifications

Overall Dimensions:
Width
Depth
Height
Oil Capacity:
WVPE-30F
Typical Production:
Chicken
frozen
Chicken
fresh
Weights:
Installed
Shipping
Export
The following model is available for export and
meets the standards for CE:
• WVPE-30FEU, 380-415V, 3Ø, 9300 watts
R A I S I N
Inches MM
15 13/16 401
43 11/16 1110
76 3/8 1940
Lbs. KG
30 14
Lbs. KG
12 5
14 6
Lbs. KG
425 193
525 238
G T H E
I T E M N O .
Features
• Ventless Hood System exceeds EPA Standard 202
for the release of particulate matter.
• Air Filter Interlock System will not allow heating
element to be energized if the baffle or HEPA
filter is not in place.
• Airflow Sensing System is designed to monitor
airflow through the filtration system to optimize
grease removal efficiency.
• Ansul R-102 Fire Suppression is built into the
Ventless Hood using a unique anti-fire design.
• Manual pressure release system is specially
designed to release steam pressure at desired
rate after completion of cook time.
• Automatic Oil Temperature Control ensures
precise temperatures to produce consistent high
quality products while minimizing energy consumption.
• Flat bar element, located below the basket, is
heavy-duty stainless steel with a low watt density for
longer oil life.
• Repeat cycle timer activates using one push
button operation.
• Oil filter system is easy to operate, and combined
with Flavor Saver Filter Powder, will substantially
increase oil life.
• Round frypot is constructed of spun stainless steel
with a 30 lb. oil capacity.
• Nickel-plated, perforated steel basket has a
detachable handle for lowering and removing
basket from the frypot.
• The WVPE-30F fryer is Underwriters Laboratories,
Inc. LISTED and meets NSF International standards.
• A one-year warranty against defects covers
parts and labor.
Accessories / Options
HEPA Filter, fits all ventless fryers, 22402
Charcoal Filter, fits all ventless fryers, 22403
Flavor Saver Oil Filter Powder, 45 packs, 22410
Oil Filter Paper, 21711
Rear Leg Kit, for remote pull , 22692
S T A N D
WELLS
A R D
