Summary of Contents for Blaupunkt Phoenix CM 127

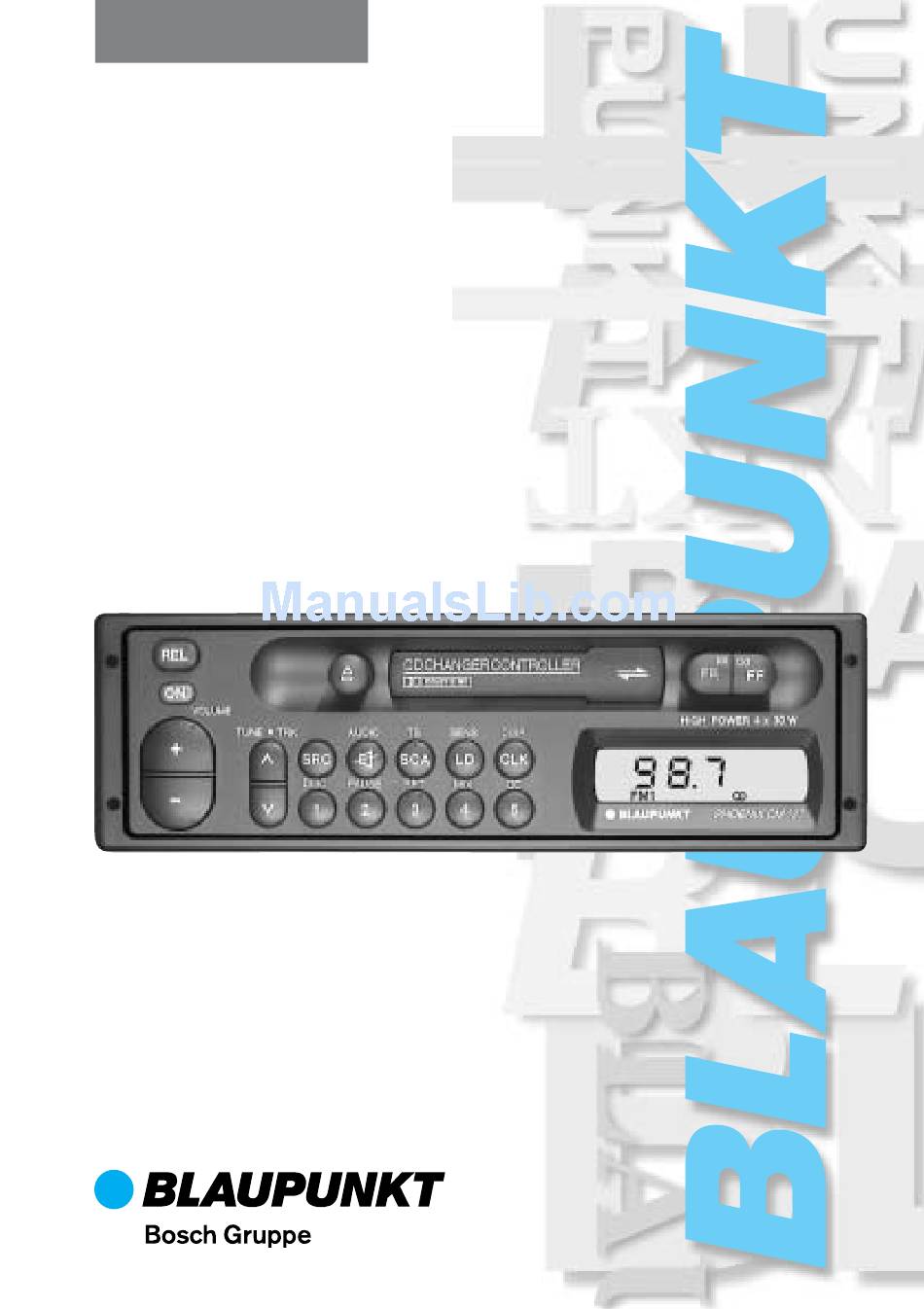

- Page 1 Radio / Cassette Phoenix CM 127 (EU) Operating instructions...
-
Page 2: Table Of Contents
Table of contents Features ............................36 Traffic safety and precautions ......................36 Detachable face (release panel) ....................37 Location of controls ........................38 General operation .......................... 39 Audio operation ..........................40 Radio operation ..........................41 Cassette tape player operation ...................... 42 CD changer operation (when optional CD changer is connected) .......... -
Page 3: Features
- Detachable wire harness - Snap-in DIN sleeve and mounting hardware Your unit’s detachable front faceplate makes the unit useless to would-be thieves. Designed, engineered and manufactured by Blaupunkt. Traffic safety and precautions • Do not adjust your unit in difficult driving conditions that demand your full attention. -
Page 4: Detachable Face (Release Panel)
Detachable face (release panel) Detaching and attaching the face: The face of this unit can be detached and taken with you to prevent it from being stolen. Detaching the face: Press the REL (release) button and detach the face by gently pulling it off as illustrated. Note: Do not pull it straight out from the chassis. -
Page 5: Location Of Controls
Location of controls REL (Release) – Detaching faceplate ON (Power) – Power on/off – Source and radio band select – Cassette eject – Mute AUDIO – Access to bass, treble, balance and fader adjust – Scan / disc scan and track scan –... -
Page 6: General Operation
General operation See “Traffic safety and precautions” on page 36. “Press” means a momentary press of less than 1/2 second. All presses requiring more than 1/2 second are followed by a beep. “Time Out” When additional button presses are anticipated to complete a procedure, the unit will automatically exit the procedure after 4 seconds of inactivity. -
Page 7: Audio Operation
Audio operation Volume control buttons Press + and – to increase/decrease the volume from 0 to 63. Adjustable maximum turn-on volume Press and hold the ON button for more than two seconds. The unit turns off and the turn-on volume level is memorized. Mute Press to temporarily reduce the volume. -
Page 8: Radio Operation
Radio operation Selecting the waveband/memory bank Press SRC repeatedly to access the modes FM1, FM2, FM3/FMT (FM banks 1-2-3, T=Travelstore), AM/AMT (AM bank and AM Travelstore). Tuning sensitivity Press SENS for more that 2 seconds to switch between lo and dx search sensitivity (for local and distant stations). -
Page 9: Cassette Tape Player Operation
Cassette tape player operation Tape playback: Insert the tape into the slot. (Note: make sure the open side faces to the right.) When the ignition is on, the unit turns on by inserting a tape. Tape playback will start when the cassette is inserted. -
Page 10: Cd Changer Operation (When Optional Cd Changer Is Connected)
CD changer operation (when optional CD changer is connected) Your radio is ready to control the Blaupunkt CD changer CDC-A 05 or CDC-A 071 with the Disc Management System. The CD changer is not included in the delivery. See your Blaupunkt dealer for more information. -
Page 11: Specifications
• Faceplate (release panel) • Wire harness • DIN sleeve • Mounting hardware • Owner’s manual • Car radio passport • Labels Design and specifications subject to change without notice. Blaupunkt-Werke GmbH Bosch Gruppe 07/97 Sl K7/VKD 8 622 401 230... - Page 12 Blaupunkt-Werke GmbH Bosch Gruppe 06/97 Sl K7/VKD 8 622 401 306...
