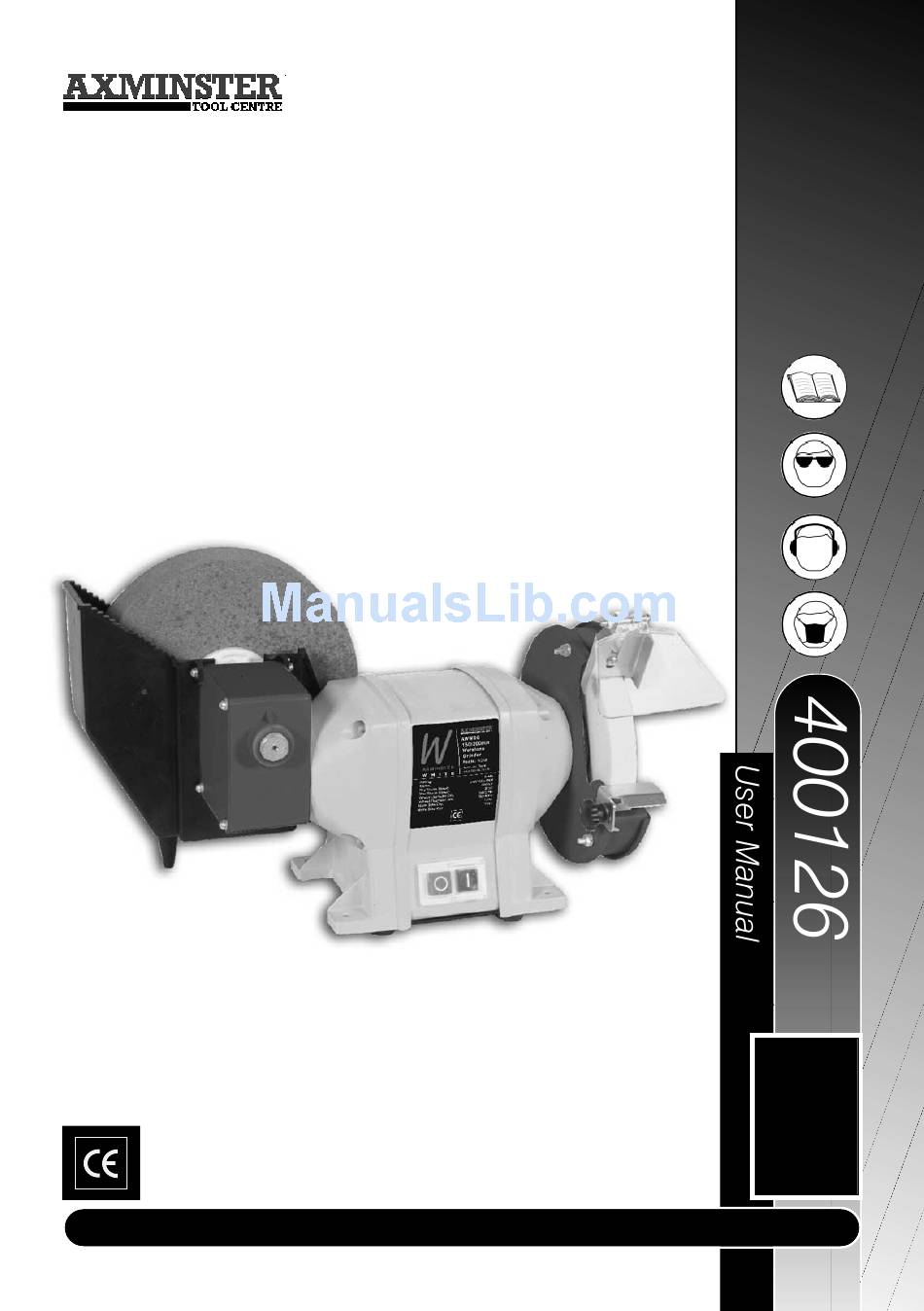

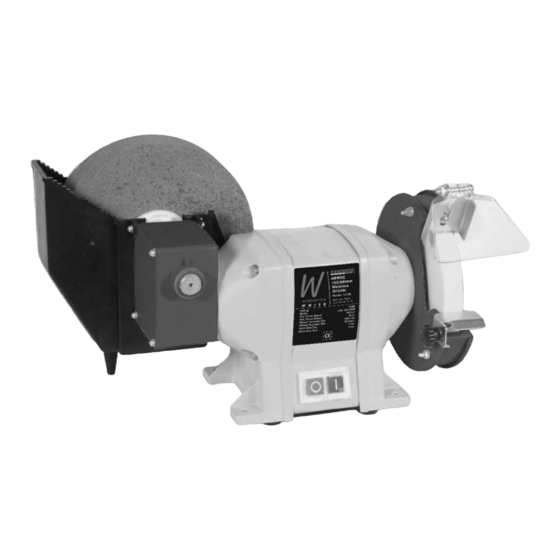

- Page 1 150/200mm Wetstone Grinder A X M I N S T E R W H I T E Axminster Reference No:AWWSG w w w. a x m i n s t e r. c o . u k...
-
Page 2: Table Of Contents
Index of Contents... Page No. Index of Contents........................02 Declaration of Conformity………….………..……..…………........03 What’s in the Box………….………..……..…………............04 General Instructions for 240V Machines............05-06 Initial Assembly......................07 Set up the Grinder....................08-09 Specifications….………..……..…………................09 Identification and Description of the Grinder............10 Grinder Illustration and Parts Description..............11 Specific Safety Precautions for Grinding Machines.......... -
Page 3: Declaration Of Conformity
Declaration of Conformity... A X M I N S T E R W H I T E Copied from CE Certificate The undersigned, authorised by Yancheng Baoding Electrical Tools Co., Ltd. No. 88 Yandu Road, Yandu New District 224005 Yancheng P.R. China declares that this product: MD150/200Q Bench Grinder manufactured by Yancheng Baoding Electrical Tools... -
Page 4: What's In The Box
1 No. Tool Rest complete with:- 1 No. M6 Plastic Star Knob 1 No. M6 Coach Bolt 1 No. 6mm Washer 1 No. 6mm Anti-vibration Washer 1 No. Rubber Bung/Stabilising Leg 1 No. Guarantee Card 1 No. Instruction Manual www.axminster.co.uk... -
Page 5: General Instructions For 240V Machines
General Instructions for 240V Machines... A X M I N S T E R W H I T E Good Working Practices/Safety The following suggestions will enable you to observe good working practices, keep yourself and fellow workers safe and maintain your tools and equipment in good working order. -
Page 6: General Instructions For 240V Machines
There are very expensive, very specialised machines for working in these areas, THIS IS NOT ONE OF THEM. Above all, OBSERVE…. make sure you know what is happening around you, and USE YOUR COMMON SENSE. www.axminster.co.uk... -
Page 7: Initial Assembly
Initial Assembly... A X M I N S T E R W H I T E Carefully unpack the machine and all the loose items from the box. Check the contents against the "What’s is in the box" list. If any items are missing please contact our technical services department using the telephone numbers that you will find in our catalogue. -
Page 8: Set Up The Grinder
If there is any tendency for the grinder to move, tip or tilt while it is being operated, it should be bolted down; either to the bench or to a specific stand or base board. It is a good idea to dress new grindstones before use, to remove any possible irregularities, and ensure the stones are running concentrically. www.axminster.co.uk... -
Page 9: Specifications
(air trapped in the surface water on the stone, being passed through the trough as it rotates). Clean the trough and refill with clean water frequently. Specification Axminster No. AWWSG Rating Hobby... -
Page 10: Identification And Description Of The Grinder
Hold down holes Four 8mm holes set in a matrix in the corner flanges of the chassis to enable the grinder to be bolted down to the bench or a stand. www.axminster.co.uk... -
Page 11: Grinder Illustration And Parts Description
Grinder Illustration and parts Description... A X M I N S T E R W H I T E Water trough notches Eye shield /spark guard Water trough Grindstones Tool rest Gearbox Rubber plug stabilising foot Hold down holes ON/OFF switch 0800 371822 FREEPHONE... -
Page 12: Specific Safety Precautions For Grinding Machines
Specific Safety Precautions for Grinding Machines. A X M I N S T E R W H I T E 1. DO NOT operate your machine until it is completely assembled and installed according to the instructions. 2 . If you are not familiar with the operation of grinding machines obtain advice from your supervisor or instructor or another qualified person. -
Page 13: Changing The Dry Grinding Wheel
Changing the Dry Grinding Wheel... A X M I N S T E R W H I T E Ensure that the grinder is disconnected from the mains supply. Undo the nuts and bolts that secure the outer shell of the wheel guard to the inner shell. -
Page 14: Changing The Wet Grinding Wheel
Changing the Dry Grinding Wheel... A X M I N S T E R W H I T E Check that the spark guard and the tool rest are not touching the grindstone. Reconnect the grinder to the mains supply, give the grinder a 'short burst', by switching it on and off quickly. -
Page 15: Dressing A Stone
(A selection of stone dressing tools are available in the Axminster catalogue.) Switch the grinder on and allow it to run for at least one minute. Rest the dressing tool on the tool rest and advance it to the stone until it touches the maximum diameter;... - Page 16 Axminster Reference No:AWWSG Axminster Devon EX13 5PH UK A X M I N S T E R W H I T E FREEPHONE 0800 371822 www.axminster.co.uk...
