Code 107685
Original Instructions
AW200WSG
Wide Stone Bench Grinder
AT: 10/02/2022
BOOK VERSION: 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW200WSG and is the answer not in the manual?

Questions and answers

Summary of Contents for Axminster AW200WSG

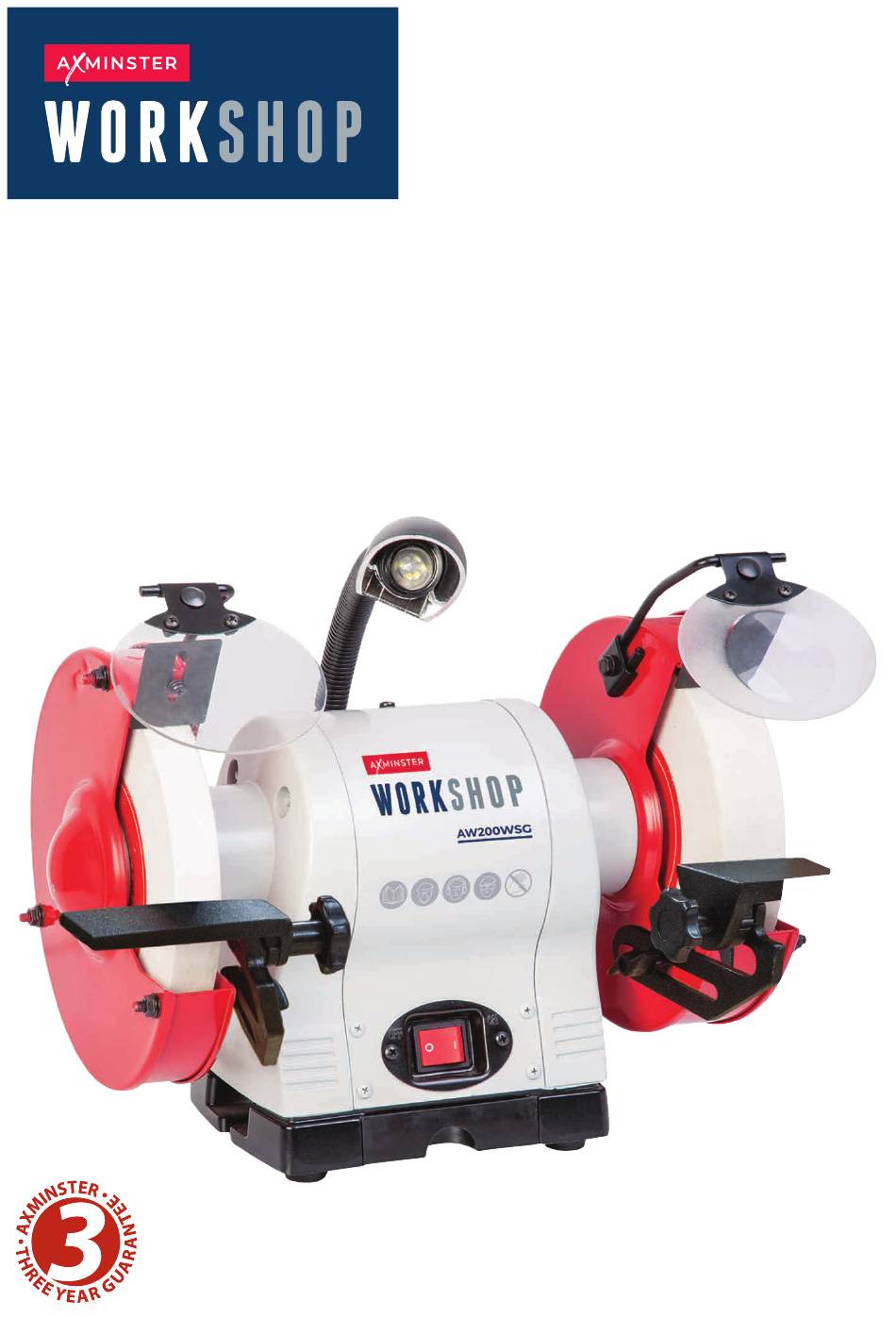

  • Page 1 Code 107685 Original Instructions AW200WSG Wide Stone Bench Grinder AT: 10/02/2022 BOOK VERSION: 6...
  • Page 2: Eu Declaration Of Conformity

    12-13 Wiring Diagram Notes EU DECLARATION OF CONFORMITY Cert No: HBG825HL EU Declaration of Conformity This machine complies with the following directives: Axminster Tool Centre Ltd Axminster Devon EX13 5PH UK 2006/42/EC EN 61000-3-3: 2013+A1: 2019 axminstertools.com 2014/30EU EN 55014-2: 2015...
  • Page 3: What's Included

    WHAT’S INCLUDED Quantity Item Part Model Number AW200WSG Wide Stone Bench Grinder Adjustable Tool Rests & Mounting Brackets Butterfly Knobs & Washers Tool Rest Clamping Knob & Washers Spark Guard Brackets with Screws/Washers Eye Shield Mounting Bars Mounting Bar Square Brackets with Bolts &...
  • Page 4: General Instructions For 230V Machines

    GENERAL INSTRUCTIONS FOR 230V MACHINES • Leave machine unplugged until work is about to The following will enable you to observe good working practices, keep yourself and fellow workers safe and commence. maintain your tools and equipment in good working order. •...
  • Page 5 SPECIFIC SAFETY PRECAUTIONS FOR GRINDING MACHINES 11. Hot sparks are a hazard! Never carry out grinding 16. Avoid awkward hand positions where a sudden slip operations near flammable gas or liquid. could cause the hands to come into contact with a grinding wheel, wire brush etc.
  • Page 6 ASSEMBLY Nip-up the eye sheild Adjust the spark guard so its just above the stone Magnifying glass...
  • Page 7: Illustration And Parts Description

    ILLUSTRATION AND PARTS DESCRIPTION Eye shield guard with integrated Flexible Light magnifying glass Eye shield guard Grinding stone guard Motor 40mm 80 grit Grinding stone Adjustable Tool rest Mounting bracket 25mm 60 grit Tool rest clamping knob Grinding stone Tool rest Housing slot for butterfly clamp bolting the grinder...
  • Page 8: Specification

    SPECIFICATION Code 107685 Model AW200WSG Rating Workshop Power 550W 230V 50Hz 1Ph Duty Cycle S1 370W Speed 2,980 rpm Wheel Diameter 200 mm Wheel Width 25mm & 40 mm Grit 25mm 60 grit & 40mm 80 grit Bore 15.88 mm...
  • Page 9 SETTING UP THE GRINDER Carry out final checks e.g. check the gap between the tool rest and the stone is correct, check the stone is not badly CONNECT THE GRINDER TO THE deformed (rounded edges, grooved face, etc; unless you MAINS SUPPLY.
  • Page 10 CHANGING THE GRINDING STONE Step 5-6 Step 8-9-10 Remove plate flange and carefully remove the stone. Clean the interior stone guard, inspect the new stone for cracks and damage to either the front face or the edges before fitting. Carefully slide the stone on the shaft, replace the plate flange, the nut and tighten against the rotation of the stone.
  • Page 11 DRESSING THE STONE/CHANGING THE LIGHT BULB CONNECT THE GRINDER CONNECT THE GRINDER TO THE MAINS SUPPLY. TO THE MAINS SUPPLY. Switch the grinder on and allow it to run for at least one Switch on the grinder, wait until it reaches full speed and minute.
  • Page 12 EXPLODED DIAGRAMS/LISTS AW200WSG Bench Grinder 27.07.2020...
  • Page 13 EXPLODED DIAGRAMS/LISTS Specification Right spark deflector Hex flange nut Flat Eyeshield Left shield cover plate Eyeshild with Magnifier Hex nut Type I M16 Left Right Wheel WA 100# 200x40x 15.88mm Wheel plate flange Phillips screw M4x10 Left Wheel WA 60# 200x25x 15.88mm Wahser...
  • Page 14: Wiring Diagram

    WIRING DIAGRAM...
  • Page 15 NOTES...
  • Page 16 The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material. By law they must be collected and recycled separately. Axminster Tools, Axminster Devon EX13 5PH axminstertools.com...
