Axiom VP150 Owner's Manual

The Axiom Warranty
All our speaker models; towers, bookshelves, surrounds, centers, subwoofers and
all our amplifiers; subwoofer and multichannel amplifiers are warrantied against
manufacturer's defects for 5 years.
AXIOM CANADA INC. warrants this audio loudspeaker system (the "Product")
to be free from original manufacturing defects in materials and workmanship for
five years from date of purchase from an authorized Axiom dealer. This warranty
extends only to the original consumer purchaser. AXIOM CANADA INC. does
not warrant goods used in commercial or industrial applications. This warranty
does not cover any expenses incurred in any removal or re-installation of the
product.
If the product should prove so defective within the warranty period, return the
product by prepaid delivery to AXIOM CANADA INC., along with the original
sales invoice or other proof of purchase, which establishes eligibility for warranty
service. AXIOM CANADA INC. will, at its option, replace or repair the product
free of charge and return the product by prepaid delivery. This warranty does not
apply to any product, which has been damaged, misused, altered or repaired by
anyone other than an AXIOM CANADA INC. authorized service facility.
Any implied warranties including fitness for use and merchantability are limited
in duration to the period of the express warranties set forth above, and no person
is authorized to assume for Axiom Canada Inc. any other liability in connection
with the sale of the product. Axiom Canada Inc. expressly disclaims liability for
any incidental and consequential damages caused by the product. The remedies
provided under this warranty are exclusive and in lieu of all others.
This warranty gives specific legal rights. In addition, there may be other legal
rights arising from the sale of the product, which vary from province to province
or state to state. Some provinces / states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may
not apply in some areas.
Step-by-step instructions on configuring your on-wall speakers.
Location: / Positionnement:
Product Links:
http://axiomaudio.com/VP150-onwall-speakers.html
Model:
Max Rec. Amp Power:
Min Amp Power:
Frequency Response +/- 3dB:
Frequency Response + 3dB/- 9dB:
Impedance:
SPL In Room 1w/1m:
SPL Anechoic 1w/1m:
X-Over:
Tweeter:
Woofer:
On-wall Dimensions HWD mm:
On-wall Dimensions HWD inches:
Weight kg each:
Weight lbs each:
Rev: 1.0 v1

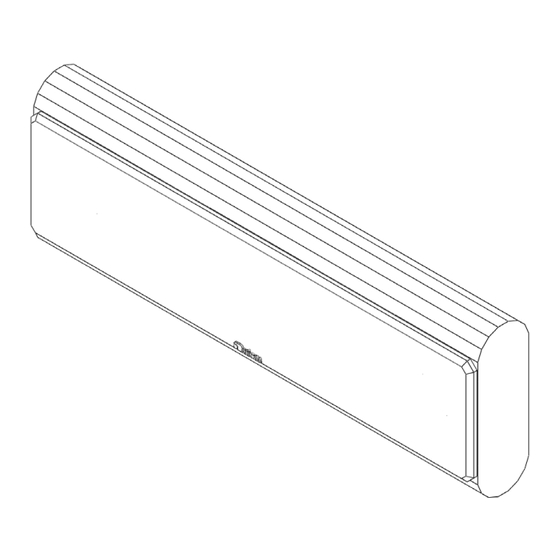

VP150 On-Wall Speakers
Owners Manual
This is by far the most important step before we even
begin the installation. Mount the VP150 On-Wall center
channel speaker above or below your TV screen, properly
centered and no farther than 2 feet away. The center speaker
anchors movie dialog and vocals at the TV screen, so keep
it reasonably close to the screen. Avoid corner locations if
possible. Please make sure the speaker wire has a clear path
from your stereo or A/V receiver to the placement of your
speaker.
The Axiom On-Wall Speakers are designed to be installed
on a common stud wall, preferably fastened directly to a
stud. If this is not possible the use of a suitable wall anchor
(not included) will be required.
VP150 On-Wall
400 Watts Puissance maximale admissible :
10 Watts Puissance minimale :
95Hz – 22 kHz Réponse en freq. +/- 3dB :
60Hz – 22 kHz Réponse en freq. + 3dB/- 9dB :
8 Ohms Impédance :
95 dB Sensibilité en salle 1w/1m :
91 dB Sensibilité Anéchoïque 1w/1m :
2.7 kHz
Dual 1" Titanium Transducteur d'aigu :
Tripple 5.25" Aluminum Transducteur de grave :
225 x 677 x 91 Dimensions en saillie HLP mm :
8.85 x 26.65 x 3.6 Dimensions en saillie HLP inches :
8 kg Poids en Kilo chacun :
17.6 lbs Poids en lb chacun :
Modèle :
Filtre :
