Axiom VP150 Owner's Manual

The Axiom Warranty
All our speaker models; towers, bookshelves, surrounds, centers, subwoofers and
all our amplifiers; subwoofer and multichannel amplifiers are warrantied against
manufacturer's defects for 5 years.
AXIOM CANADA INC. warrants this audio loudspeaker system (the "Product")
to be free from original manufacturing defects in materials and workmanship for
five years from date of purchase from an authorized Axiom dealer. This warranty
extends only to the original consumer purchaser. AXIOM CANADA INC. does
not warrant goods used in commercial or industrial applications. This warranty
does not cover any expenses incurred in any removal or re-installation of the
product.
If the product should prove so defective within the warranty period, return the
product by prepaid delivery to AXIOM CANADA INC., along with the original
sales invoice or other proof of purchase, which establishes eligibility for warranty
service. AXIOM CANADA INC. will, at its option, replace or repair the product
free of charge and return the product by prepaid delivery. This warranty does not
apply to any product, which has been damaged, misused, altered or repaired by
anyone other than an AXIOM CANADA INC. authorized service facility.
Any implied warranties including fitness for use and merchantability are limited
in duration to the period of the express warranties set forth above, and no person
is authorized to assume for Axiom Canada Inc. any other liability in connection
with the sale of the product. Axiom Canada Inc. expressly disclaims liability for
any incidental and consequential damages caused by the product. The remedies
provided under this warranty are exclusive and in lieu of all others.
This warranty gives specific legal rights. In addition, there may be other legal
rights arising from the sale of the product, which vary from province to province
or state to state. Some provinces / states do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion may
not apply in some areas.
Step-by-step instructions on configuring your center channel speakers.
Instructions, étape par étape, pour la mise en fonction de vos enceintes centrales.
1. Placement / 1. Positionnement
Ideally, locate your center-channel speaker on top of your TV. The center's
internal magnetic shielding will prevent interference with the set's picture
tube. Attach the small, adhesive plastic feet to the undersurface of the center-
channel to prevent vibration from rattling the TV cabinet. You can also put
your center on a shelf beneath the TV or above it--but no more than 12 to 18
inches higher than the set, otherwise the sound will seem dislocated from the
on-screen action. This also applies if you decide to mount the center-channel
on the wall behind your TV. Don't shove the center-channel to the back of a
shelf--it will degrade the sound. Position it so the center's front edge is flush
with or slightly protruding beyond the shelf 's edge.
+++
Idéalement, installez votre enceinte de canal central au dessus de votre téléviseur.
Le blindage magnétique interne de l' e nceinte préviendra l'interférence avec l' é cran
cathodique. Fixez les petits pieds auto-adhésifs à la surface inférieure de la enceinte
pour l' e mpêcher de vibrer sur le meuble du téléviseur. Vous pouvez également installer
votre enceinte sur une tablette en dessous ou au dessus du téléviseur mais jamais à
plus de 30 à 45 cm de l' é cran, sinon le son semblera disloqué de l'image et de l' a ction.
Prenez les mêmes précautions si vous installez l' enceinte au mur derrière votre télé.
Ne poussez pas votre enceinte à l' a rrière d'une étagère, ceci dégradera le son. Placez-la
de façon à ce que sa face avant soit au ras de la tablette ou la dépasse légèrement.
Model: VP100
Enclosure: Acoustic Suspension
Max Amp Power: 200 Watts
Min Amp Power: 10 Watts
Freq Resp +/-3dB (Hz): 95-22 kHz
Freq Resp +3dB- 9dB (Hz): 65-22 kHz
Impedance (Ohms): 8 Ohms
SPL in Room 1w/1m (dB): 93 dB
SPL Anechoic 1w/1m (dB): 89 dB
X-Over 2.7 kHz
Tweeter: Single 1"
Woofer: Dual 5.25"
Dimens. H W D (inches): 7.5" x 17" x 7.5"
Dimens. H W D (mm): 191 x 432 x 191
Weight kg each: 6.39 kg
Weight lbs each: 14.1 lbs

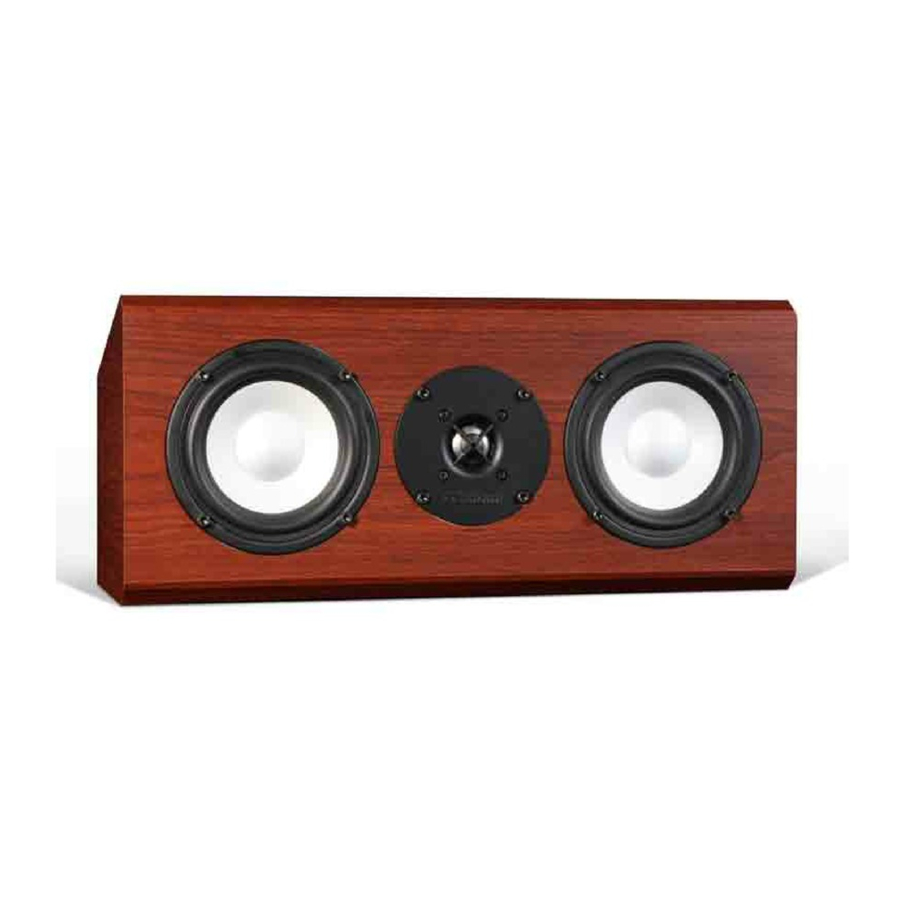

VP100, VP150 Center Channel Speakers
Owners Manual
VP150 Modèle :
Acoustic Suspension Clôture :
400 Watts Puissance maximale admissible :
10 Watts Puissance minimale :
85-22 kHz Réponse en freq. +/- 3dB :
50-22 kHz Réponse en freq. + 3dB/- 9dB :
6 Ohms Impédance :
95 dB Sensibilité en salle 1w/1m :
91 dB Sensibilité Anéchoïque 1w/1m :
2.7 kHz
Dual 1" Transducteur d'aigu :
Triple 5.25" Transducteur de grave :
7.5" x 27.5" x 7.5" Dimensions HLP pouces :
191 x 699 x 191 Dimensions HLP mm :
9.88 kg Poids en Kilo chacun :
21.8 lbs Poids en lb chacun :
Filtre :
