Hotpoint RGB508PEAAD Dimension Manual

RGB508PEAAD—30" Free-Standing Gas Range

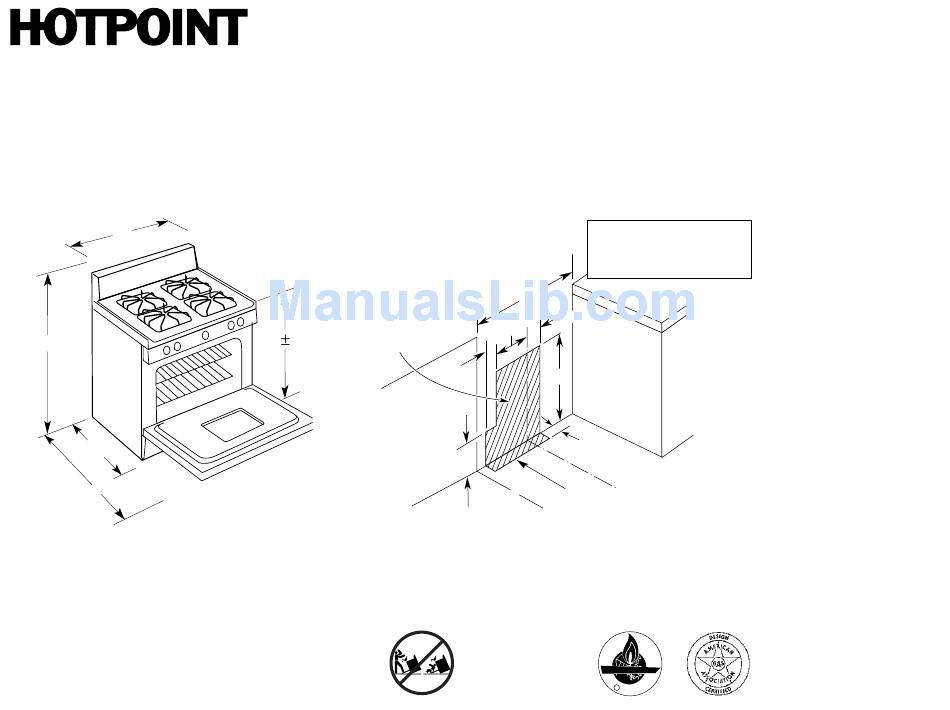

Dimensions (in inches)
30
39-7/8
26-1/12
46-3/8
Created 2/98
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
36 1/4
*Depth including handle
30
2-1/2
8
4
24
9
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
For answers to your Monogram, ® GE Profile
Performance Series, ™ GE Profile, ™ and
GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Recommended common area
for gas outlet and electrical
outlet for GE free-standing gas
range models
2
CANADIAN GAS ASSOCIATION
R APPROVED
Electrical Rating: 120V, 60Hz, 5A
Installation Information:
Dimensions shown here are the
same as those shown on the
installation instructions at the
time this sheet was printed. Before
proceeding with installation, see
your Hotpoint supplier for latest
detailed preparation and installation
instructions or install from the
instructions packed with each unit.
Optional gas range
accessory drip pans:
(Available at additional cost)
To order these accessory drip pans,
call toll-free 800-626-2002.
