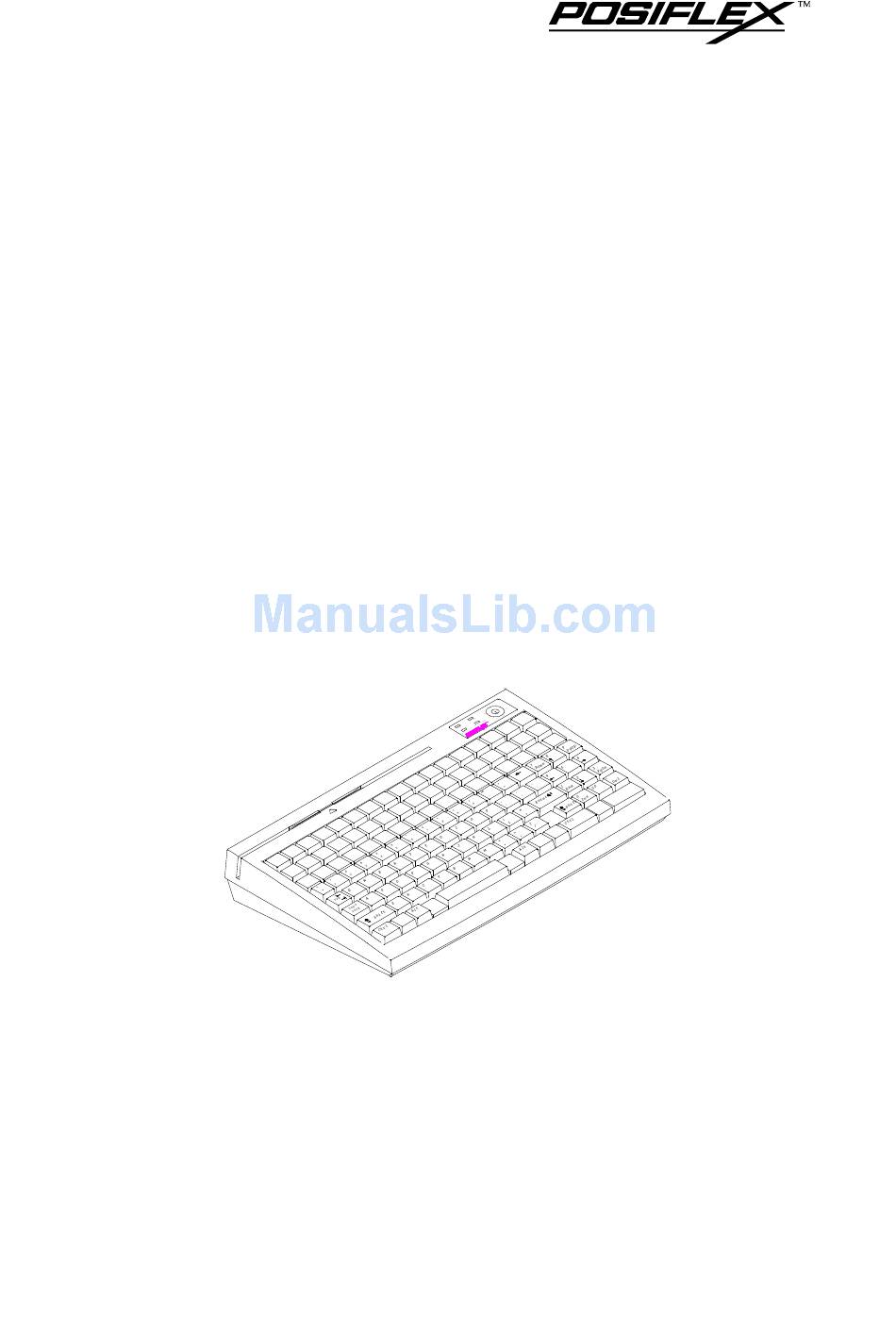

KB3200 SERIES
136 - KEY QWERTY
PROGRAMMABLE KEYBOARD
USER'S MANUAL
Rev. : A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KB3200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX KB3200 Series

  • Page 1 KB3200 SERIES 136 - KEY QWERTY PROGRAMMABLE KEYBOARD USER’S MANUAL Rev. : A1...
  • Page 2 SOME IMPORTANT NOTES FCC NOTES This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS OVERVIEW ........1 - 1 SCOPE .
  • Page 4 APPLICATION ........5 - 1 KEYBOARD CONSTRUCTION .
  • Page 5: Overview

    Windows95/98/NT environment. This series possesses a 6 position control key which is capable of sending answer back codes according to the position of the key. The KB3200 series provides in the lower part a “QWERTY” keyboard that resembles the standard PC keyboard and at the top a matrix of 3 by 17 locations for freely programming purpose.
  • Page 6: Model Numbers

    In the above, “xx” represent one of the following 2-character codes which means the variety in the QWERTY portion for different languages. Language French Germany Italy Netherlands Portugal Spain Sweden/Finland United Kingdom United States NOTE: PS/II or PC interface selectable. 1 - 2 KB3200 Series User’s Manual...
  • Page 7: Accessories

    JIS I track 2 + JIS II) / pc Double key / pc Blank key / pc Single key top & key cap / set Off centered single key top & key cap / set KB3200 Series User’s Manual 1 - 3...
  • Page 9: Standard Layouts

    Lock ° ² & é " ¦ è ç à @ £ ¨ Entré e ù ñ § > ñ < Inser Suppr ÿ ÿ ÿ ÿ Ctrl Alt Gr Ctrl S/TL TTL 2 - 1 KB3200 Series User’s Manual...
  • Page 10: Germany

    C. ITALY Lock ¦ " £ & ì é Invio è ç ° § ò à ù Fine ñ > ñ < Canc ÿ ÿ ÿ ÿ Ctrl Alt Gr Ctrl S/TL TTL KB3200 Series User’s Manual 2 - 2...
  • Page 11: Netherlands

    E. PORTUGAL Lock ¦ " & » £ § « Home PgUp ¨ ´ Ç ª Caps Lock º PgDn ñ > ñ < ÿ ÿ ÿ ÿ Ctrl Alt Gr Ctrl S/TL TTL 2 - 3 KB3200 Series User’s Manual...
  • Page 12: Spain

    G. SWEDEN/FINLAND Lock ½ " & § £ 4 Home PgUp ´ Å ¨ Ö Ä Caps Lock PgDn ñ > ñ < ¦ ÿ ÿ ÿ ÿ Ctrl Alt Gr Ctrl S/TL TTL KB3200 Series User’s Manual 2 - 4...
  • Page 13: United Kingdom

    ÿ ÿ Ctrl Alt Gr Ctrl S/TL TTL I. UNITED STATES Lock & Home PgUp ¦ " Caps Enter Lock PgDn < > ñ Shift ñShift ÿ ÿ ÿ ÿ Ctrl Ctrl S/TL TTL 2 - 5 KB3200 Series User’s Manual...
  • Page 15: Installation

    CCBLA-055-1. Connect the mini DIN 6 male plug of the cable to the PS2 or a compatible system. Do all the rest just like that for PC. Monitor PC or PS2 PC or PS2 KB CCBLA-055-2 or KB-3200 CCBLA-055-1 KB3200 Series User’s Manual 3 - 1...
  • Page 16: Utility Installation

    A new programming utility that is referred to as “KBW.EXE” in this manual is developed particularly for the Windows 95/98/NT environment. If the KB3200 series is delivered with the new programming utility, please copy the files to a suitable subdirectory of the system and double click the “Setup”...
  • Page 17: Programming The Keyboard

    “hot key programming” mode. Please note that the 2 programmable keys in the numerical keypad in KB3200 series and the answer back codes of the position control key in both series are not covered by the “hot key programming” feature.
  • Page 18: Enter "Hot Key Programming" Mode

    “hot key” and identify the key on the programmable keyboard to be programmed. The so-called “hot key” is a special combination of keys pressed on the standard PC or PS-2 keyboard. In KB3200 series, the “hot key” is defined as pressing and holding the left “Alt” key while pressing the “PRT SC”...
  • Page 19: Exit "Hot Key Programming" Mode

    If the user pressed the “Esc” key to abort “hot key programming”, the programmable keyboard will also give three beeps immediately as a response to signify the abort. KB3200 Series User’s Manual 4 - 3...
  • Page 20: Programming Utility (Kbm.exe)

    2. ANSWER BACK CODE Programming the answer back codes of the 6 position electronic key-lock is also very easy as they are included in the keyboard 4 - 4 KB3200 Series User’s Manual...
  • Page 21: Hardware Limitation

    C. PROGRAMMING UTILITY (KBW.EXE) This utility programs the programmable keyboard as KBM.EXE does but using Windows application interface. Please use on - line help to program the programmable keyboard. KB3200 Series User’s Manual 4 - 5...
  • Page 22: Shortcut Utility (Rwm.exe)

    In other words, transferring a file generated from other programmable keyboard to KB3200 series could mess up the data format inside KB3200 series, and vice versa. 4 - 6 KB3200 Series User’s Manual...
  • Page 23: Application

    CAPS LOCK L2 L2 L1 L1 LP LP LO LO The top left LED is for MSR reading indication, the top right LED is the power-on indicator, the bottom right LED is the Cap-Lock KB3200 Series User’s Manual 5 - 1...
  • Page 24: Position Key-Lock

    PC or PS/2 keyboard will have both the correspondent LED’s on KB3200 series and PC or PS/2 keyboard change status accordingly. Yet, if it is the “Caps Lock” key or the “Num Lock” key on KB3200 series pressed, only the correspondent LED on KB3200 series will change while the LED on PC or PS/2 keyboard remain unchanged.
  • Page 25: Push Key Switch Area

    17 x 3 matrix part remains in matrix and page dependent while the lower part is organized in “QWERTY” format. This “QWERTY” format portion, occupying an area of 5 whole rows, is country dependent and KB3200 Series User’s Manual 5 - 3...
  • Page 26: Key Top Replacement

    12 keys of numerical keypad and 2 programmable keys. So there will never be a total number of the maximum possible 136 keys for any country throughout the KB3200 series. The numerical keypad portion will function as arrow keys and “Home”, “End”, “Ins”...
  • Page 27 “vertically” aligned or at the right of the key coverage area when the double key is “horizontally” aligned. The location for the key- definition to be programmed for the double key shall then be the bottom or the right position accordingly. KB3200 Series User’s Manual 5 - 5...
  • Page 28: Magnetic Stripe Reader Slot

    MSR indicator will then turn back to green when the MSR is again ready to read. MSR INDICATOR ISO card POWER ON LED Magnetic stripe toward user MSR SLOT READER HEAD MARK Reading magnetic stripe cards of ISO standard 5 - 6 KB3200 Series User’s Manual...
  • Page 29: Preloaded Pattern

    The user may reprogram these keys and create a label to stick on such keys and cover it with the transparent key cap if he/she KB3200 Series User’s Manual 5 - 7...
  • Page 30: Win Nt Application

    To program the Posiflex programmable keyboard in Win NT, the customer is suggested to visit our web site: http://www.posiflex.com.tw or go directly to the download page as above for a most up-to-date software. 5 - 8 KB3200 Series User’s Manual...
  • Page 31: Specifications

    PREPRINTED KEYS: Qwerty keys + Numeric keys + Basic function keys KEY CAP: 18 x 18 mm transparent PROGRAMMABILITY: METHOD: Software programming under DOS, WINDOWS 3.1, WIN95, WIN98 or WIN NT without TSR program KB3200 Series User’s Manual 6 - 1...
  • Page 32: Position Control Key

    OUTPUT INTERFACE: 6 pin DIN female connector: connects to host computer 5 pin DIN female connector: connects input keyboard or Daisy Chain devices 6 pin mini DIN female connector: connects input keyboard 6 - 2 KB3200 Series User’s Manual...
  • Page 33: Magnetic Stripe Reader

    Manual Card feed direction Bi-direction Uni-direction Read / write function Read only Read only Card feed speed 5 to 55 inches/sec. 100 ~ 1200 mm/sec. Error rate Less than 0.5% Less than 0.1% KB3200 Series User’s Manual 6 - 3...
  • Page 34: Card Data Format

    Relative humidity....90%, non-condensing Vibration......… 4G Shock........…. 40G RELIABILITY INFORMATION: Push key switch: .....…. 15,000,000 strokes min. Memory: ......…. 100 years min. MSR head life: ....…. 300,000 passes min. APPLICABLE CONFORMITY: CE, FCC CLASS A 6 - 4 KB3200 Series User’s Manual...
