NOTICE
The manufacturer of the POS cash drawer makes no representation or warranties, either
expressed or implied, by or with respect to anything in this manual, and shall not be
liable for any implied warranties of fitness for a particular purpose or for any indirect,
special or consequential damages. Information in this document is subject to change
without notice and does not represent a commitment on the part of the manufacturer.
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used in accordance with the instructions manual, may cause interference to
radio communications. It has been tested and found to comply with the limits for a Class
A digital device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.

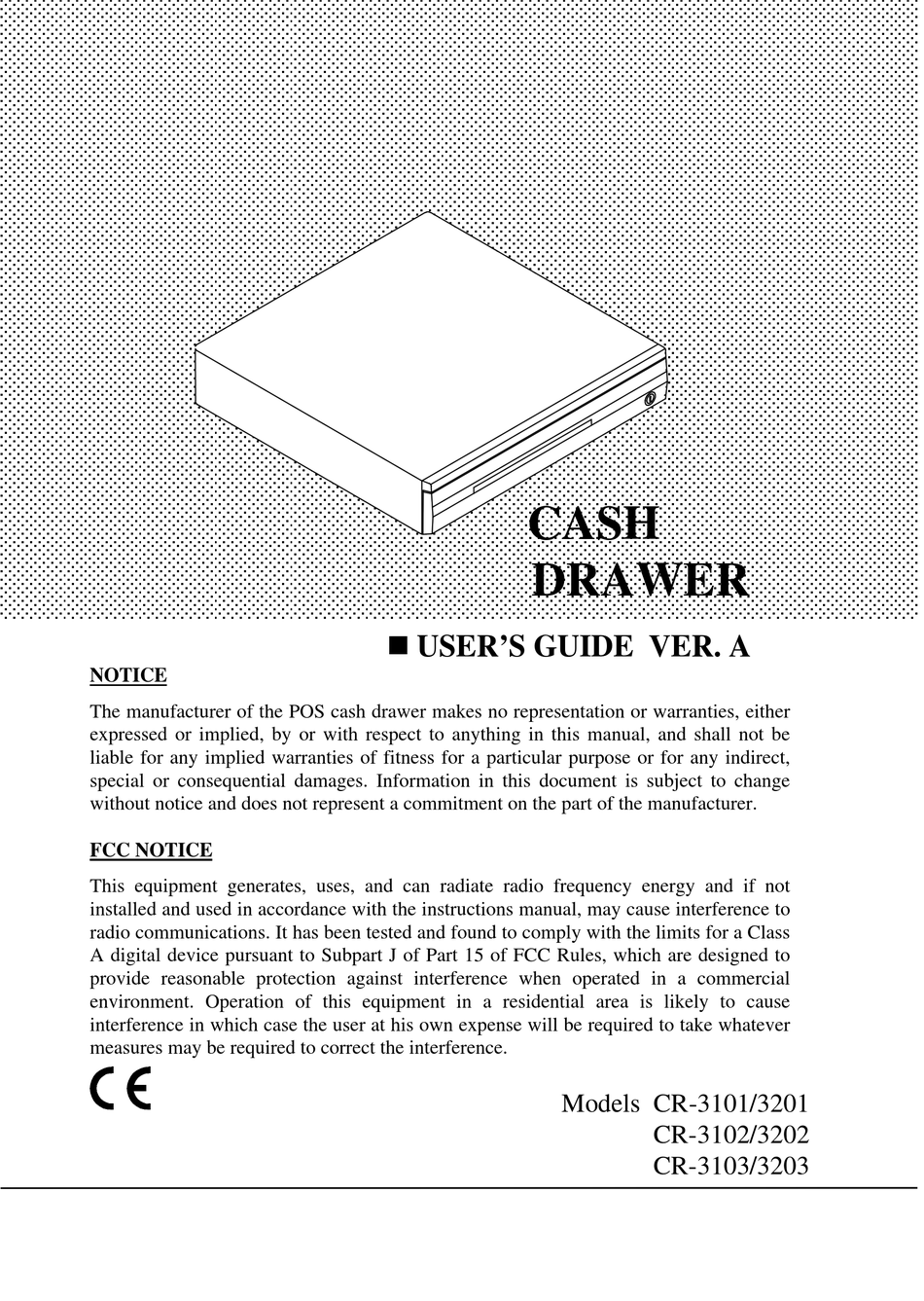

CASH
DRAWER
n USER'S GUIDE VER. A
Models CR-3101/3201
CR-3102/3202
CR-3103/3203
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX CR-3101
Summary of Contents for POSIFLEX CR-3101
-
Page 1: Cash Drawer
Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference. Models CR-3101/3201 CR-3102/3202 CR-3103/3203... -
Page 2: Table Of Contents
TABLE OF CONTENTS FEATURES ........1 CARTON CONTENTS ......1 INTERFACE DESCRIPTION . -
Page 3: Features
3. Key 2 pcs, there is a key serial no. sticker on the cash drawer bottom plate. If user lost the key he/she can order the key according to this number. 4. Separator of bill compartment 4 pcs (for CR-3101~3) / 5pcs (for CR-3201~3), separator of coin compartment 6 pcs. - Page 4 01 to 1F. Note that other parallel devices such as printer can be connected to the same parallel port, as long as this preset security code makes no influence to the other parallel devices. Model CR-3101~3/3201~3 Keylock Operation: : Permanent lock the drawer. : Open the drawer by the key.
-
Page 5: Specifications
Peak Current 1 Ampere POWER ADAPTER Input Voltage 120VAC, +10% -20% 50 -60Hz Output Voltage 12VAC at 1A SERIAL INPUT (CR-3101/3201, CR-3102/3202) Data Format Standard RS232C Protocol (see Figure3) No handshake Baud rate: 150,300,600,1200,2400,4800,9600*, 19,200 Parity: none*, even, or odd Data bits: 7 or 8* Security Code(CR-3102/3202) 1-255;... -
Page 6: Connector Pin-Out
CONNECTOR PIN-OUT (See Fig 4) P1 (DB25M) - Parallel Input From Computer 1 - -Strobe 2 - Data 0 9 - Data 7 10 - -ACK 11 - Busy 12 - Paper End 13 - Select 14 - Auto Feed 15 - Error 16 - -Initialize Printer 17 - -Select Input... - Page 7 Pin25 pair can be used as the input to solenoid in CR- 3100/CR-3200 without the need of the power adapter by connecting this pair to POS printer output, then CR-3101~3/CR- 3201~3 will work the same way as CR-3100/CR-3200. P4 (DB9F) - Pass-through Serial Output 2 - Transmit data to computer, connected to Pin3 of P3.
-
Page 8: Controller Board Jumper
P6 (DB9M) - Serial Input from computer 1 - DCD (connected to pins 4 & 6) 2 - Receive data from computer, connected to Pin2 of P3. 3 - Transmit data to computer, connected to Pin3 of P3. 4 - DTR (connected to pins 1 & 6) 5 - Ground 6 - DSR (connected to pins 1 &... - Page 13 Figure 5...
- Page 14 Figure 6...
