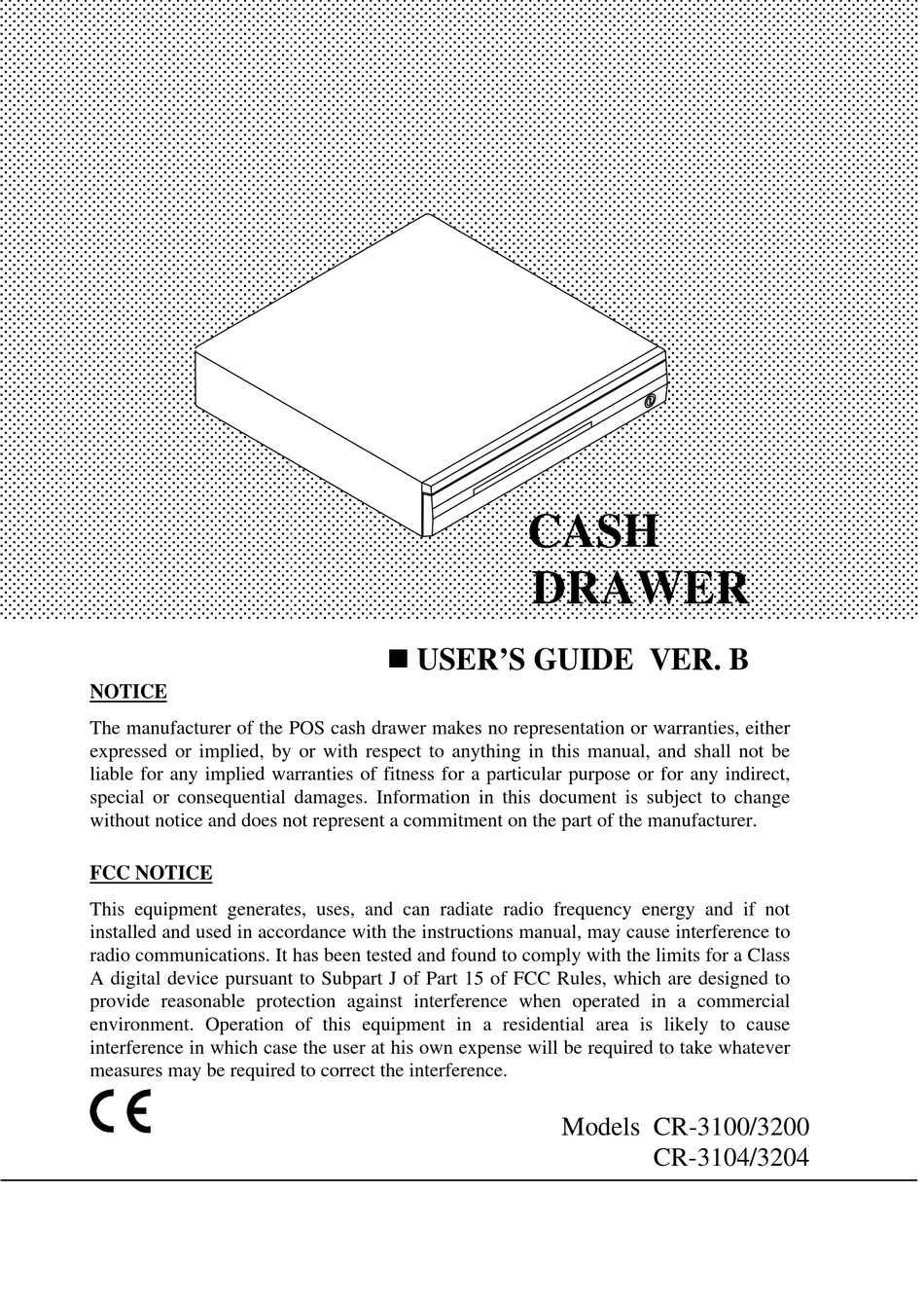

CASH
DRAWER
n USER'S GUIDE VER. B
NOTICE
The manufacturer of the POS cash drawer makes no representation or warranties, either
expressed or implied, by or with respect to anything in this manual, and shall not be
liable for any implied warranties of fitness for a particular purpose or for any indirect,
special or consequential damages. Information in this document is subject to change
without notice and does not represent a commitment on the part of the manufacturer.
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and used in accordance with the instructions manual, may cause interference to
radio communications. It has been tested and found to comply with the limits for a Class
A digital device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial
environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.

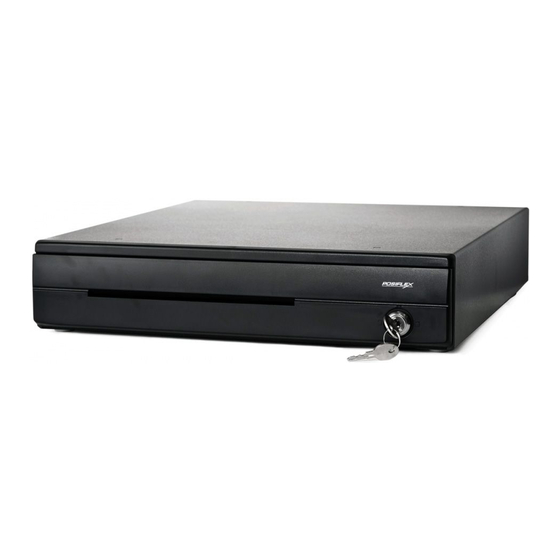

Models CR-3100/3200
CR-3104/3204
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX CR-3100
Summary of Contents for POSIFLEX CR-3100
-
Page 1: Cash Drawer
Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference. Models CR-3100/3200 CR-3104/3204... - Page 2 The tray cover TC3100 for CR3100/3104 and TC3200 for CR3200/3204 are optional. SPECIFICATIONS MECHANICAL: Dimensions: 500 (W) x 420 (D) x 90 (H) mm (CR-3200/3204) 400 (W) x 410 (D) x 85 (H) mm (CR-3100/3104) Weight: 9.0Kgs (CR-3200/3204) and 6.7Kgs (CR-3100/3104) ELECTRICAL: INPUT TO SOLENOID...
- Page 3 to open the drawer. This required special command is determined by the type of the POS printer used. For example, the special command for STAR POS printer and Posiflex POS system CR port is the bell command (07H). Model CR-3104/3204 with Dedicated Interface: Whenever the POS application software transmits any kind of data to the computer COM1 (or COM2) port, the drawer will be opened.
- Page 4 Posiflex POS system 8P Telephone Jack 8P Telephone Plug or POS Printer 6P Telephone Plug Fig 1 Fig 2 Fig 3...
