This page displays the running procedure for the IP address monitored and refreshes the data
in an interval of several seconds. The IP address listed here is configured in Bandwidth
Management. You have to enable IP bandwidth limit and IP session limit before invoke Data
Flow Monitor. If not, a notification dialog box will appear to remind you enabling it.

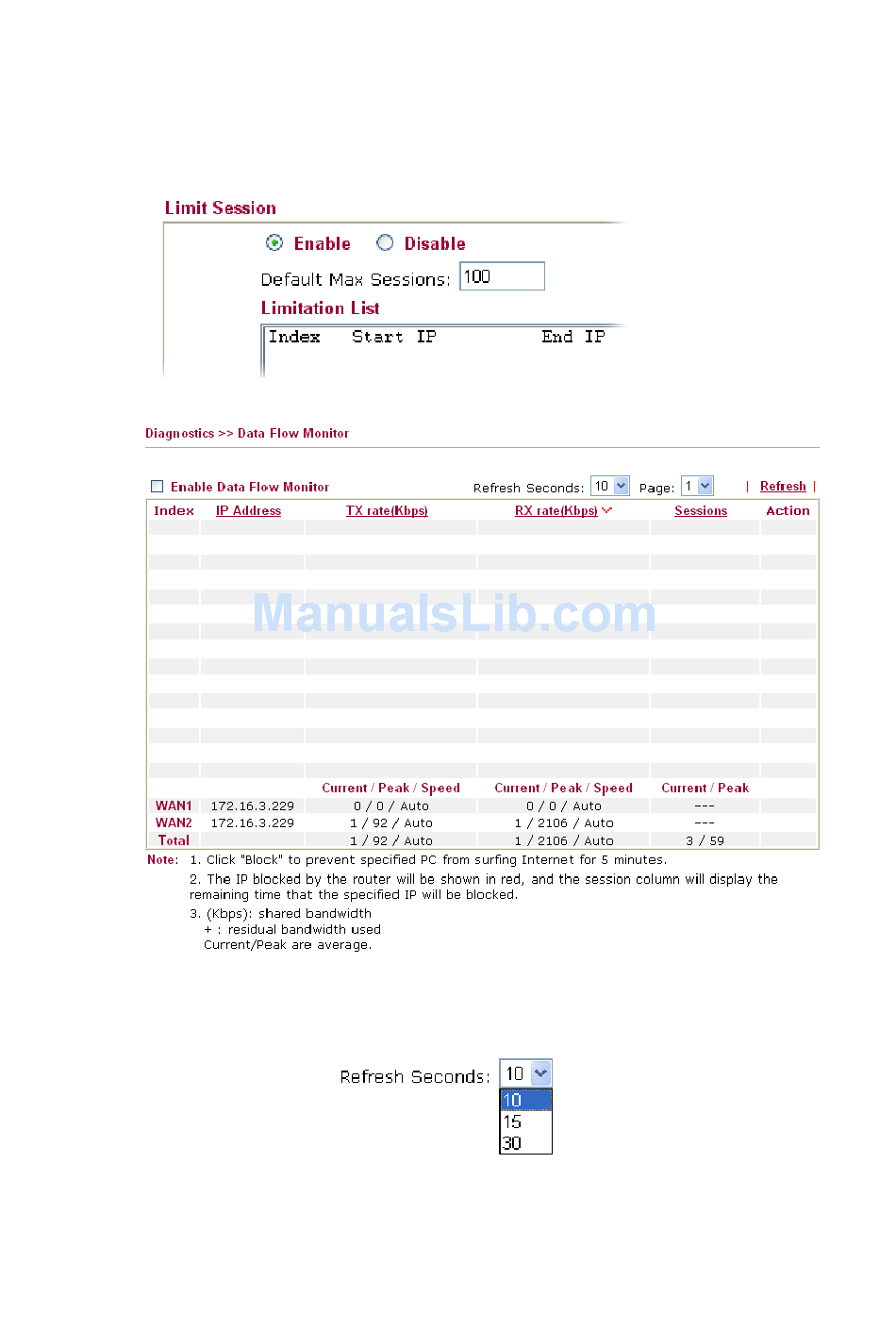

Click Diagnostics and click Data Flow Monitor to open the web page.
Enable Data Flow
Monitor
Refresh Seconds
Refresh
Index
IP Address
192
l
o
w
M
o
n
i
t
o
r
l
o
w
M
o
n
i
t
o
r
Check this box to enable this function.
Use the drop down list to choose the time interval of refreshing
data flow that will be done by the system automatically.
Click this link to refresh this page manually.
Display the number of the data flow.
Display the IP address of the monitored device.
Vigor2950 Series User's Guide
