Page 1: Table Of Contents
Gate / Expander • page 7 Compressor • page 8 Limiter • page 8 Linking OPERATION page 9 IF A FAULT DEVELOPS page 10 CONTACTING DRAWMER page 10 TECHNICAL SPECIFICATION page 11 BLOCK DIAGRAM page 12 SESSION RECALL SHEET page 13... - Page 2 Drawmer’s entire liability under any theory of liability will be to, at Drawmer’s discretion, repair or replace the product without charge, or, if not possible, to refund the purchase price to you. This warranty is not transferable. It applies only to the original purchaser of the product.
-
Page 3: Safety Considerations
MX30 OPERATORS’ MANUAL DRAWMER MX30 Dual Gated Compressor SAFETY CONSIDERATIONS CAUTION - MAINS FUSE TO REDUCE THE RISK OF FIRE REPLACE THE MAINS FUSE ONLY WITH THE SAME TYPE, WHICH MUST BE A CLASS 3, 250 VOLT, TIME DELAY TYPE, RATED AT 32mA WHERE THE MAINS INPUT IS SET TO 230 VOLTS AC. -
Page 4: Introduction

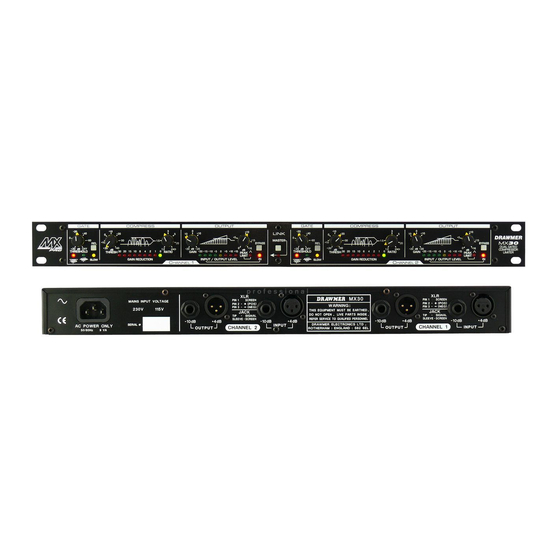

MX30 OPERATORS’ MANUAL INTRODUCTION The MX30 is a dual channel gate and compressor-limiter designed to fulfil the needs of professional studio and live sound applications. It may be used in balanced systems at +4dBu operating levels, or unbalanced at -10dBu. In order to maximise flexibility while simplifying set up and operation, several new design concepts have been incorporated. -
Page 5: Installation
MX30 OPERATORS’ MANUAL INSTALLATION The MX30 is designed for standard 19" rack mounting and occupies 1U of rack space. Avoid mounting the unit directly above power amplifiers or power supplies that radiate significant amounts of heat. Fibre or plastic washers may be used to prevent the front panel becoming marked by the mounting bolts. - Page 6 MX30 OPERATORS’ MANUAL AUDIO CONNECTION DIAGRAM...
-
Page 7: Power Connection
MX30 OPERATORS’ MANUAL POWER CONNECTION If, for some reason, the unit is to be operated at a mains input voltage which is different to that as supplied, the following procedure must be carried out by a qualified technical engineer. Disconnect the unit from the mains. Using a number 1 size pozidrive screwdriver, remove the seven self-tapping screws that retain the top cover. -
Page 8: Control Descriptions
MX30 OPERATORS’ MANUAL CONTROL DESCRIPTION Both channels of the MX30 are identical and may be used completely independently or linked for stereo operation. In the linked mode, only the left-hand channel controls are functional and serve as master controls, though the channel bypass switches remain independent. -
Page 9: Compressor
MX30 OPERATORS’ MANUAL COM PRESSOR Threshold: This control determines the input level above which gain reduction will be applied and may be set in the range -40 to +20dB. Soft knee compression takes place for signals exceeding the threshold level by up to 10dB above which level, conventional 'ratio' compression is applied. -
Page 10: Limiter
MX30 OPERATORS’ MANUAL PEAK LIM ITER Level: Sets an absolute limit to the level that the output signal will not be permitted to exceed. This limiter is very fast acting enabling it to control any peaks without audible distortion. If the output signal is so high as to cause the limiter to operate for more than 20mS, the system gain is automatically reduced to bring the signal back within range. -
Page 11: Operation
MX30 OPERATORS’ MANUAL OPERATION The unit should be connected in line with the signal to be processed via suitable insert points. Ensure that the insert send and return level on your console matches the MX30 input/output sockets that are being used. For single channel use, each channel may be considered as completely independent and set up accordingly. -
Page 12: If A Fault Develops
Drawmer Electronics Ltd., will be pleased to answer all application questions to enhance your usage of this equipment. Please address correspondence to: Drawmer (Technical Help line) : Coleman St.: Parkgate : Rotherham : S62 6EL : UK or, E-mail us on : tech@drawmer.com... -
Page 13: Technical Specification
MX30 OPERATORS’ MANUAL TECHNICAL SPECIFICATIONS (Measurements taken using +4dBu balanced XLR input where applicable) INPUT IMPEDANCE 20KOhm (bal), 4KOhm (unbal) MAXIMUM INPUT LEVEL +21dBu OUTPUT IMPEDANCE 50 Ohm (bal), 100 Ohm (unbal) MAXIMUM OUTPUT LEVEL +20dBu BANDWIDTH <10Hz to 36KHz -1dB CROSSTALK @ 10KHz 94dB... -
Page 14: Block Diagram
MX30 OPERATORS’ MANUAL BLOCK DIAGRAM... -
Page 15: Session Recall Sheet
MX30 OPERATORS’ MANUAL...
