Viking SL-2 Product Manual

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
LED Strobe and/or Beacon Visual Indicator with
Programmable Brightness and Flash Patterns

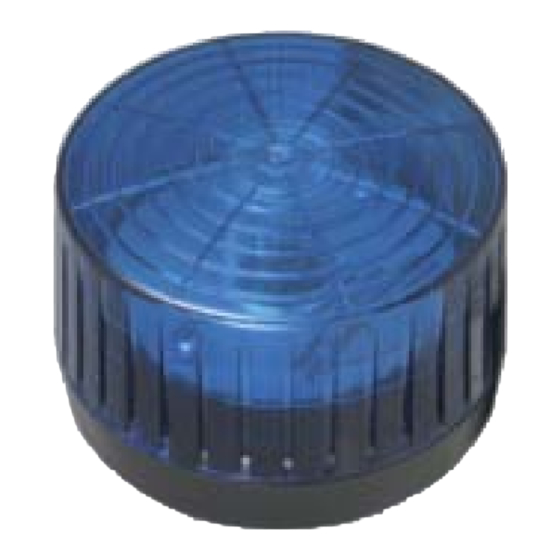

The SL-2 is a 360° LED Strobe and/or Beacon vi-
sual indicator. LED's not only are more efficient
and last longer than standard flash tubes but are
also immune to shock and vibration. The LED's are
internally positioned to allow a 360° viewing angle
when the unit is mounted vertically and a 120°
viewing angle when side mounted.
The SL-2 can be user programmed to output 4 dif-
ferent flash patterns: Single Flash, Double Flash,
Quad Flash or Flicker Flash. The unit can also be
programmed as a continuous-On Beacon only,
Strobe only or Beacon/Strobe allowing a lower in-
tensity beacon to remain on and a high intensity
strobe to be activated by a contact closure. 6 dif-
ferent brightness levels are also programmable for
the Beacon and the Strobe. All programming is
stored in non-volatile memory so you won't lose
the programming when the unit is powered down,
allowing you to program units prior to installation.
The SL-2 is designed for indoor applications and
comes standard with a Blue shatter resistant poly-
carbonate lens. Optional Red, Amber and Clear
lenses are sold separately (go to www.vikingelec-
tronics.com and click on spare parts). Unit surface

Features

• High output long life LED technology
• Four programmable flash patterns:
- Single Flash
- Double Flash
- Quad flash
- Flicker Flash
• 6 programmable beacon and strobe brightness
settings
• Immune to shock and vibration
• Low current draw
• Shatter resistant polycarbonate lens
• SL-2-EWP is designed to meet IP66 ingress
Protection Rating (see DOD# 859)
www.vikingelectronics.com
Information: (715) 386-8861
PRODUCT MANUAL
mounts to wall, post, panel, 4" electrical box or wet
location electrical box round lamp holder cover.
The model SL-2-EWP adds Enhanced Weather
Protection (EWP) for outdoor installations where
the unit is exposed to precipitation or condensa-
tion. EWP products feature foam rubber gaskets
and boots, sealed connections, gel-filled butt con-
nectors, as well as urethane or thermal plastic pot-
ted circuit boards
field-adjustable trim pots and DIP switches for easy
on-site programming. For more information, see
DOD# 859.
Applications
• High noise level areas where visual status is
required
• Signal personnel of equipment malfunctions
• Warn personnel they are entering a restricted
area
Specifications
Power: 10- 15VDC 0.90 Amp (Peak), 0.15 Amp (Avg) @
15VDC. Note: Power supply not included. The SL-2 is
compatible with Viking model PS-2 12VDC power supply.
Maximum Wire Run Length with CAT-5 and PS-2
Power Supply: 3 wires = 100 ft, 6 wires = 300 ft
Dimensions: 112mm diameter x 70mm (4.41" diameter
x 2.76")
Shipping Weight: 0.25 kg (0.6 lbs)
Environmental: -40°C to 60°C (-40°F to 140°F)
Strobe Flash Rate: 60 flashes per minute (default) see
Strobe Flash Patterns page 4
Humidity - SL-2: 5% to 95% non-condensing
Humidity - SL-2-EWP: up to 100% condensing
Connections: Three 9" (22.9 cm) long leads, 26 AWG
SL-2/EWP
LED Strobe/Beacon
Visual Indicator
January 15, 2013
with internally sealed,
