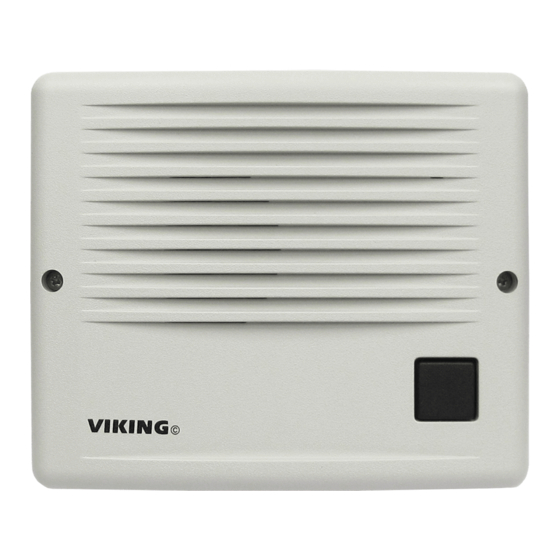

Add Loud Ringing to Any Analog Phone
The SR-1 will generate loud ringing from an analog
ringing line or from a dry contact closure. There
are 4 different ringing sounds to choose from.
Loudness is easily adjusted with a volume control
and test button.
The SR-1's unique sounding rings are useful for
employees that often work away from their desks,
allowing them to instantly recognize when their
phone is ringing. A second set of contact inputs will
trigger a door chime (doorbell) sound. This can be
used to notify that a door has opened or used as a
door bell or push for assistance button.
The SR-1 comes complete with a power supply
and connections for an optional external speaker.
Features
• Loud ringing from an analog line
• Loud ringing from a dry contact closure
• Choose one of four ringing sounds:
- Electronic warble (traditional loud ringer)
- Double gong (two identical "gong" tones)
- Quadruple chime (four descending chime tones)
- Electronic Bell
• Adjustable volume control
• Provides a door chime tone for either a door
bell, a door open sensor, or a "Push for
Assistance" button
• Test button for setting volume
• External 8 Ohm speaker can be added
• Power supply included
www.vikingelectronics.com
Information: (715) 386-8861
PRODUCT MANUAL
Applications
• Single line loud ringing
• Night bell ringing
• Business/offices/small warehouses
• Floating employee
• "Push Button for Assistance" chime
• Push button doorbell
Specifications
Power: 120V AC/13.8V AC 1.25A, UL listed
adapter provided
Dimensions: 140mm x 115mm x 40mm (5.5" x
4.5" x 1.6")
Shipping Weight: 0.75 kg (1.5 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with
5% to 95% noncondensing humidity
Maximum Sound Pressure: 90 db @ 1 meter
(nominal)
105 db with added 25AE Paging Horn
Connections: 6 cage clamp screw terminals
SR-1
Single Line Loud Ringer
and Door Chime
August 30, 2016
