Moog Videolarm PurgeDome Specification

Explosion-proof camera system

Advertisement

Quick Links

HOUSING
ENCLOSURES_

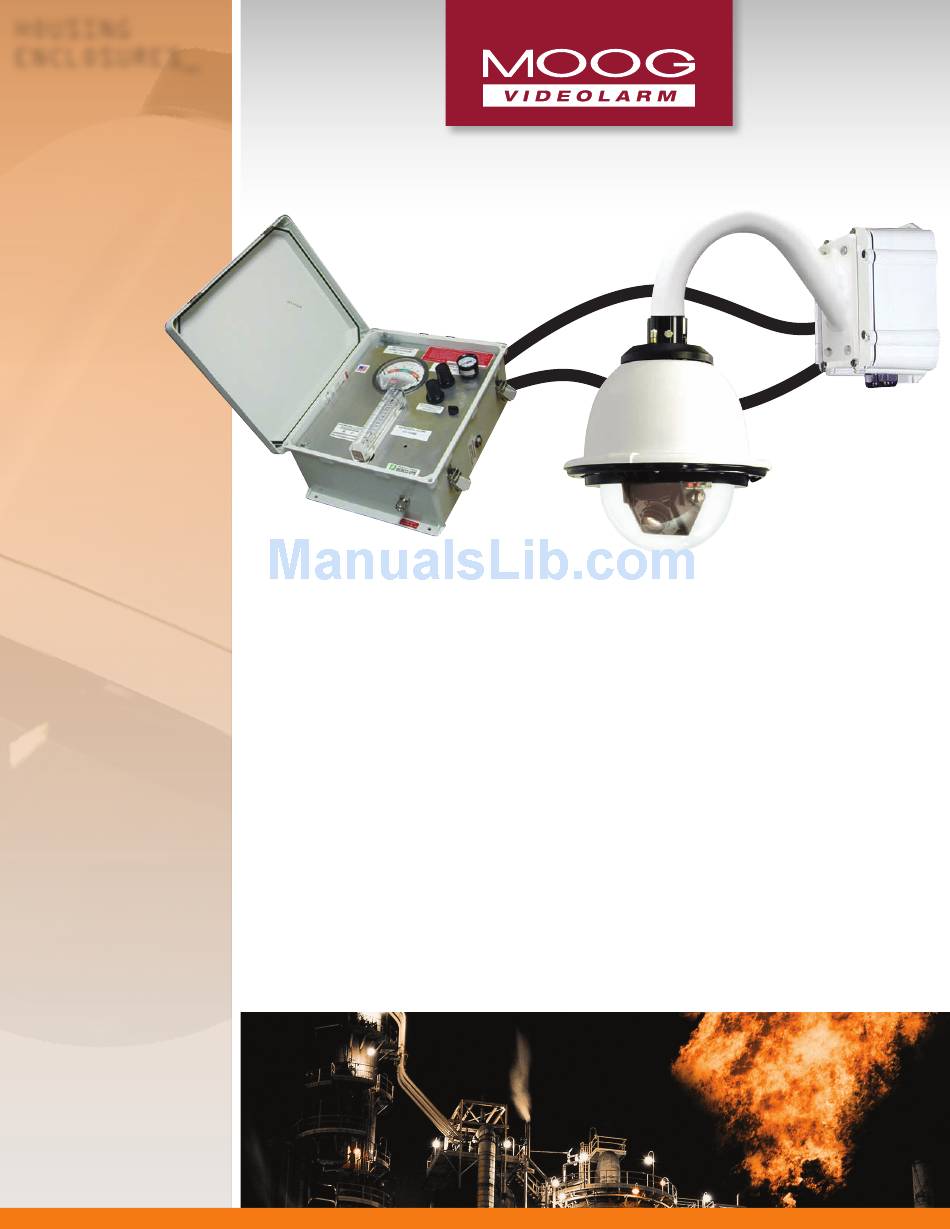

PurgeDome™
Explosion-Proof Camera System
UL Class 1- Division 2 Certified, Moog Videolarm's PurgeDome Explosion Proof camera system provides a highly effective solution for
monitoring activity in explosive/hazardous environments. Operating on a supply of compressed air or inert gas, the PurgeDome system
regulates the pressure within the sealed camera enclosure, protecting it from extremely hazardous fumes or gases, which could ignite in
a violent explosion.
Key Features
UL approved for hazardous locations
(Class 1/Division 2, Class 2/Division 2)
Certified to UL NFPA 496 Purged and Pressurized
enclosures for electrical equipment and to UL NFPA 60950-1
for information technology equipment
36x optical zoom and 12x digital zoom (432x Total)
Auto focus, high-res integrated day/night IR sensitive
camera/lens package
IP66 Rating for water and dust ingress
360° continuous rotation
16 user selectable privacy zones
Integrated power box, 110/220Vac input
Filter-regulator with pressure gauge provides clean, protective
gas to the enclosure
Differential pressure gauge indicates internal pressure

Advertisement

loading
Need help?

Need help?

Do you have a question about the PurgeDome and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moog Videolarm PurgeDome

  • Page 1 Explosion-Proof Camera System UL Class 1- Division 2 Certified, Moog Videolarm’s PurgeDome Explosion Proof camera system provides a highly effective solution for monitoring activity in explosive/hazardous environments. Operating on a supply of compressed air or inert gas, the PurgeDome system regulates the pressure within the sealed camera enclosure, protecting it from extremely hazardous fumes or gases, which could ignite in a violent explosion.
  • Page 2: Specifications

    120°/sec Certifications and Ratings Positioning: +/-.05 degree Construction: Aluminum Gearing: Belt-driven, ¼” wide Bearings: Precision ball bearings, and permanently lubricated bushings UL Listed WEEE IP67 Rating Moog Videolarm, 2525 Park Central Boulevard, Decatur, GA 30035 USA 1.800.554.1124 www.videolarm.com 500-683 12-12-2011...

This manual is also suitable for:

Purgedome pdw7cn-9Purgedome pdw7cs-9
