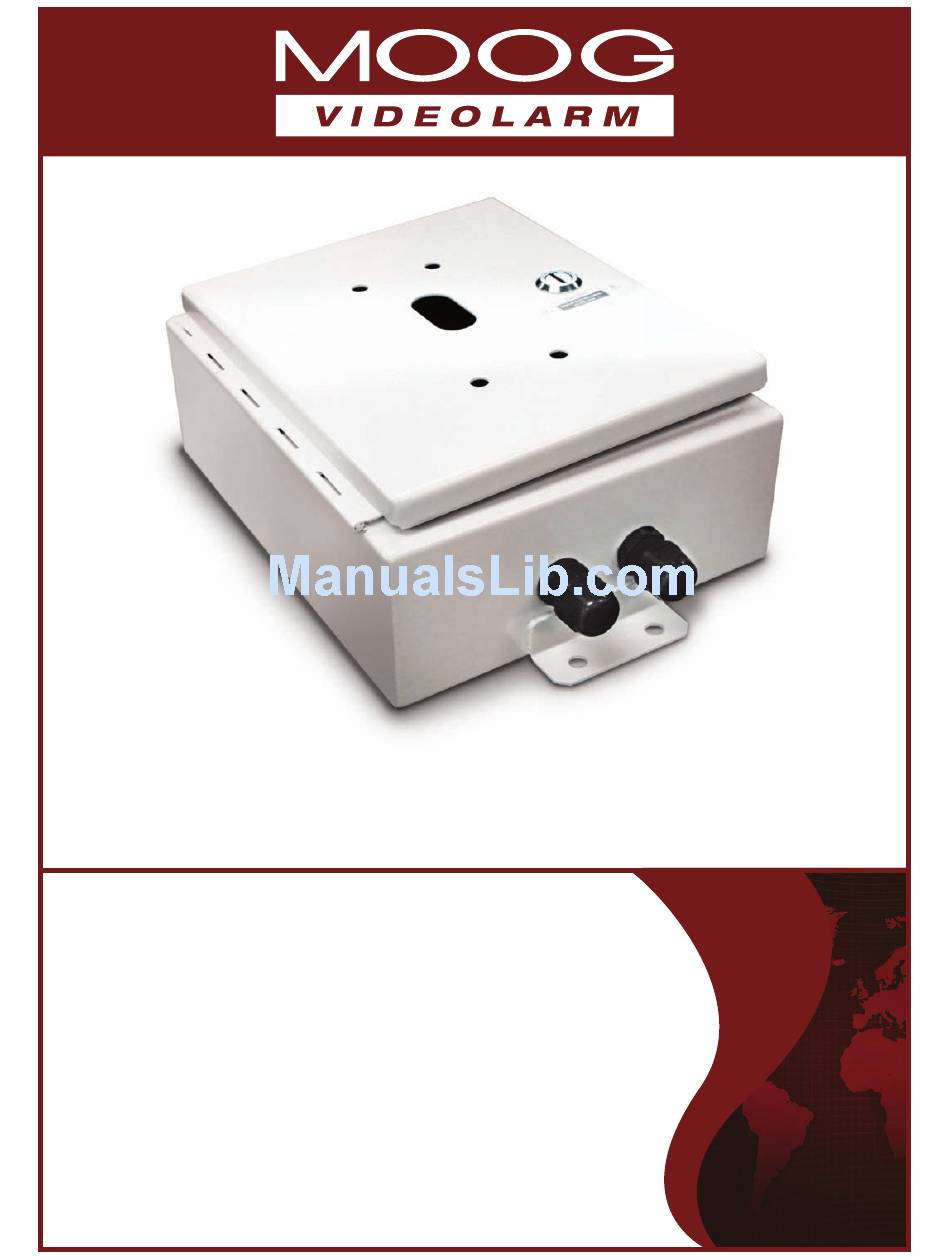

© 2012, Moog Videolarm, Inc. All Rights Reserved
L I B E R T Y ™ S e r i e s
City-Wide Surveillance
Installation and Operation Instructions for the following models:
PB26LG
Liberty Series wireless power box that includes a cellular router and
power supply. 110/220VAC input. Designed to work with Moog
Videolarm's IP Ready Series of IP camera housings.
Before attempting to connect or operate this product, please read these instructions completely.
www.moogvideolarm.com
81-IN5459
10-23-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm LIBERTY SERIES
Summary of Contents for Moog Videolarm LIBERTY SERIES
- Page 1 © 2012, Moog Videolarm, Inc. All Rights Reserved L I B E R T Y ™ S e r i e s City-Wide Surveillance www.moogvideolarm.com Installation and Operation Instructions for the following models: PB26LG Liberty Series wireless power box that includes a cellular router and power supply. 110/220VAC input. Designed to work with Moog Videolarm’s IP Ready Series of IP camera housings. 81-IN5459 10-23-2012 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings. - Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Speci Cations
Electrical Speci cations Contents of Box PB26LG Input Power: 110 VAC/220VAC 1A/.5A Power Consumption: 1Amp (120 Watts) at 120 VAC Power Output: 96 VA at 24 VAC 52 Watts English Heater/Blower 32 Watts Camera Power An all pole main switch with a contact of at least 3mm in each pole shall be incorporated in the electrical installation of the building. - Page 5 Power Feed Locations: Pendant mount location Liquid tight strain relief for main power Liquid tight plug for optional power / antenna Liquid tight modem cover 3G - 4G units Liquid tight security latch...
-
Page 6: Wall Mounting
POLE MOUNTING WALL MOUNTING Step One: Attach the pole clips to the mounting Attach unit securely with (4) ⅜” bolts. tabs as shown. Use hardware provided. • Paso uno: Ate los clips del poste a las lengüetas del montaje • Ate la unidad con seguridad con (4) pernos del ⅜ los”. como se muestra. -
Page 7: Pendant Mounting
PENDANT MOUNTING Wall Mount Gasket Conduit Fittings This is the assembled unit with the housing The wall mount bracket must be attached and conduit. using the gasket as shown. • Ésta es la unidad montada con la cubierta • El soporte del montaje de la pared se debe atar usando la junta como se muestra. - Page 8 Remove barrier cover. • Quite la cubierta de la barrera. • Enlevez la couverture de barrière. • Entfernen Sie Sperrenabdeckung. • Remova a tampa da barreira. • Rimuova la copertura della barriera. o della vista dell'unità. Remove barrier cover 1. Move the 115//240VAC selector switch (3) to the desired position 2.
- Page 9 3G/4G Camera Prep Assign your camera the static TCP/IP address of Connect to your camera with a laptop or pc 192.168.1.50 with a subnet mask of 255.255.255.0 and a gateway of 192.168.1.1. • Conecte con su cámara con un ordenador portátil o •...
- Page 10 Connecting to the WiFI network allows a connection to the admin interface on the address http://192.168.1.1 as well as local access to the camera on address http://192.168.1.50:12345. The username for the admin interace is root with a password of admin. Some users may require WiFi access to the unit as well.
- Page 11 SUPPORT FOR 3G/4G CARDS: The PB26LG can support cards up to 5.25” x 1.45” x .5” ( L x W x D ) in size. Some cards may have intermittent service operating at temperatures above (122°F). MODEM - INSTALL Use the provided velcro to mount and secure the USB modem. •...
- Page 12 INPUT FOR CAMERA 24VAC POWER FOR CAAMERA AND HOUSING 120VAC INPUT ALARM INPUT FOR IP RESET Connect down and camera power to this connector green wire and yellow wire are for housing heater and blower. Red/black and orange/black are for camera power. Because it is 24VAC. It is not polarity sensative. •...
- Page 13 Connect network camera to network cable. • Conecte la cámara de red con el cable de la red. • Reliez l'appareil-photo de réseau au câble de réseau. • Schließen Sie Netzkamera an Netzkabel an. • Conecte a câmera de rede ao cabo da rede.
-
Page 14: Replacement Parts
RP70LF3VR3 120/240V 50-60 Hz LINE FILTER RPSPPA405 15A PARALLEL SURGE PROTECTOR RP110IPR01 IP RESET RP76VL2007 4G POWER AND CONNECTION BOARD ASSEMBLY RP70VL3727 BOARD SHIELD, LIBERTY SERIES RP76RCNEX1 MOBILE ROUTER RP71BLEH220 BLOWER, 115VAC 60mm RP30VL3736 BLOWER BRACKET RP96GK3745 MODEM LID GASKET... -
Page 15: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assured that Moog Videolarm stands behind its products by offering impressive 3 Year and 5 Year warranties, depending on the product purchased. See full warranty details at www.moogvideolarm.com/technical-support/warranty-plan/ Register Your Products Online Please take a few moments to register your purchase via the Online Product Registration Form at: www.moogvideolarm.com/technical-support/product-registration Register your recent Moog Videolarm purchase and benefit from the following: • Simple and Trouble-Free RMA process • Receive product updates, and special promotion • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
